Description

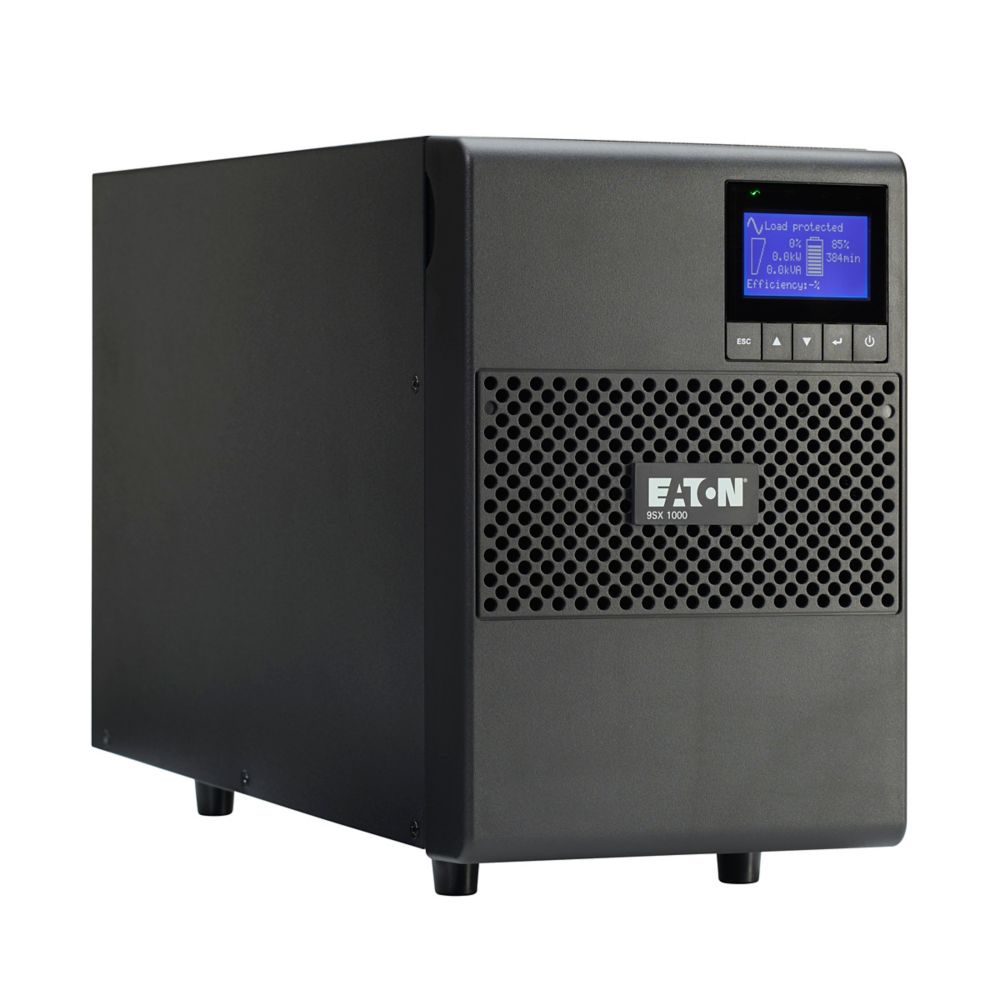

The Eaton 9SX1000 is a high-performance online double-conversion UPS designed to provide reliable power protection for servers, network equipment, and IT infrastructure. With a 1000VA (900W) capacity, this UPS ensures pure sine wave output and continuous, clean power even during fluctuations or outages.
Featuring ABM technology to extend battery service life by up to 50%, hot-swappable batteries, and optional extended battery modules, it delivers superior uptime and easy maintenance. Its graphical LCD interface simplifies monitoring, while optional network, Modbus, or relay communication cards offer flexible management options. Ideal for commercial and IT environments, the 9SX1000 offers Energy Star certification, cULus listing, and OSHPD seismic compliance—ensuring dependable, high-efficiency performance.
| Category | Specification |
|---|---|
| Model | Eaton 9SX1000 |
| Topology | Online / Double-conversion |
| Form Factor | Tower (Free-standing) |
| VA Rating | 1000 VA |
| Wattage | 900 W |
| Power Factor | 0.9 |
| Output Voltage | 120V nominal (selectable 100/110/120/125V) |
| Output Frequency | 50/60 Hz |
| Output Receptacles | (6) NEMA 5-15R |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 100/110/120/125V |
| Input Cord Length | 8 ft |
| Input Frequency Range | 60 Hz: 50–70 Hz / 50 Hz: 40–60 Hz |
| Input Power Factor | > 0.99 |
| Output Waveform | True sine wave |
| Efficiency (Max Load) | 90.81% |
| Battery Management | ABM 3-stage charging; extends life by 50% |

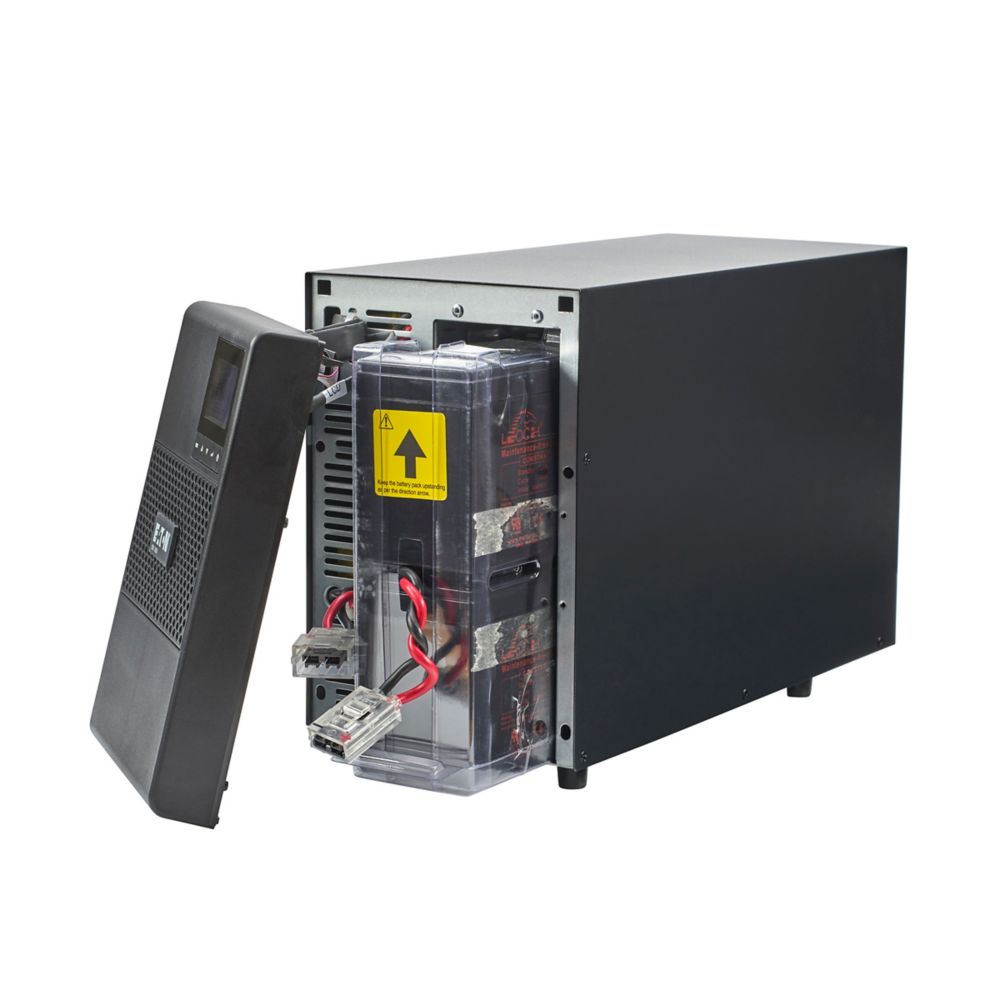

| Battery Type | Hot-swappable internal batteries; supports EBMs |

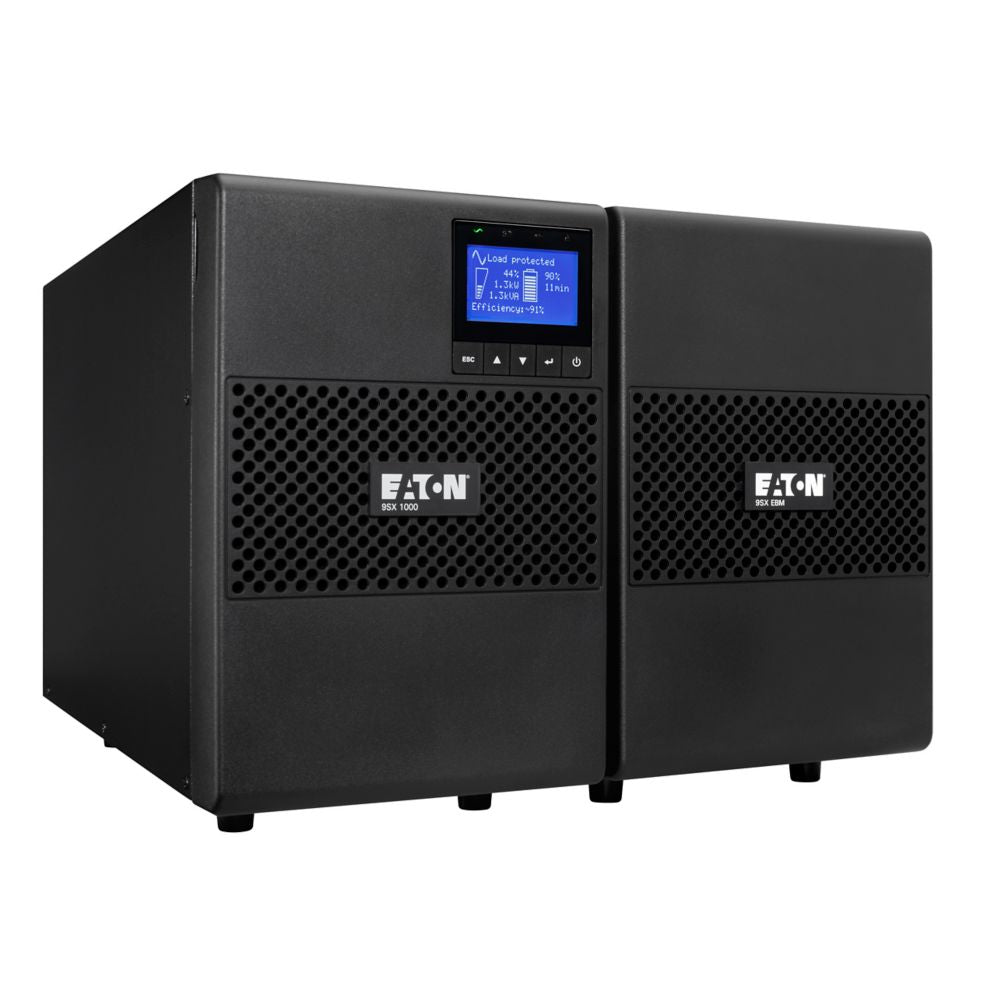

| Extended Battery Capability | Yes |
| Bypass | Internal automatic bypass |

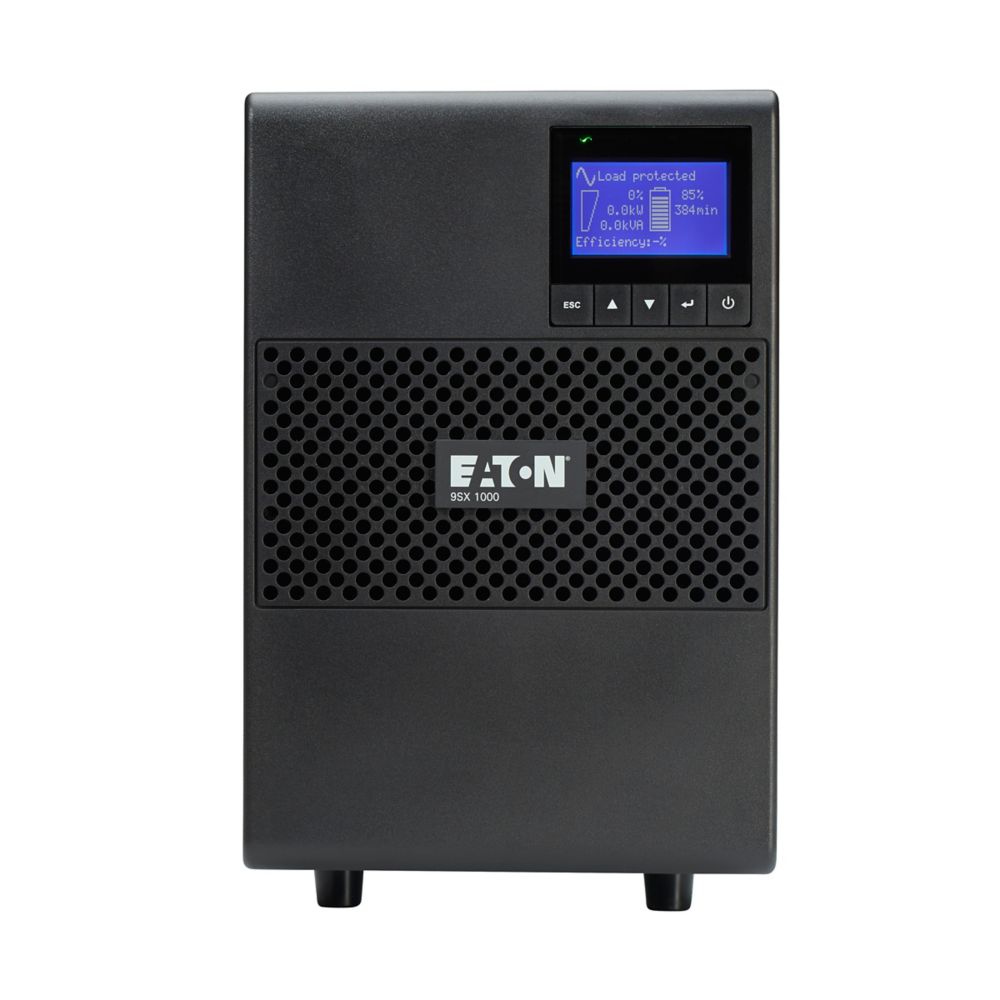

| User Interface | 5-button graphical LCD display |

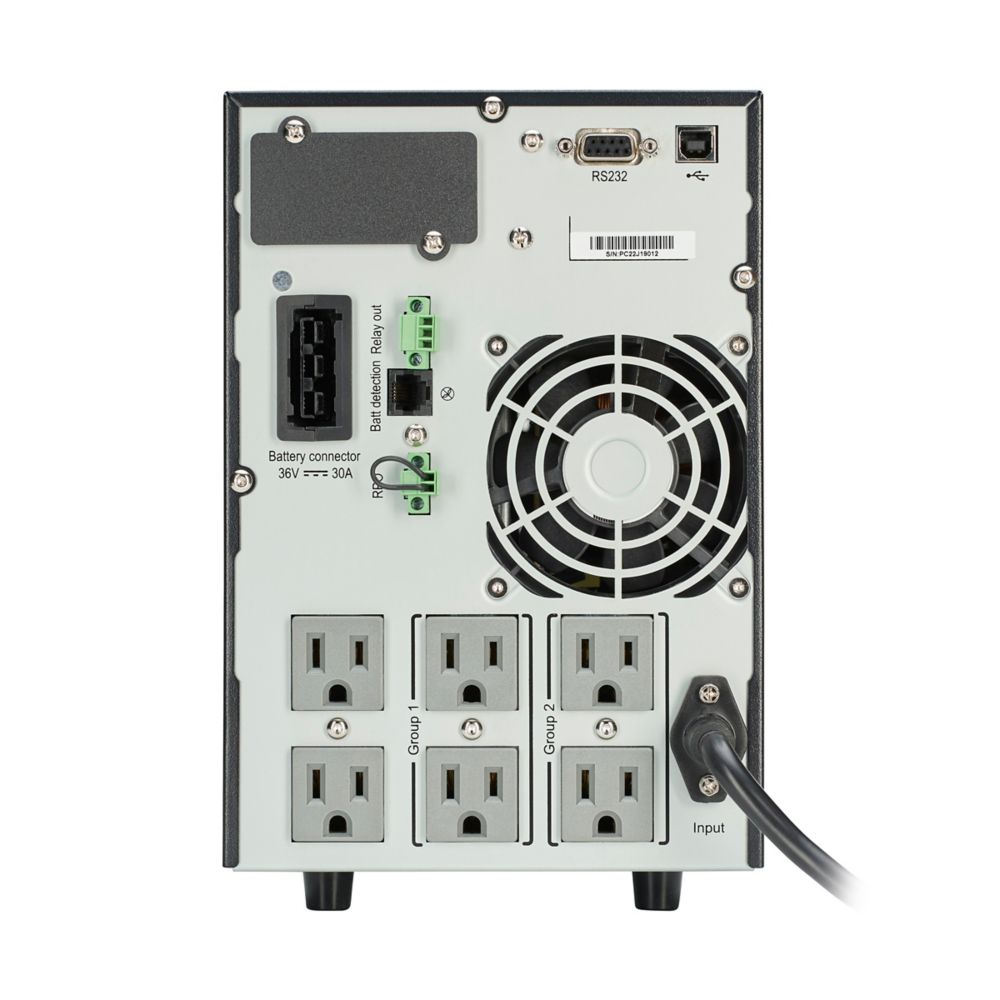

| Communication Ports | USB, RS-232, RPO/ROO terminal, relay terminal |
| Expansion Slot | (1) MiniSlot for optional cards (NETWORK-M3, INDGW-M2, RELAY-MS) |
| Environmental Conditions | 0–40°C, 0–96% RH non-condensing, up to 3000m altitude |
| Noise Level | 51 dB at 1 meter |
| BTU Rating | 421 BTU/hr (Online), 505 BTU/hr (Battery) |
| Dimensions (H × W × D) | 9.9 × 6.3 × 15.1 in |
| Weight | 30.9 lb (14 kg) |
| Certifications | cULus Listed, FCC, CE, OSHPD Seismic Certified, ENERGY STAR |
| Construction | Metal case, commercial-grade design |
| Warranty | 3-year factory warranty (electronics and batteries) |
| Optional Service Plans | 5-Year Depot (9SW5Y-1000UC), 5-Year On-site (WFLN75XX-2509UC) |

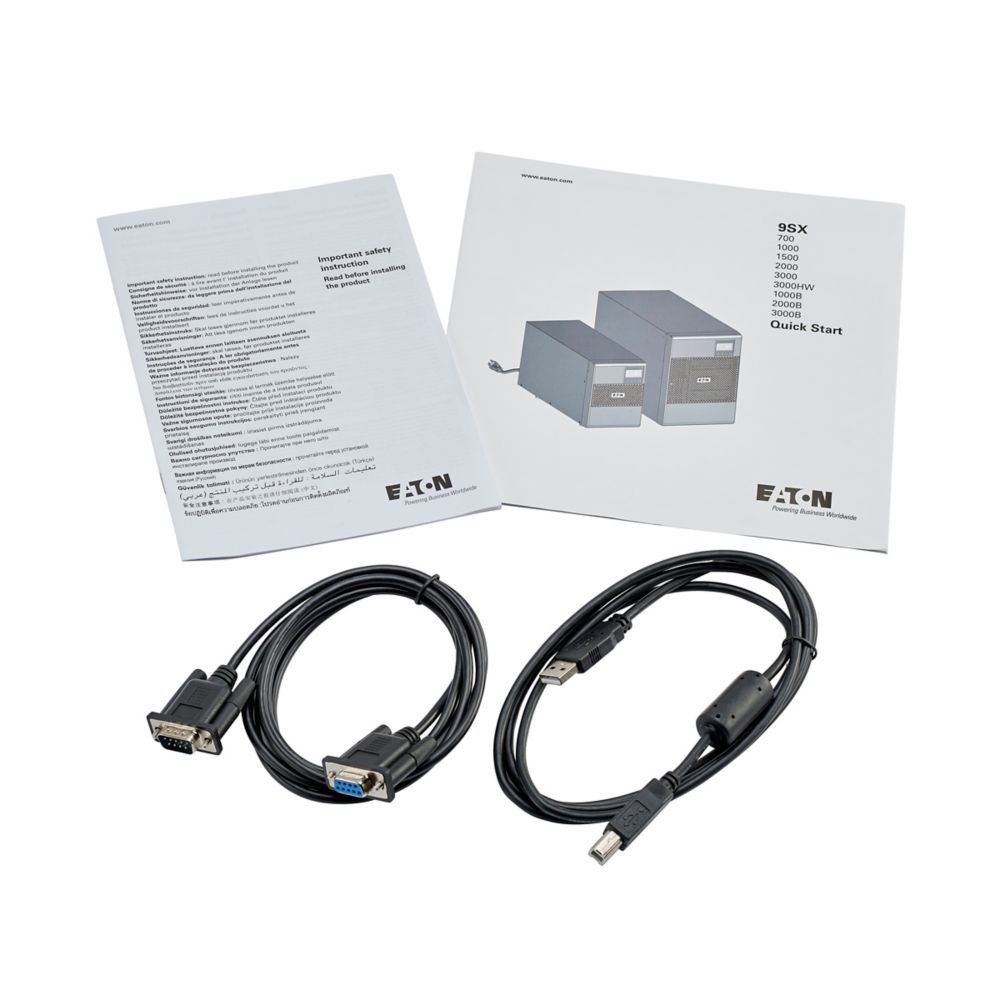

| Included Accessories | UPS unit, USB cable, RS-232 cable, Quick start guide |
