Description
The Eaton 9SX1000G is a high-performance online double-conversion UPS designed to deliver continuous, clean, and reliable power for critical IT and networking equipment. Rated at 1000VA / 900W, it ensures true sine wave output and superior voltage regulation for sensitive devices. The UPS features Eaton’s ABM™ technology for intelligent battery management, extending battery life by up to 50% and providing advance warning for replacement.

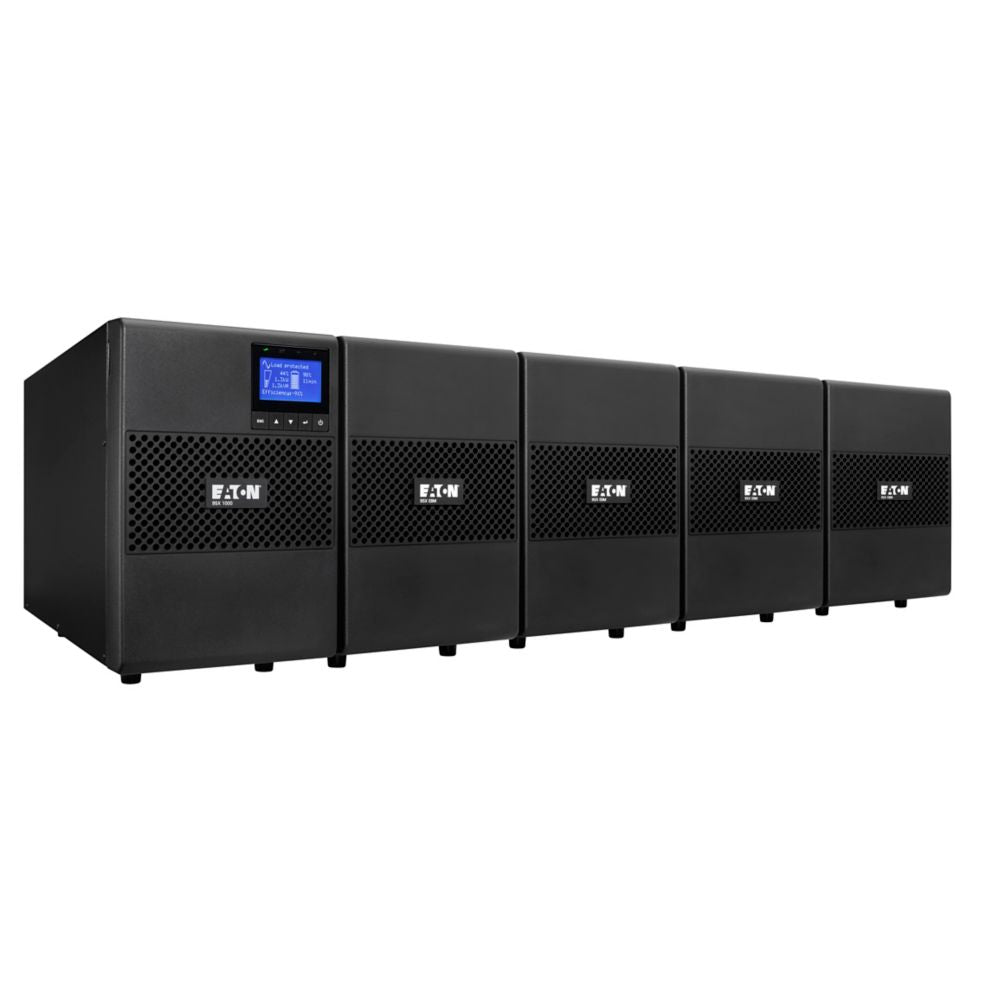

Engineered with hot-swappable internal batteries and extended battery module (EBM) support, the 9SX1000G provides exceptional runtime flexibility. Its intuitive 5-button LCD interface, high efficiency (up to 89%), and multiple communication options—including USB, RS-232, MiniSlot expansion (for SNMP, Modbus, or relay cards)—make it ideal for servers, network closets, and industrial control systems. With FCC, CE, and seismic certifications, and a 3-year factory warranty, this model offers dependable protection and peace of mind for business-critical operations.
| Category | Details |
|---|---|
| Model Number | Eaton 9SX1000G |
| Topology | Online / Double-conversion |
| Power Capacity | 1000 VA / 900 W |
| Output Power Factor | 0.9 |
| Output Voltage | 208V nominal (Selectable: 200/208/220/230/240/250V) |
| Output Frequency | 50/60 Hz |
| Output Waveform | True sine wave |
| Output Receptacles | (6) IEC C13 |
| Input Connection | IEC C14 |
| Input Voltage Range | 200–240V (208V default) |
| Input Frequency Range | 50–70 Hz (60 Hz mode), 40–60 Hz (50 Hz mode) |
| Input Power Factor | > 0.99 |
| Battery Type | Hot-swappable internal; EBM support |
| Battery Management | ABM™ 3-stage charging; advanced life monitoring |
| Bypass | Internal automatic bypass |
| Efficiency at Max Load | 89% |
| Communication Ports | USB, RS-232, RPO/ROO, relay terminal, MiniSlot expansion |
| Expansion Slots | (1) Mini-Slot for optional network, Modbus, or relay cards |
| User Interface | 5-button graphical LCD display |
| Noise Level | 51 dB @ 1m |
| BTU Rating | 421 BTU/hr (online), 777 BTU/hr (battery), 208 BTU/hr (high efficiency) |
| Operating Temperature | 0°C–40°C (32°F–104°F) |
| Relative Humidity | 0–96% non-condensing |
| Altitude | Up to 3000 m |
| Form Factor | Tower (free-standing) |
| Dimensions (H × W × D) | 9.9 × 6.3 × 15.1 in |
| Weight | 30.4 lb (13.8 kg) |
| Certifications | cULus Listed, CE Marked, FCC Compliant, ICC-ES AC156 OSHPD Seismic Certified |
| Warranty | 3-year limited (parts, electronics, and batteries) |
| Optional Network Cards | NETWORK-M3 (Gigabit SNMP), INDGW-M2 (Modbus), RELAY-MS (Relay Card) |
| Included Accessories | (2) IEC C13–C14 jumpers, RS-232 cable, USB cable, Quick Start Guide |
| Extended Service Plans | 5-Year Depot Repair: 9SW5Y-1000UC / 5-Year On-Site: WFLN75XX-2509UC |
