Description

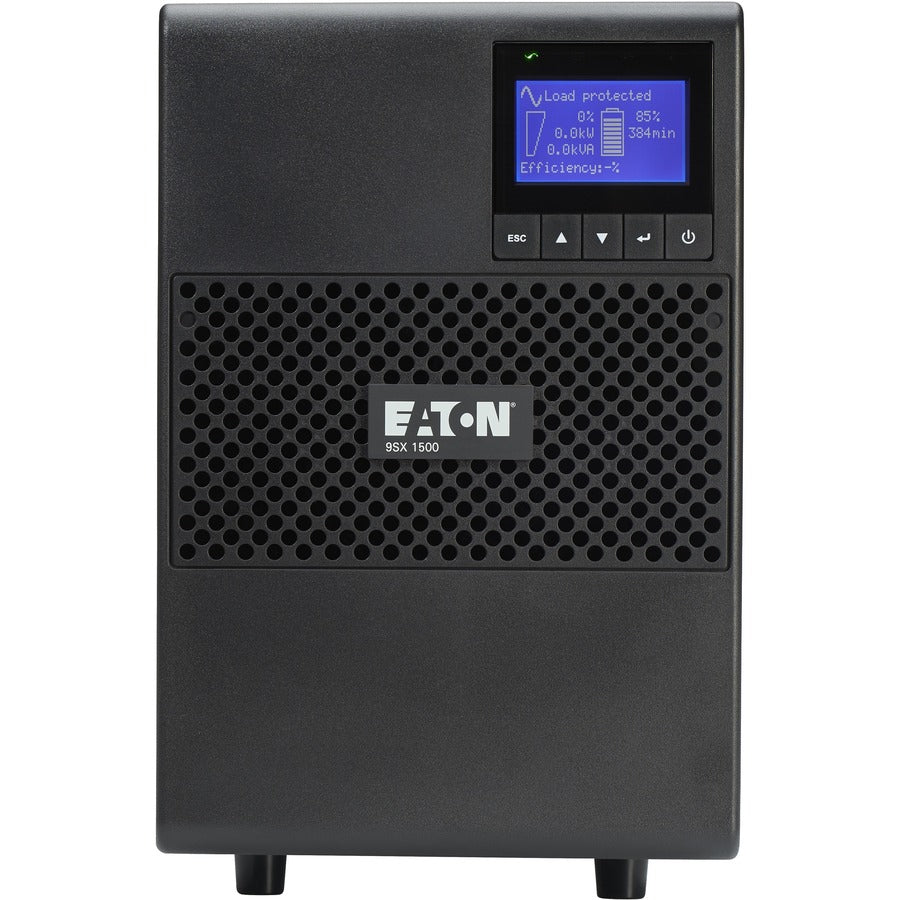

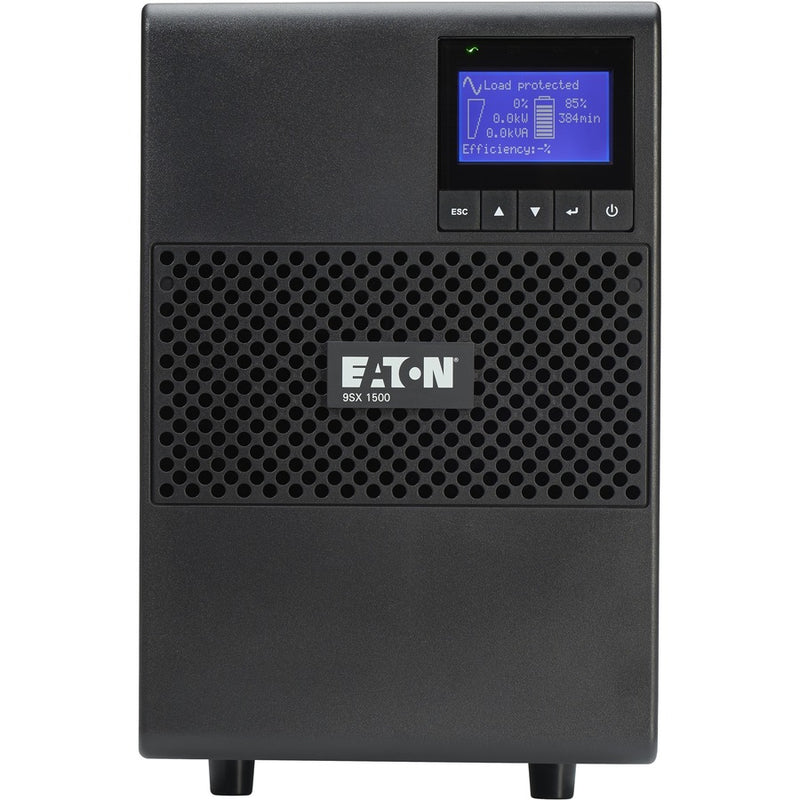

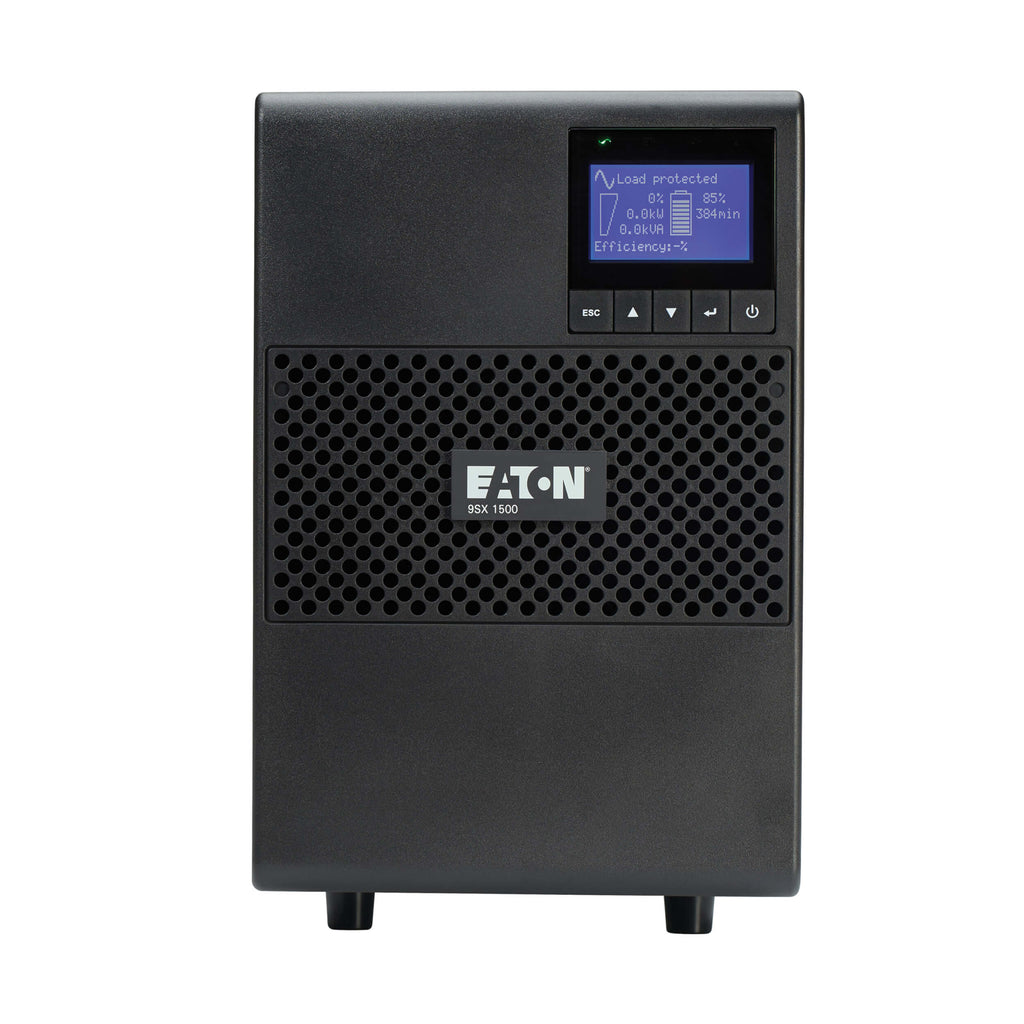

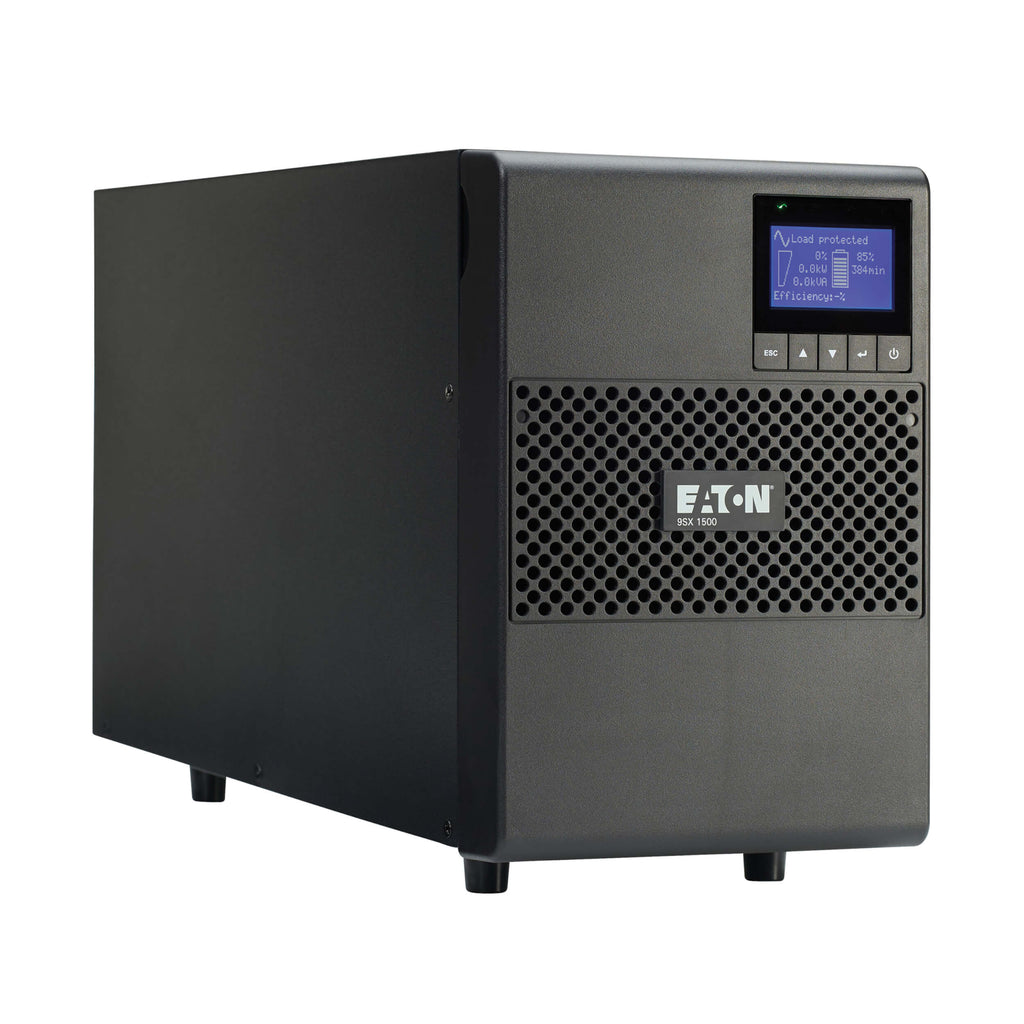

The Eaton 9SX1500 delivers premium online double-conversion power protection for mission-critical IT, automation, medical, and industrial environments. This 1500VA/1350W tower UPS offers continuous pure sine wave output, zero transfer time, and surge protection across 6 NEMA 5-15R outlets (2 switched load banks). With ABM® battery management technology, it extends battery life by up to 50% and supports up to 4 external battery modules for extended runtime.

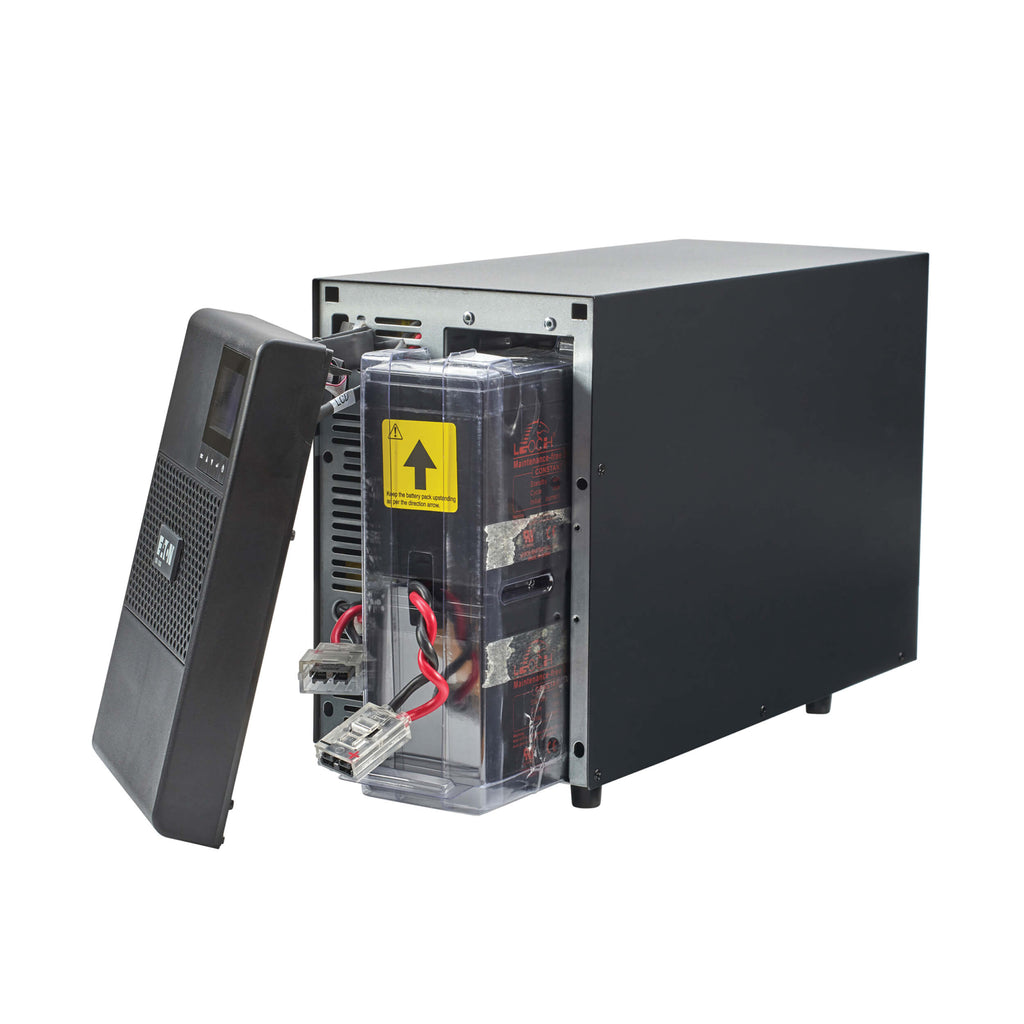

The 9SX1500 features a user-friendly LCD interface, hot-swappable batteries, and robust connectivity via USB, RS-232, dry-contact relay, and an optional cybersecure Gigabit network card (NETWORK-M3). Designed for reliable, remote-managed backup power in tight spaces, this compact 21 lb tower UPS keeps your systems running through outages and fluctuations.
| Specification | Details |
|---|---|
| Model Number | 9SX1500 |
| Topology | Online Double-Conversion |
| Power Rating | 1500VA / 1350W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-15P, 8 ft cord |
| Output Voltage | 100V / 110V / 120V / 125V |

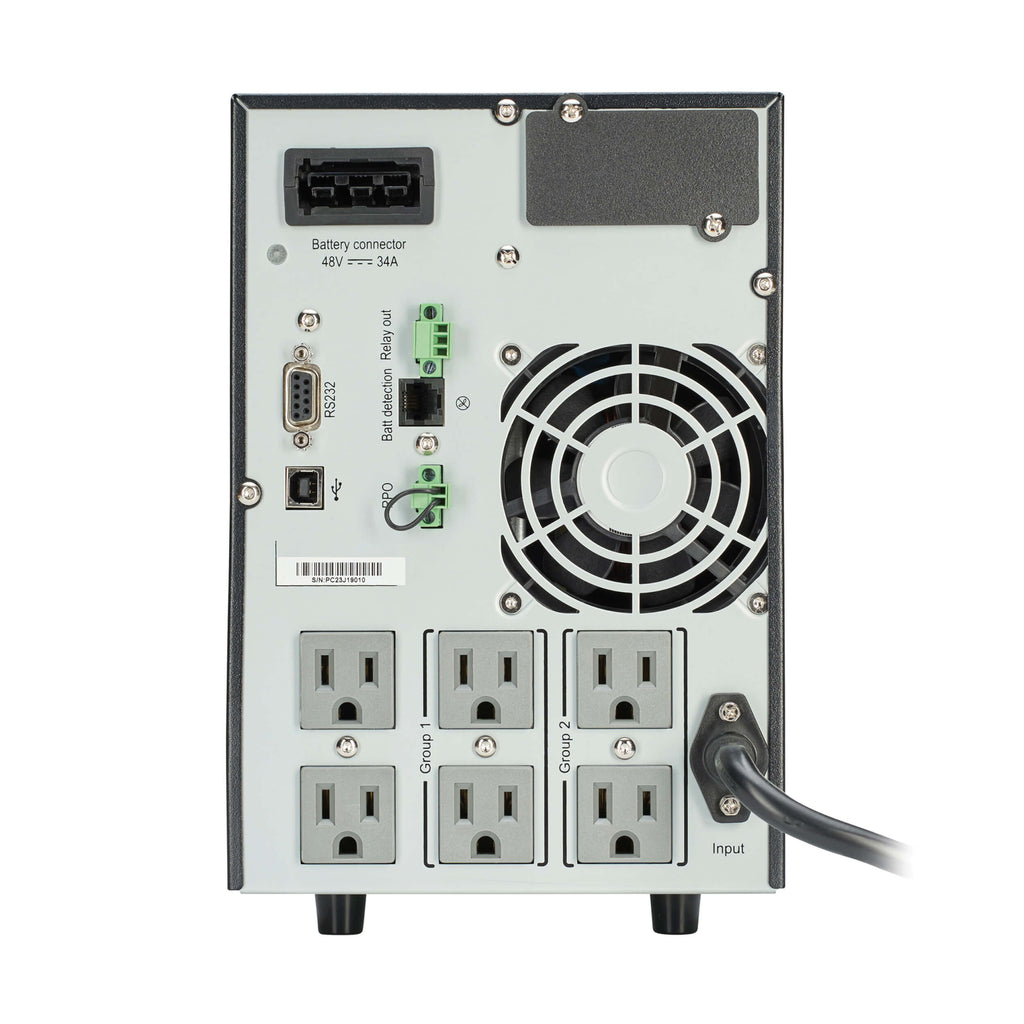

| Output Receptacles | 6x NEMA 5-15R (2 switched load banks) |
| Waveform | Pure Sine Wave |
| LCD Display | High-contrast LCD with status and diagnostics |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) |
| Internal Runtime (Full Load) | 5.9 minutes (1350W) |
| Internal Runtime (Half Load) | 16.5 minutes (675W) |
| Extended Runtime Support | Yes, up to 4 EBMs (9SXEBM48) |
| Battery Management | ABM 3-stage charging, 50% longer battery life |
| Network Management (Optional) | NETWORK-M3 (cybersecure remote access) |
| Communication Ports | USB, RS-232, DB9, relay, RPO/ROO |
| Noise Suppression | EMI/RFI filters |
| Form Factor | Tower |
| Dimensions (HxWxD) | 9.9 x 6.3 x 17.1 in (251 x 160 x 435 mm) |
| Weight | 41.9 lbs (19.01 kg) |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL, cUL, FCC, RoHS, CE, REACH, Seismic Certified |
| Warranty | 3-Year Limited Warranty |
