Description

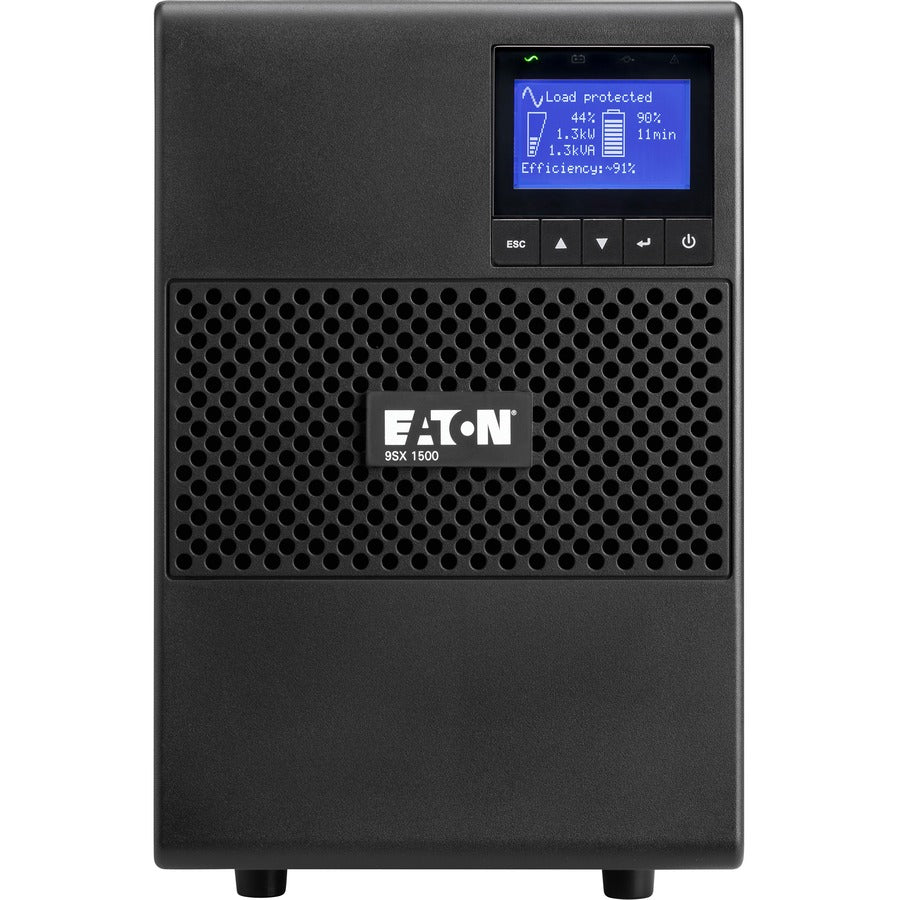

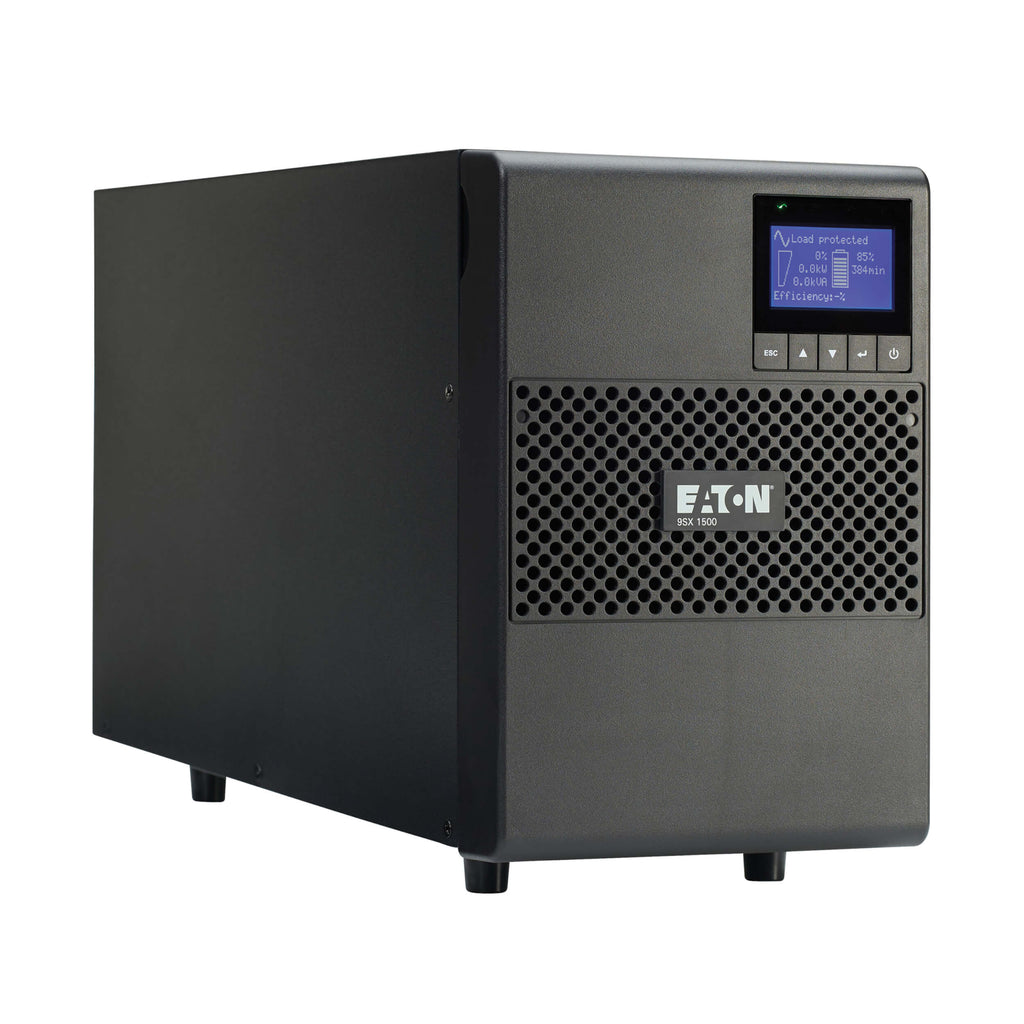

The Eaton 9SX1500G delivers premium online double-conversion power protection for mission-critical systems in IT, industrial, and automation environments. With 1500VA/1350W capacity, this UPS provides zero transfer time and pure sine wave output to safeguard sensitive electronics against power anomalies.
Equipped with six C13 outlets and an 8-ft C14 input cord, the 9SX1500G supports flexible deployment in constrained spaces. Its high-contrast LCD interface gives real-time status updates, while hot-swappable batteries and optional external modules (up to 4 EBMs) ensure uninterrupted operations during outages. Optional Network-M3 card adds remote access and advanced cybersecurity features.
Whether for medical labs, network closets, or automation control, the Eaton 9SX1500G ensures continuous uptime and reliable energy performance in a compact tower form factor.
| Specification | Details |
|---|---|
| Model Number | 9SX1500G |
| Form Factor | Tower |
| Topology | Online Double-Conversion |
| Output Power Capacity | 1500VA / 1350W |
| Input Voltage | 208V (C14 inlet, 8 ft / 2.4m cord) |
| Output Voltage Options | 200V / 208V / 220V / 230V / 240V / 250V |

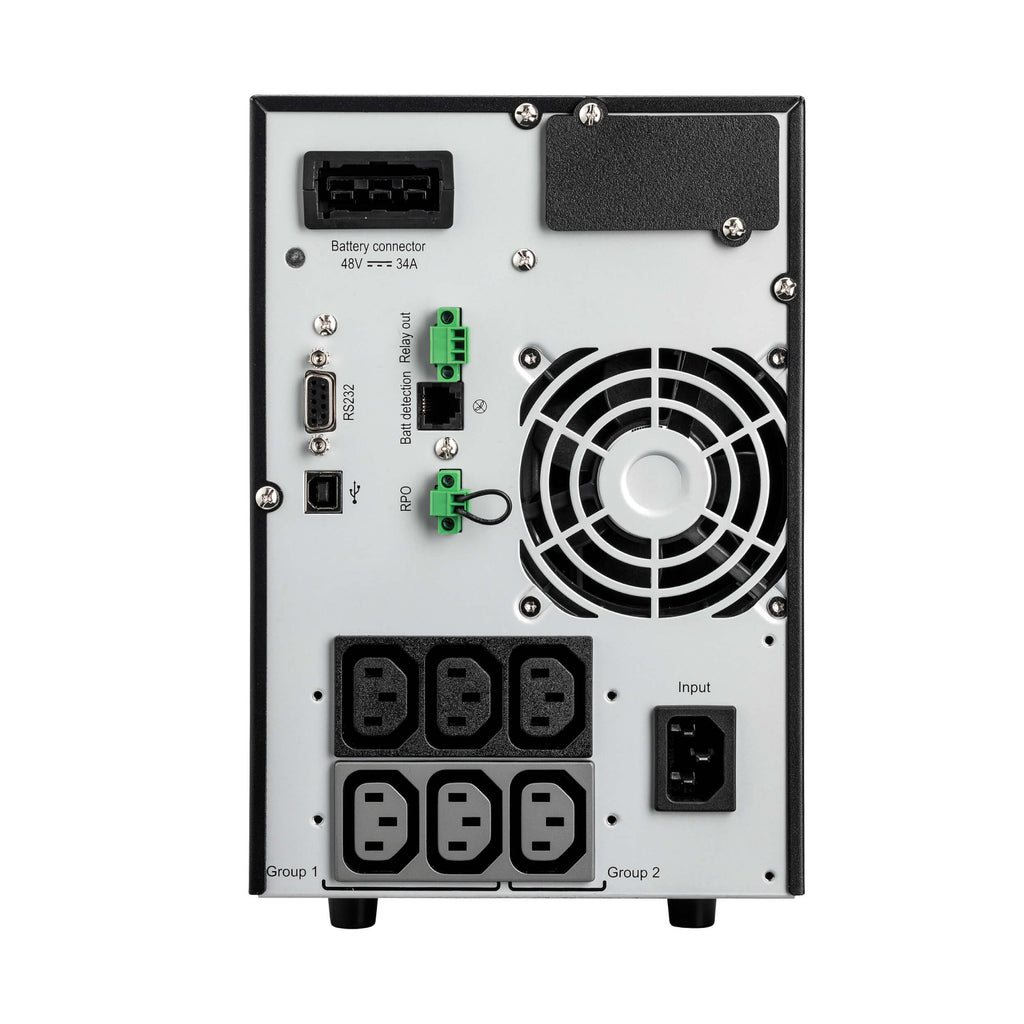

| Output Receptacles | 6 x C13 (2 load banks for power shedding) |
| LCD Display | Graphical LCD with status, analytics, and alarms |

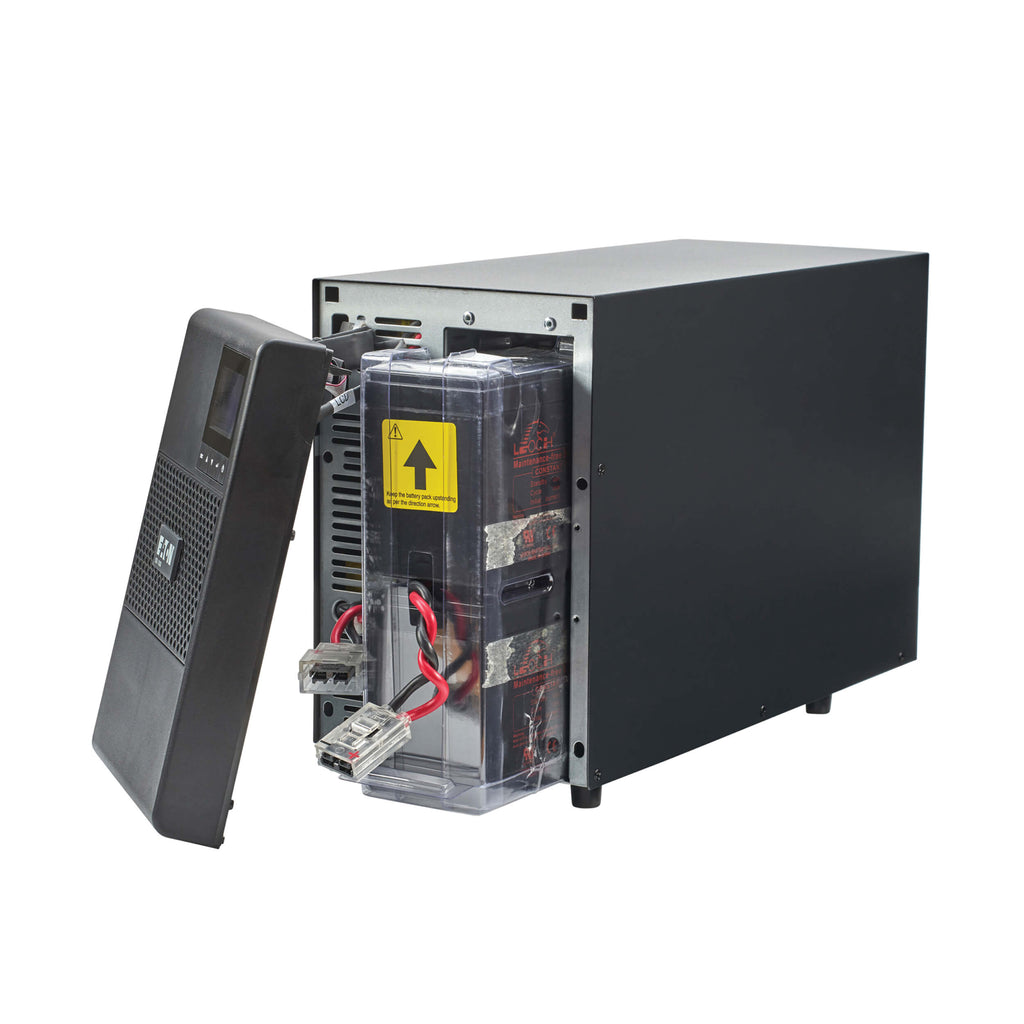

| Battery Type | Valve Regulated Lead Acid (VRLA), hot-swappable |
| Internal Battery Runtime | 5.3 min (Full load), 16.2 min (Half load) |
| Extended Battery Support | Yes, up to 4 x 9SXEBM48 modules |
| Battery Management | ABM 3-stage charging (extends life by 50%) |
| Surge & Noise Protection | Yes (EMI/RFI suppression) |
| Remote Management | Optional NETWORK-M3 card (SNMP/Web, Cybersecure) |
| Communication Ports | USB (HID), RS-232, Dry contact relay, SNMP slot |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–96% non-condensing |
| Unit Dimensions (H x W x D) | 9.9 x 6.3 x 17.1 in (251 x 160 x 435 mm) |
| Unit Weight | 37.3 lbs (16.92 kg) |
| Certifications | UL, cUL, CE, FCC, RoHS, REACH, OSHPD Seismic Certified |
| Warranty | 3-Year Limited Warranty |
