Description

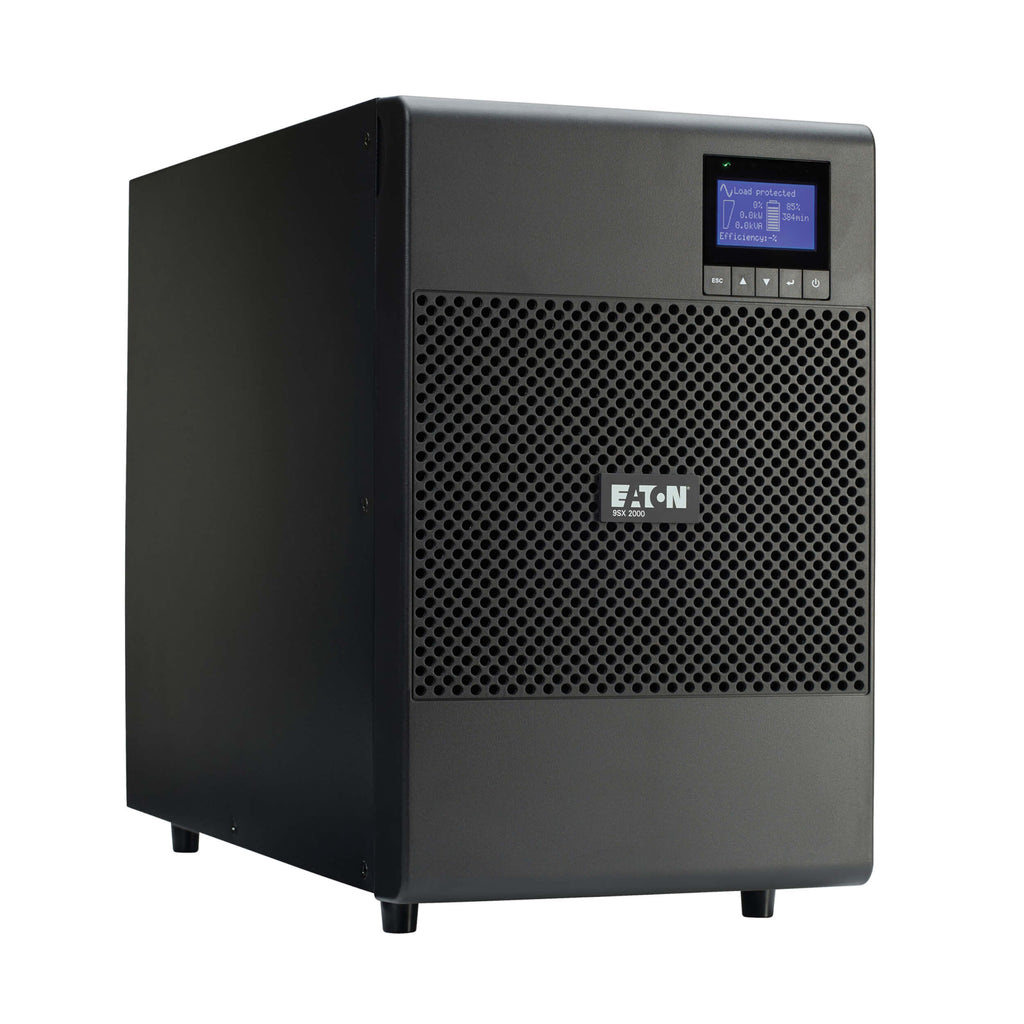

The Eaton 9SX2000 is a high-performance 2000VA/1800W online double-conversion UPS engineered for mission-critical applications requiring premium power protection and continuous uptime. Designed for IT, medical, automation, and light industrial environments, this tower UPS delivers pure sine wave output and seamless zero-transfer-time backup during outages. It supports expandable runtime via external battery modules and features advanced ABM technology to extend battery life by 50%.

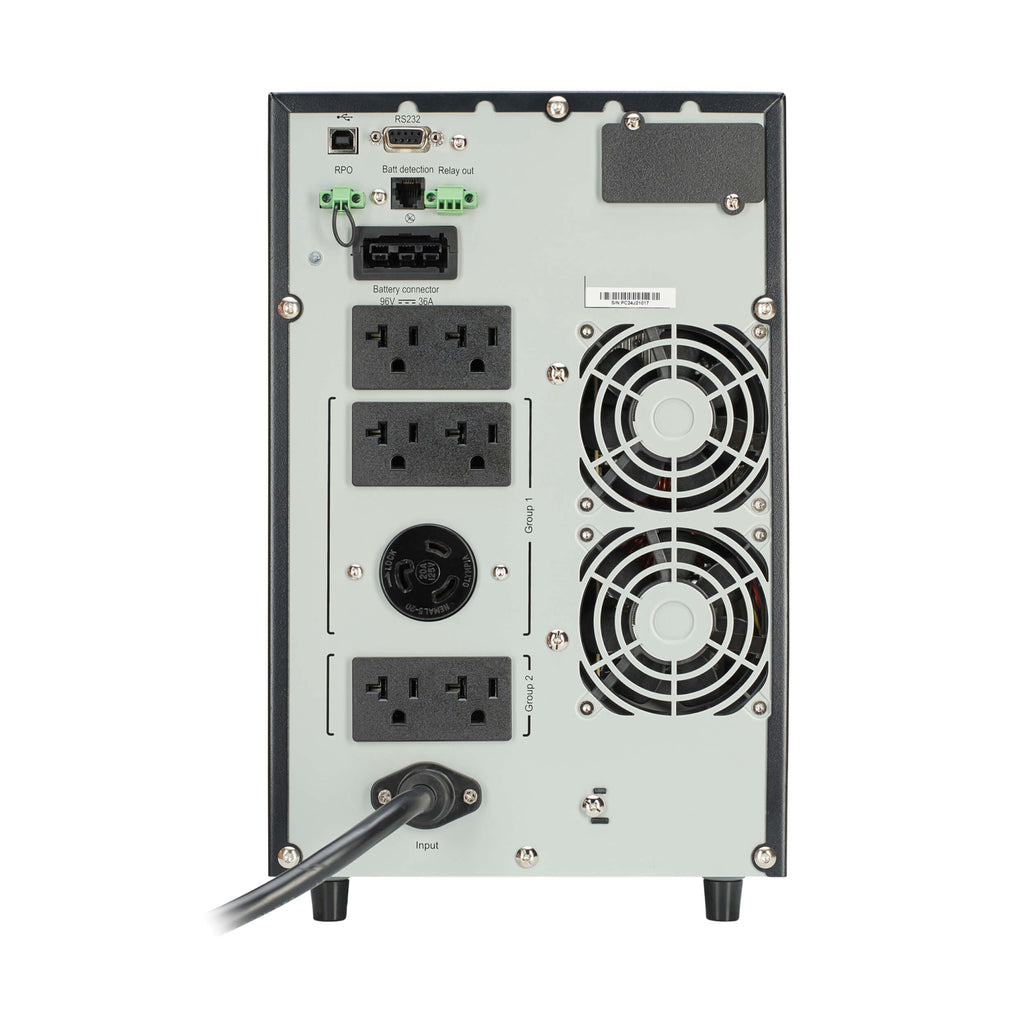

Equipped with six NEMA 5-20R and one L5-20R outlets, the 9SX2000 allows for load prioritization via two controllable load banks. Optional cybersecurity-compliant NETWORK-M3 and environmental sensors enable full remote management. The front-panel LCD provides real-time system status, alerts, and power analytics, making it ideal for space-constrained but reliability-driven operations.
| Specification | Details |
|---|---|
| Model Number | 9SX2000 |
| UPS Type | Online, Double-Conversion |
| Power Capacity | 2000VA / 1800W |
| Input Voltage | 120V AC |
| Input Plug | NEMA 5-20P |
| Input Cord Length | 8 ft (2.4 m) |
| Output Voltage | 100V / 110V / 120V / 125V |
| Output Receptacles | 6x NEMA 5-20R, 1x L5-20R |
| Waveform (on battery) | Pure Sine Wave |
| Runtime (Full Load / Half Load) | 10.3 min @ 1800W / 26.2 min @ 900W |
| Battery Type | Valve Regulated Lead Acid (VRLA) |

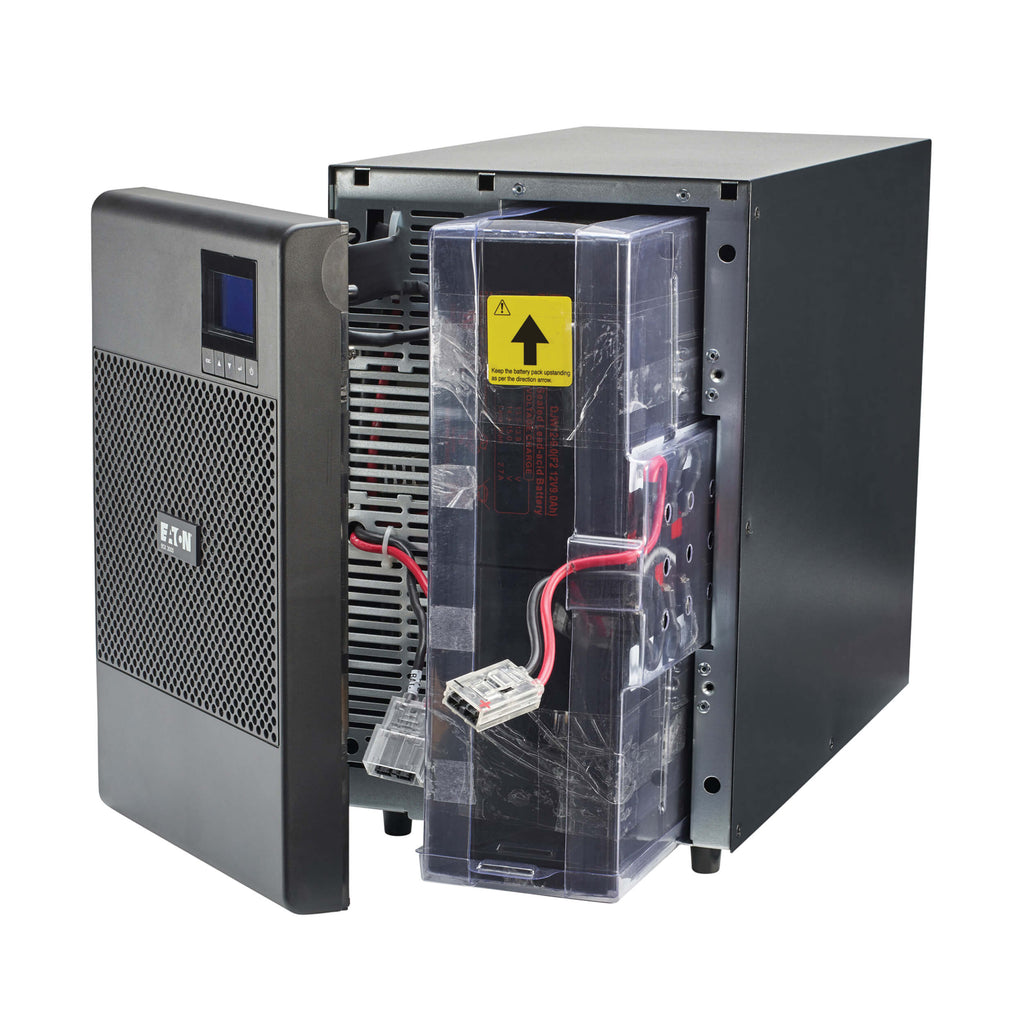

| Hot-Swappable Batteries | Yes |
| Battery Replacement Part | 744-A4313 |
| Expandable Runtime | Up to 4 EBMs (9SXEBM96) |

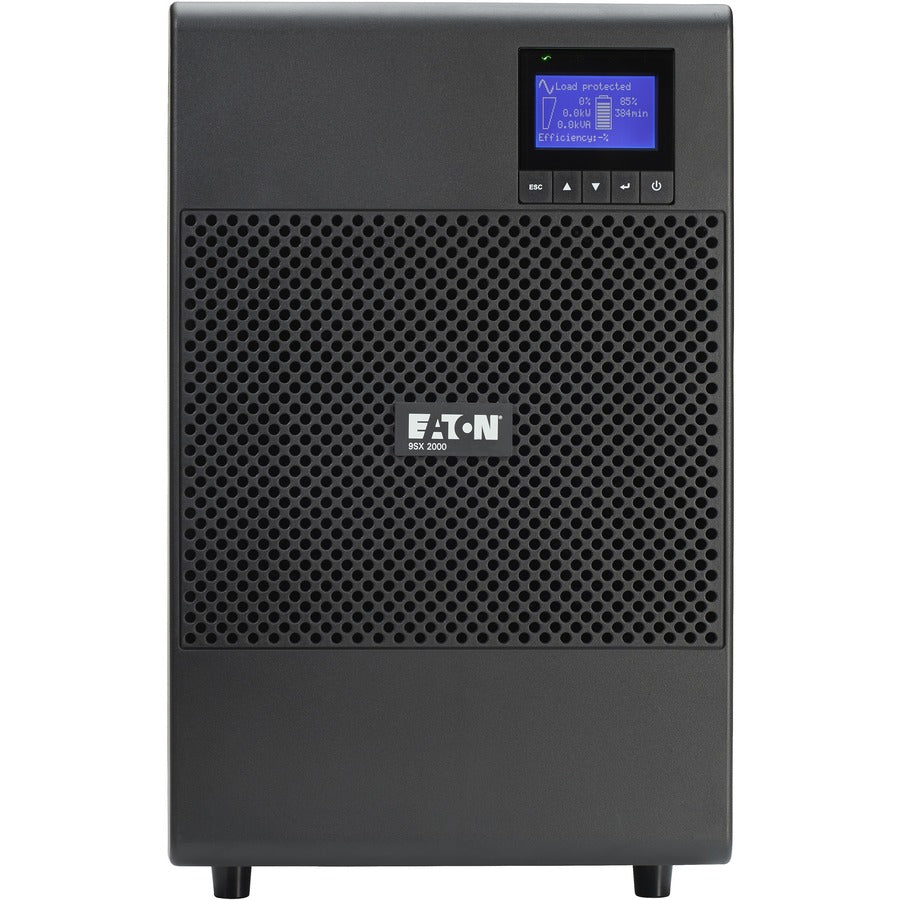

| Display | LCD Graphical Display + 4 LEDs |
| Communications Ports | USB, RS-232, Dry Contact, SNMP Slot |
| Remote Management | Optional NETWORK-M3 (Cybersecure) |
| Form Factor | Tower |
| Dimensions (H x W x D) | 13.6 x 8.4 x 16.2 in (34.5 x 21.3 x 41.1 cm) |
| Weight | 77.2 lbs (35.02 kg) |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
| Certifications | UL, cUL, FCC, CE, RoHS, REACH, OSHPD Seismic |
| Warranty | 3-Year Limited Warranty |
