Description
The Eaton 9SX2000G is a high-performance 2000VA (1800W) online double-conversion UPS that provides continuous, clean power for mission-critical IT, industrial, and medical applications. Designed for 208V environments, this compact tower UPS features eight C13 outlets, zero transfer time, and pure sine wave output. With an intuitive LCD interface, hot-swappable batteries, and optional extended runtime through up to four external battery modules (9SXEBM96), the 9SX2000G ensures operational continuity during power outages. For advanced monitoring, it supports the optional NETWORK-M3 card for secure remote access and management.
| Specification | Details |
|---|---|
| Model Number | 9SX2000G |
| Topology | Online Double-Conversion |
| Power Capacity | 2000VA / 1800W |
| Input Voltage | 208V AC (L6-20P Plug, 8 ft. cord) |
| Output Voltage Range | 200V – 250V |
| Output Receptacles | 8 × C13 (2 switched load banks) |
| Waveform Output | Pure Sine Wave |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Runtime (Full/Half Load) | 10.4 min @ 1800W / 27.5 min @ 900W |
| Extended Battery Support | Yes, up to 4× 9SXEBM96 External Battery Modules |

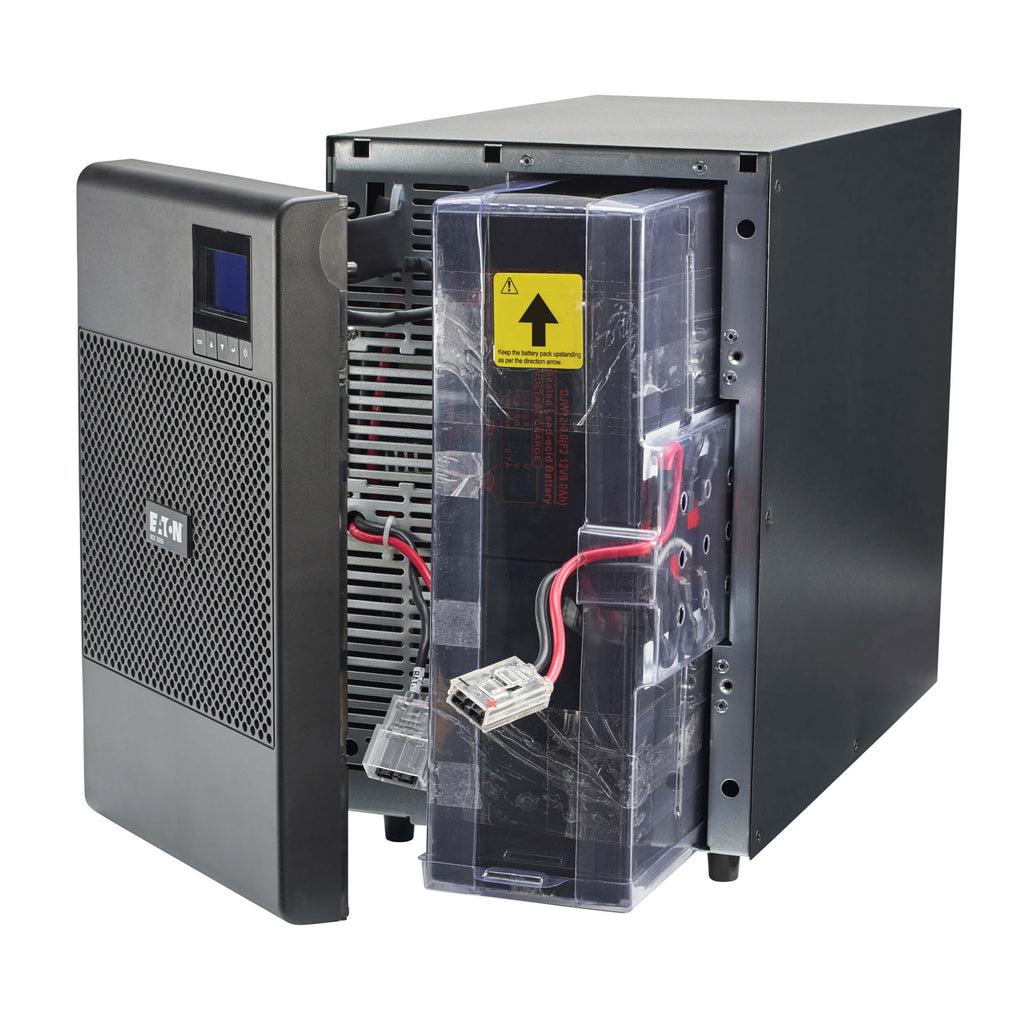

| Battery Replacement | Hot-swappable, user-replaceable (744-A4313) |
| Battery Management | ABM Technology for extended life |
| Display | LCD Graphical with event logs and system analytics |
| Remote Management | Optional NETWORK-M3 Card (Cybersecure, UL 2900-1) |

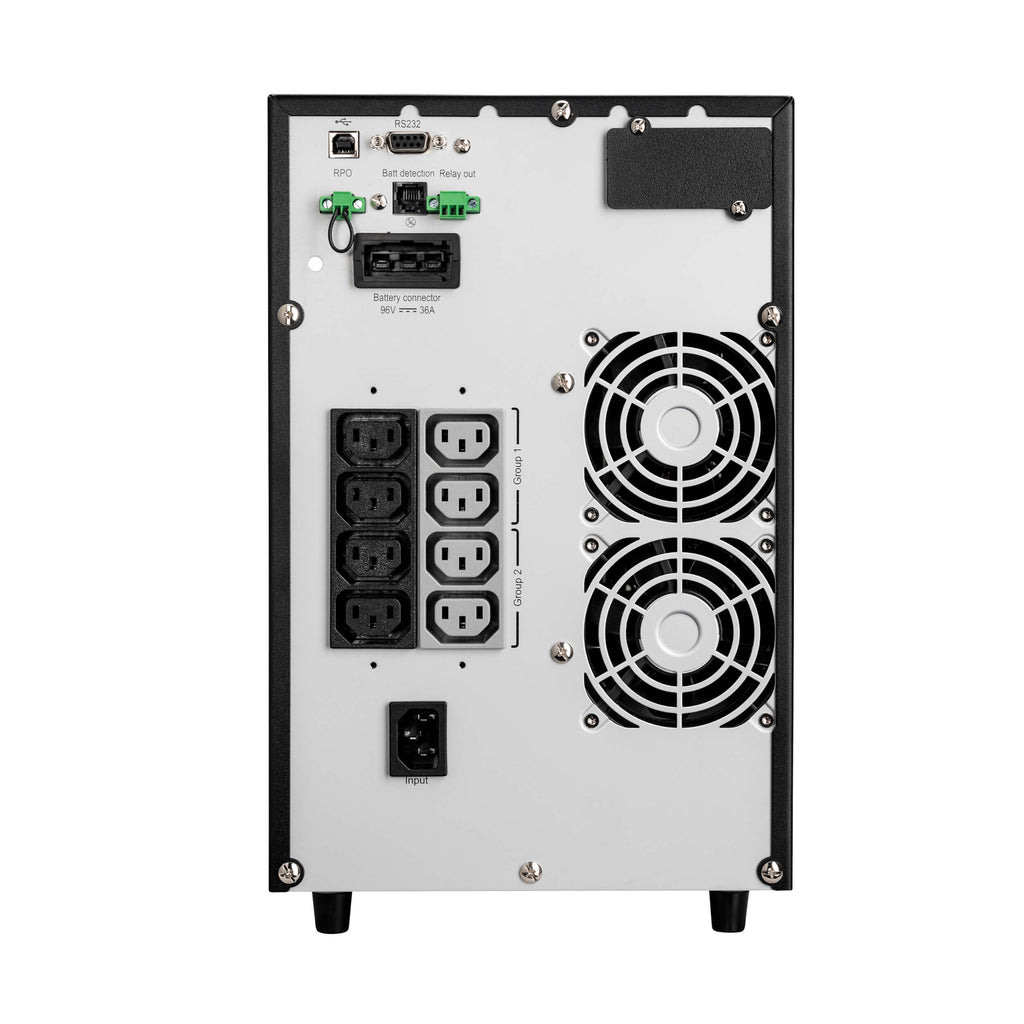

| Ports | USB, RS-232, Relay, ROO/RPO |
| Efficiency (Online Mode) | 92% |
| Form Factor | Tower |
| Dimensions (H × W × D) | 13.6 × 8.4 × 16.2 in (345 × 213 × 411 mm) |
| Weight | 77.2 lbs (35.02 kg) |
| Certifications | UL, cUL, CE, FCC, RoHS, REACH, OSHPD Seismic Certified |
| Operating Temp Range | 32°F to 104°F (0°C to 40°C) |
| Humidity Range | 0–96% non-condensing |
| Warranty | 3-Year Limited Warranty |
