Description

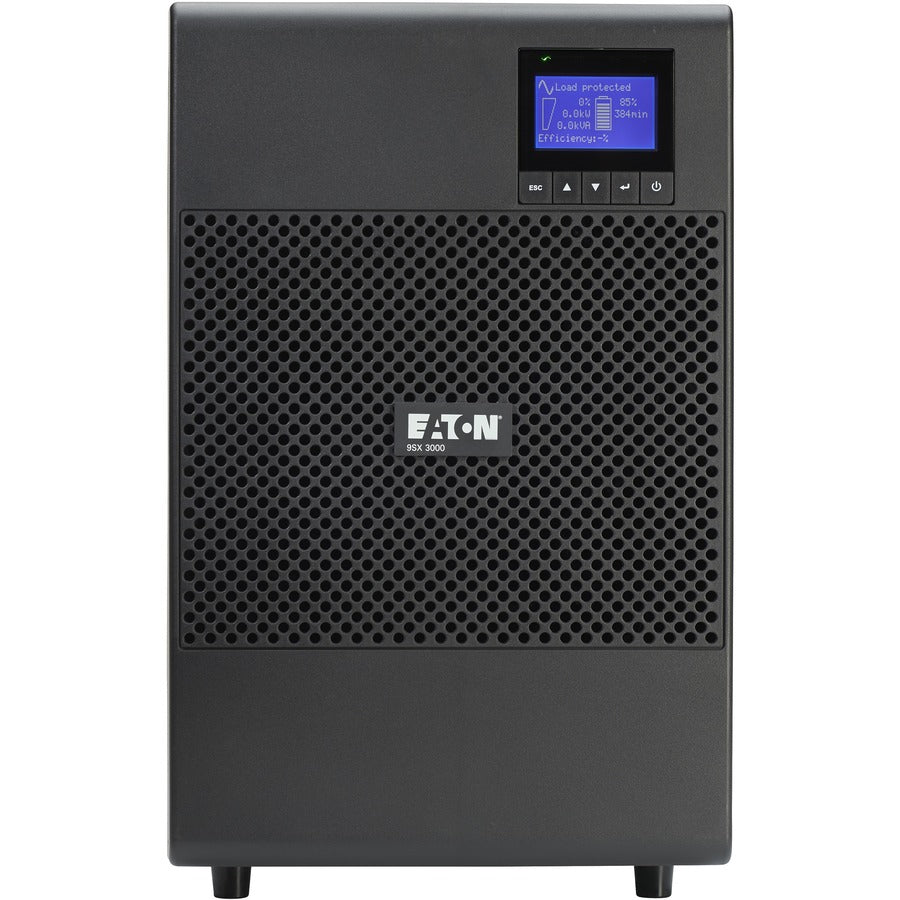

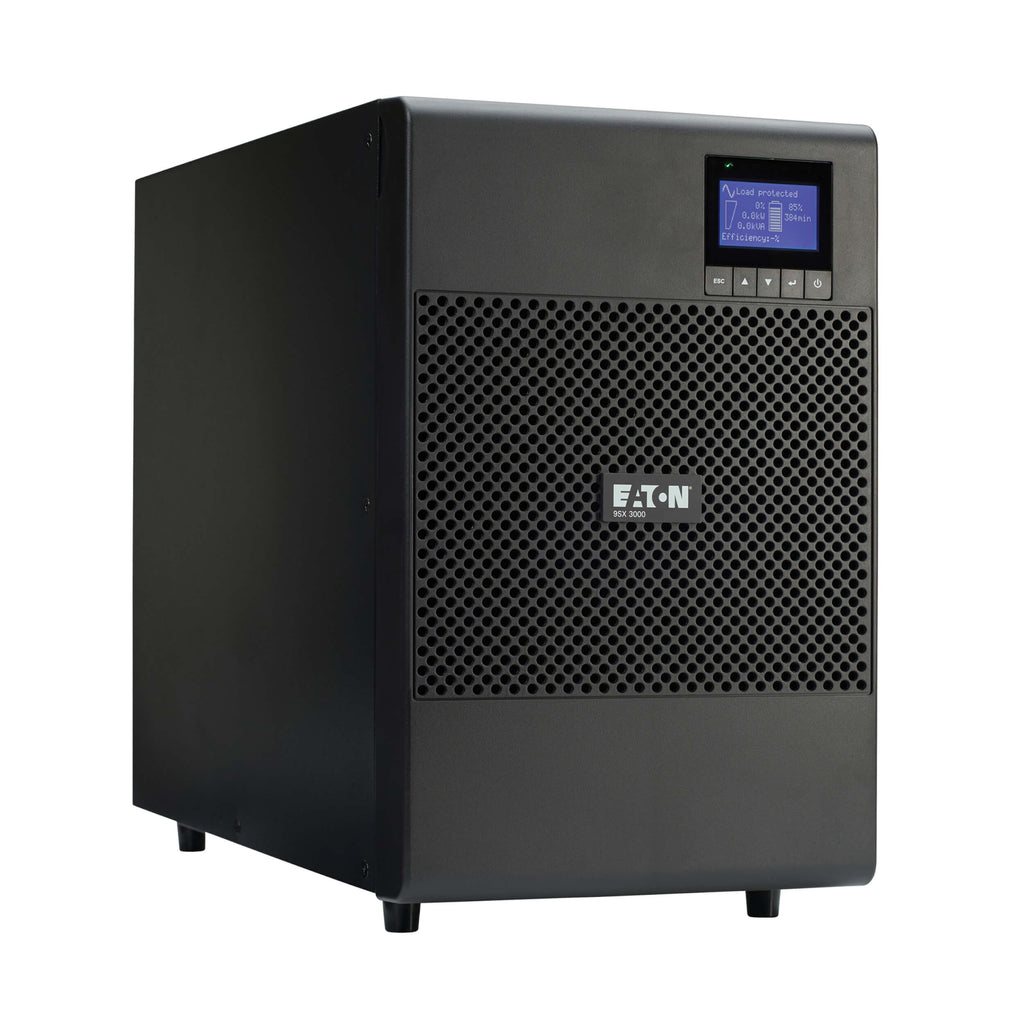

The Eaton 9SX3000 is a high-performance 3000VA/2700W 120V online double-conversion UPS designed for critical IT, industrial, and medical environments. Delivering pure sine wave output with zero transfer time, it ensures continuous protection from power disturbances, surges, and outages.
Equipped with 4 NEMA 5-20R and 1 L5-30R outlets, the 9SX3000 supports essential load management with individually controlled load banks. It features extended runtime capabilities via external battery modules and hot-swappable batteries with ABM® technology that extends battery life by up to 50%. The unit’s LCD interface offers real-time status updates, while optional cybersecure remote management via the Network-M3 card ensures comprehensive control and monitoring.
This tower-form UPS is ideal for limited-space installations where premium reliability and uptime are required.
| Specification | Details |
|---|---|
| Model Number | 9SX3000 |
| Topology | Online Double-Conversion |
| Power Rating | 3000VA / 2700W |
| Input Voltage | 120V AC |
| Input Plug | NEMA L5-30P |
| Input Cord Length | 8 ft. (2.4 m) |

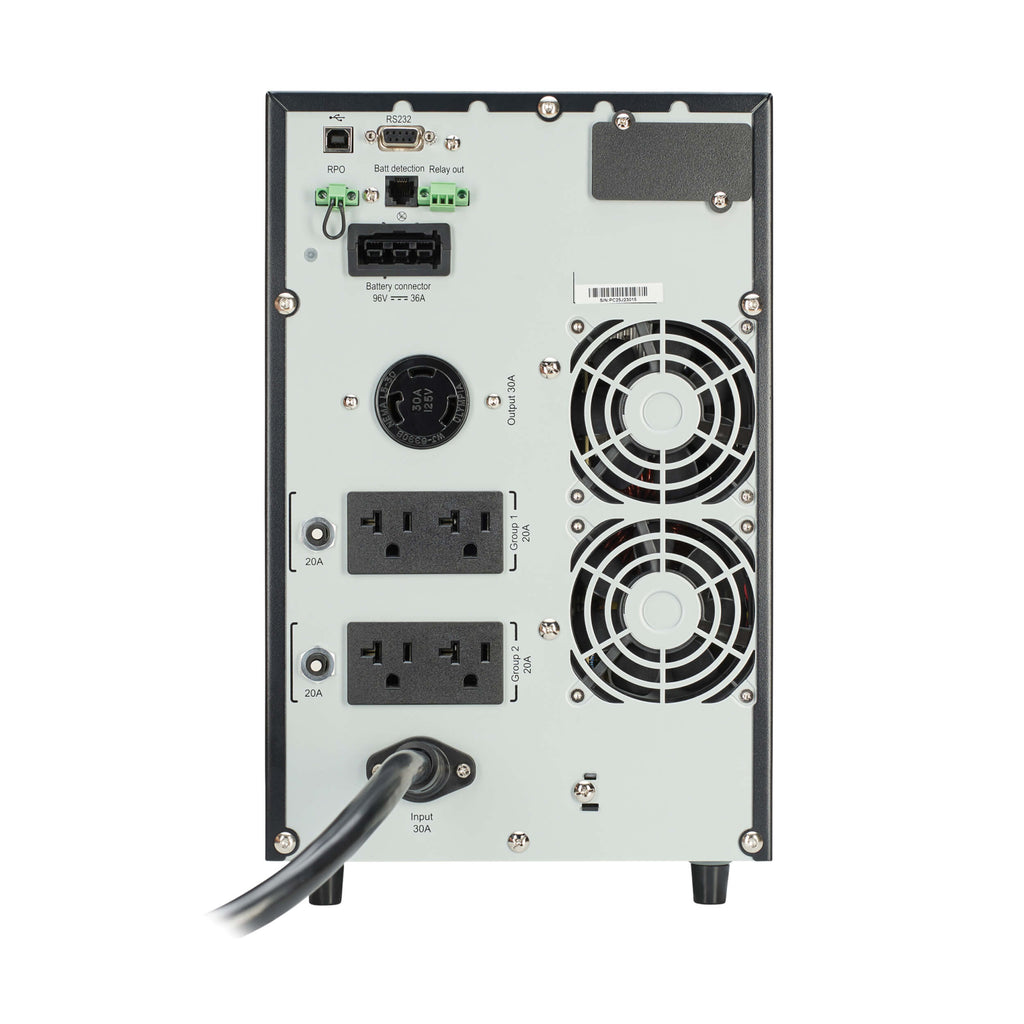

| Output Receptacles | 4x NEMA 5-20R, 1x NEMA L5-30R |
| Nominal Output Voltage | 100V / 110V / 120V / 125V |
| Output Waveform | Pure Sine Wave |
| Battery Type | Valve Regulated Lead Acid (VRLA) |

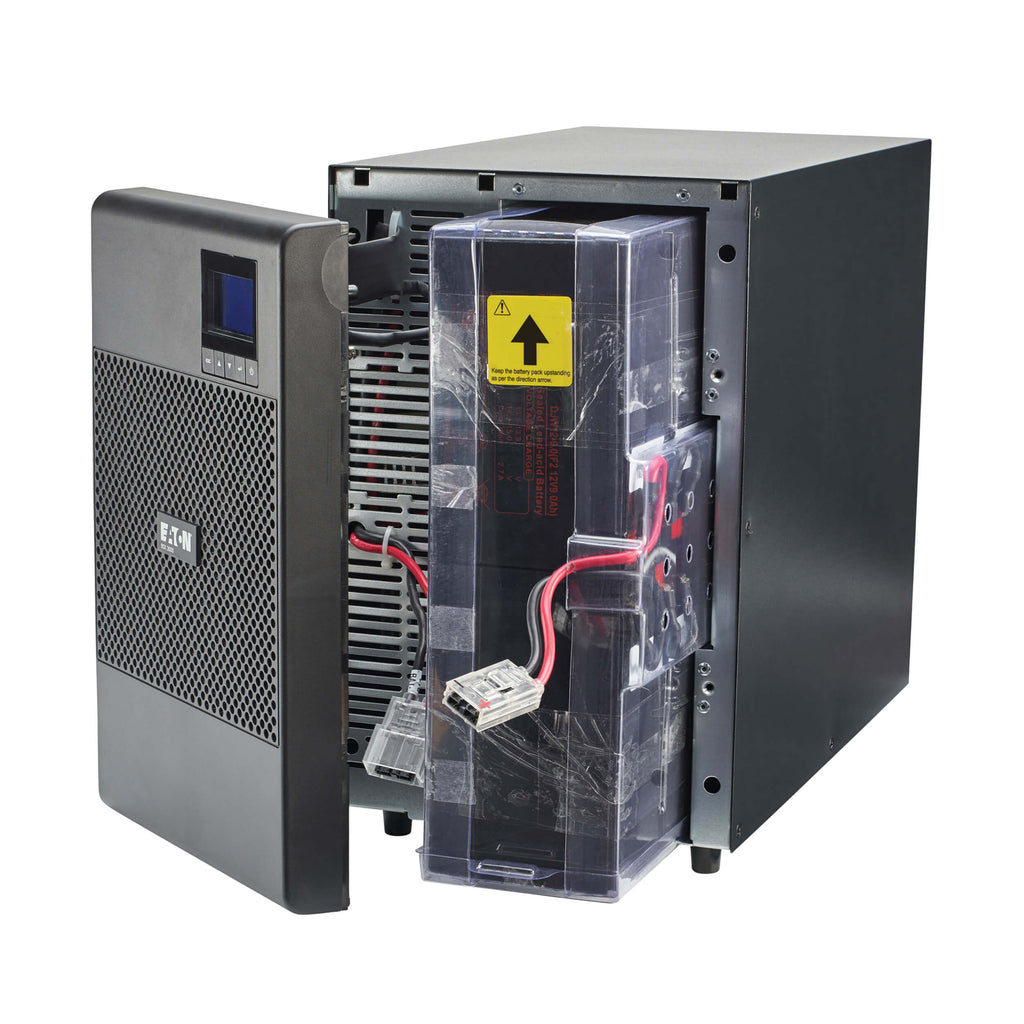

| Hot-Swappable Batteries | Yes (User-replaceable) |
| Battery Management | ABM Technology |
| Full Load Runtime | 5.7 minutes (2700W) |
| Half Load Runtime | 16.7 minutes (1350W) |
| Extended Runtime Support | Up to 4 EBMs (9SXEBM96) |
| Communication Ports | USB, DB9 Serial, SNMP Slot |
| Network Card Support | Optional (Network-M3, RELAY-MS, INDGW-M2) |
| Display Interface | Front-panel Graphical LCD + LEDs |
| Form Factor | Tower |
| Dimensions (HxWxD) | 13.6 x 8.4 x 16.2 in |
| Weight | 77.2 lbs (35.02 kg) |
| Certifications | UL, cUL, FCC, CE, RoHS, REACH |
| Operating Temp. Range | 0° to 40°C (32° to 104°F) |
| Warranty | 3-Year Limited Warranty |
