Description
The Eaton 9SX3000G UPS delivers robust online double-conversion backup power with 3000VA/2700W capacity for mission-critical IT, medical, and industrial environments. Designed for reliability and scalability, this tower UPS features zero transfer time, ABM battery technology for extended battery life, and eight C13 plus one C19 outlets to protect vital equipment. Add up to four external battery modules for extended runtime. Optional Gigabit Network-M3 card provides full remote access and firmware upgrades. Ideal for deployments where space is limited and premium protection is non-negotiable.
| Specification | Details |
|---|---|
| Model Number | 9SX3000G |
| Form Factor | Tower |
| Topology | Online Double-Conversion |
| Input Voltage | 208V |
| Input Connection | L6-20P |
| Input Cord Length | 8 ft (2.4 m) |
| Output Capacity | 3000VA / 2700W |
| Output Voltage Options | 200V, 208V, 220V, 230V, 240V, 250V |

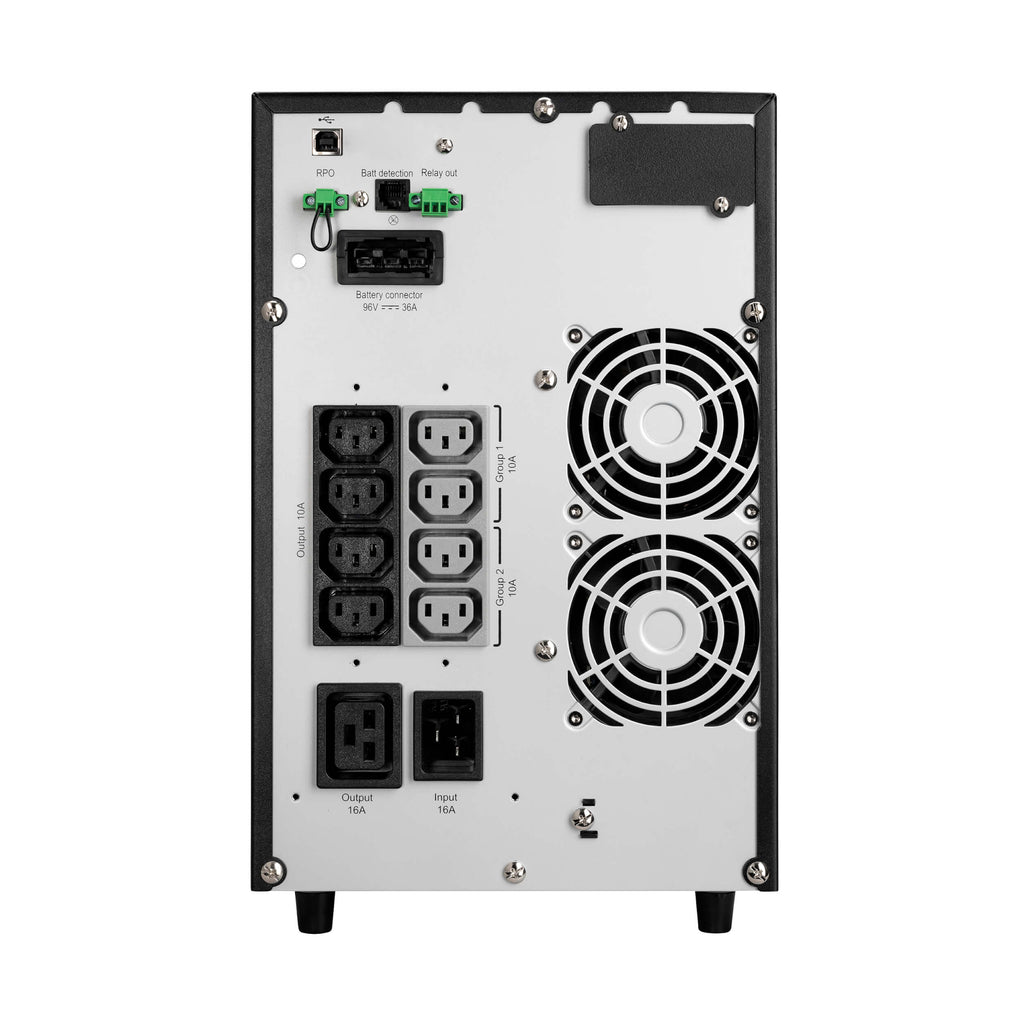

| Output Receptacles | 8x C13, 1x C19 |
| Load Segments | 2 switched C13 load banks |
| Runtime (Full / Half Load) | 5.8 / 15.7 minutes |
| Expandable Runtime | Yes, up to 4 EBMs (9SXEBM96) |
| Battery Type | VRLA, Hot-swappable |
| Battery Management | ABM 3-stage charging |
| Display | LCD Graphical Display + 4 LEDs |
| Communication Ports | USB, RS-232, Dry Contact, Slot for SNMP |
| Optional Network Card | NETWORK-M3 (Cybersecure) |
| EMI/RFI Suppression | Yes |
| Certifications | UL, cUL, CE, RoHS, FCC, REACH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–96%, non-condensing |
| Dimensions (H x W x D) | 13.6 x 8.4 x 16.2 in |
| Weight | 77.2 lbs (35.02 kg) |
| Warranty | 3-Year Limited Warranty |
