Description
The Eaton 9SX700 is a compact, high-performance online double-conversion UPS designed for mission-critical IT, medical, automation, and light industrial applications. By continuously converting incoming AC power to DC and back to fully regulated AC, it delivers a pure sine wave output with zero transfer time, ensuring uninterrupted operation and maximum protection against power disturbances.

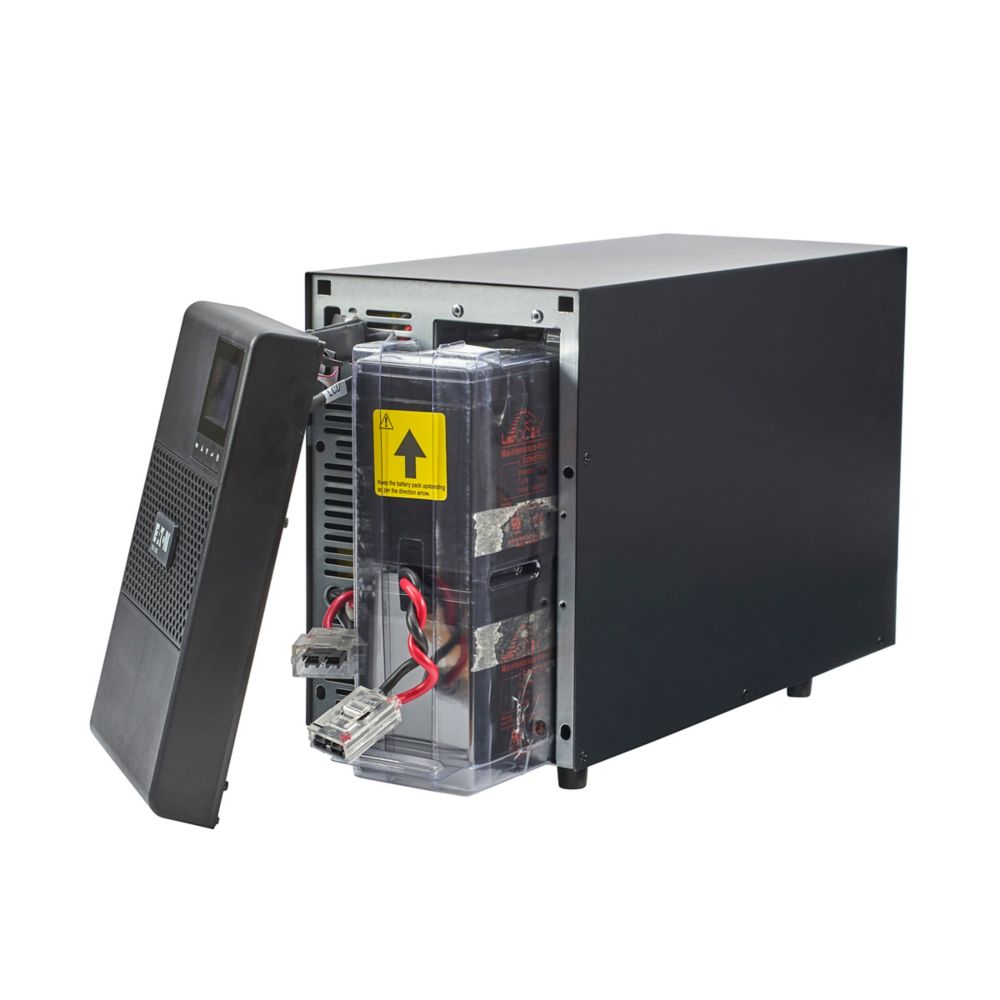

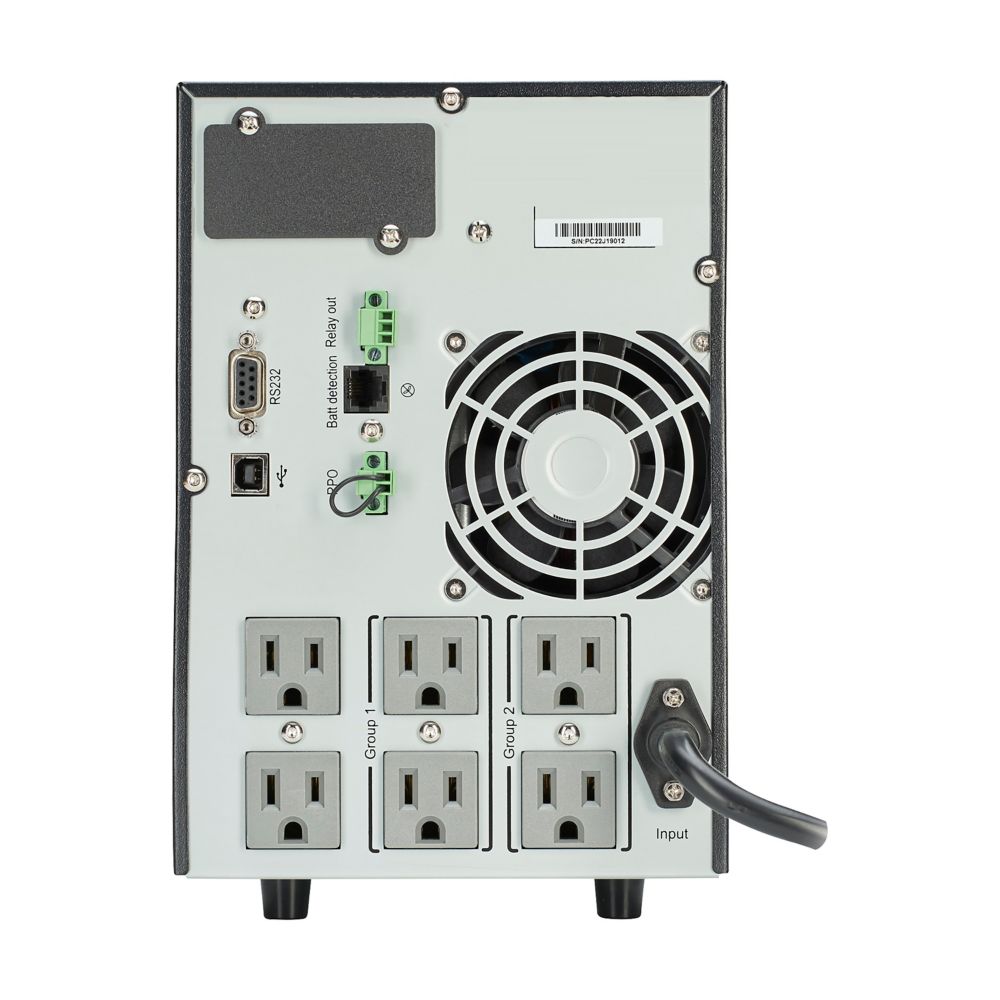

This tower-style UPS provides 700VA / 630W of reliable power and battery backup through hot-swappable internal batteries enhanced by Eaton’s ABM® technology, which extends battery life and proactively monitors battery health. Six NEMA 5-15R outlets support connected equipment, with grouped load banks that allow non-critical loads to be shed to extend runtime for essential devices.

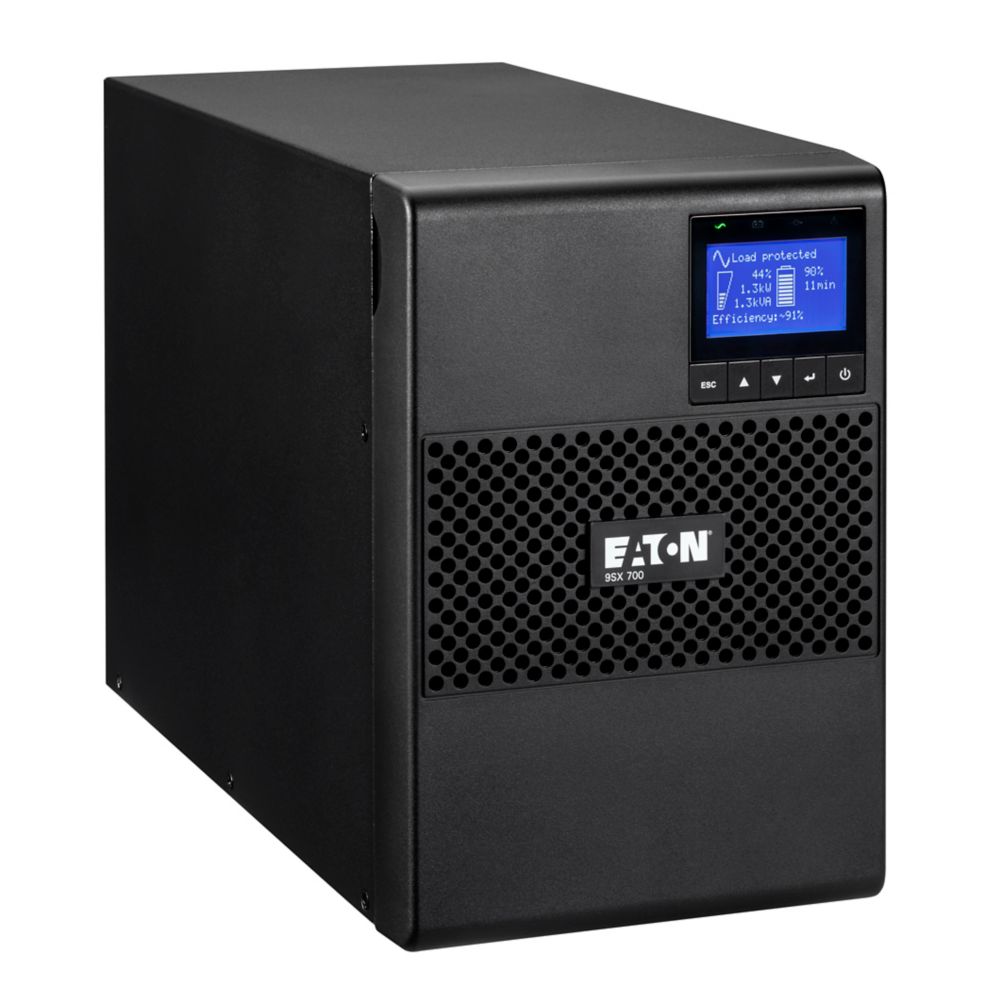

An intuitive front-panel LCD displays real-time status, alarms, and power analytics at a glance. Optional network management cards enable secure remote monitoring, control, and graceful shutdowns, making the 9SX700 an ideal solution where space is limited but premium power reliability is essential.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | 9SX700 |
| UPS Type | Online Double-Conversion |
| Form Factor | Tower |
| Power Capacity | 700 VA / 630 W |
| Input Voltage | 120V AC |
| Input Connection | NEMA 5-15P |
| Input Cord Length | 8 ft (2.4 m) |
| Output Voltage | 100V / 110V / 120V / 125V |
| Output Waveform | Pure Sine Wave |
| Output Receptacles | 6 × NEMA 5-15R |
| Load Banks | Yes, individually controllable |
| Transfer Time | Zero |
| Battery Type | VRLA, hot-swappable |
| Runtime @ Full Load | ~5.8 minutes |
| Runtime @ Half Load | ~16.6 minutes |
| Battery Management | ABM® technology |
| Display | Front-panel LCD |
| Communications | USB, RS-232, network card slot |
| Efficiency (Online Mode) | ~89.8% |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Dimensions (H × W × D) | 9.9 × 6.3 × 13.9 in |
| Weight | 26.5 lb (12.0 kg) |
| Warranty | 3-Year Limited Warranty |
