Description

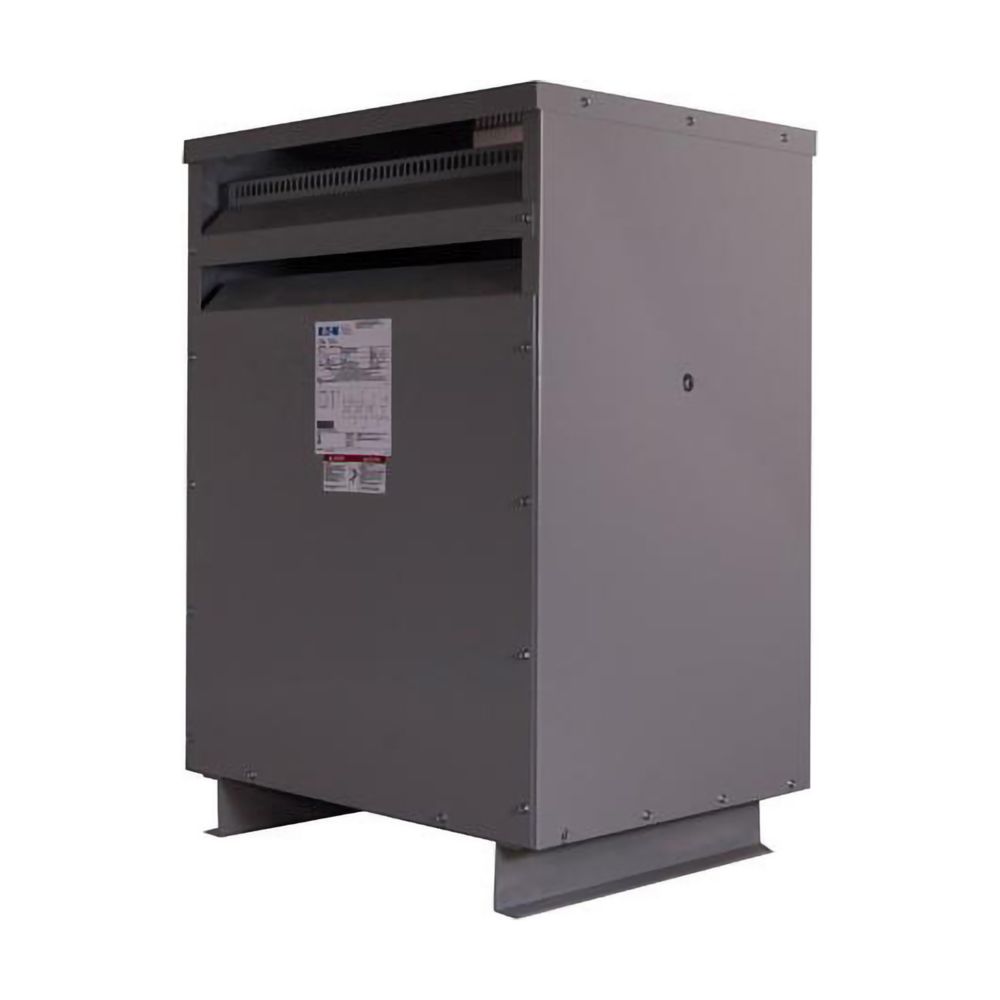

The Eaton V48M28T1216 is a high-performance, energy-efficient ventilated dry-type transformer engineered for reliable power distribution in commercial and industrial environments. Designed with aluminum windings and a 220°C insulation system, this transformer delivers consistent performance under demanding load conditions while maintaining compliance with DOE 2016 efficiency standards.
With a 112.5 kVA capacity and three-phase configuration, it efficiently steps down power from 480V delta to 208Y/120V, making it ideal for facilities requiring stable voltage conversion for critical equipment. Its NEMA 2 enclosure and fungus-proof construction provide added durability in indoor environments, while flexible floor or wall-mounted installation supports a variety of deployment scenarios.
Built to meet UL and NEMA ST-20 standards, the Eaton V48M28T1216 ensures dependable operation, reduced energy losses, and long-term operational efficiency for mission-critical applications.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Type | Ventilated Dry-Type Transformer |
| kVA Rating | 112.5 kVA |
| Phase | Three-Phase |
| Primary Voltage | 480V Delta |
| Secondary Voltage | 208Y/120V |
| Frequency | 60 Hz |
| Efficiency Standard | DOE 2016 (10 CFR Part 431) |
| Coil Material | Aluminum Windings |
| Insulation Class | 220°C |
| Temperature Rise | 150°C |
| Enclosure Type | NEMA 2 |
| Mounting Options | Floor or Wall Mount (Upright Only) |
| Tap Configuration | 2 x +2.5%, 4 x -2.5% |
| Sound Level | NEMA ST-20 Compliant |
| Wiring Connection | 280B |
| Frame | FR943 |
| Weathershield | WS60 |
| Construction | Fungus-Proof Design |
| Certifications | UL Listed |
| Dimensions (H x W x D) | 51 in x 34.5 in x 31.5 in |
| Weight | 970 lb |
| Warranty | 1 year from installation or 18 months from shipment |
