Description

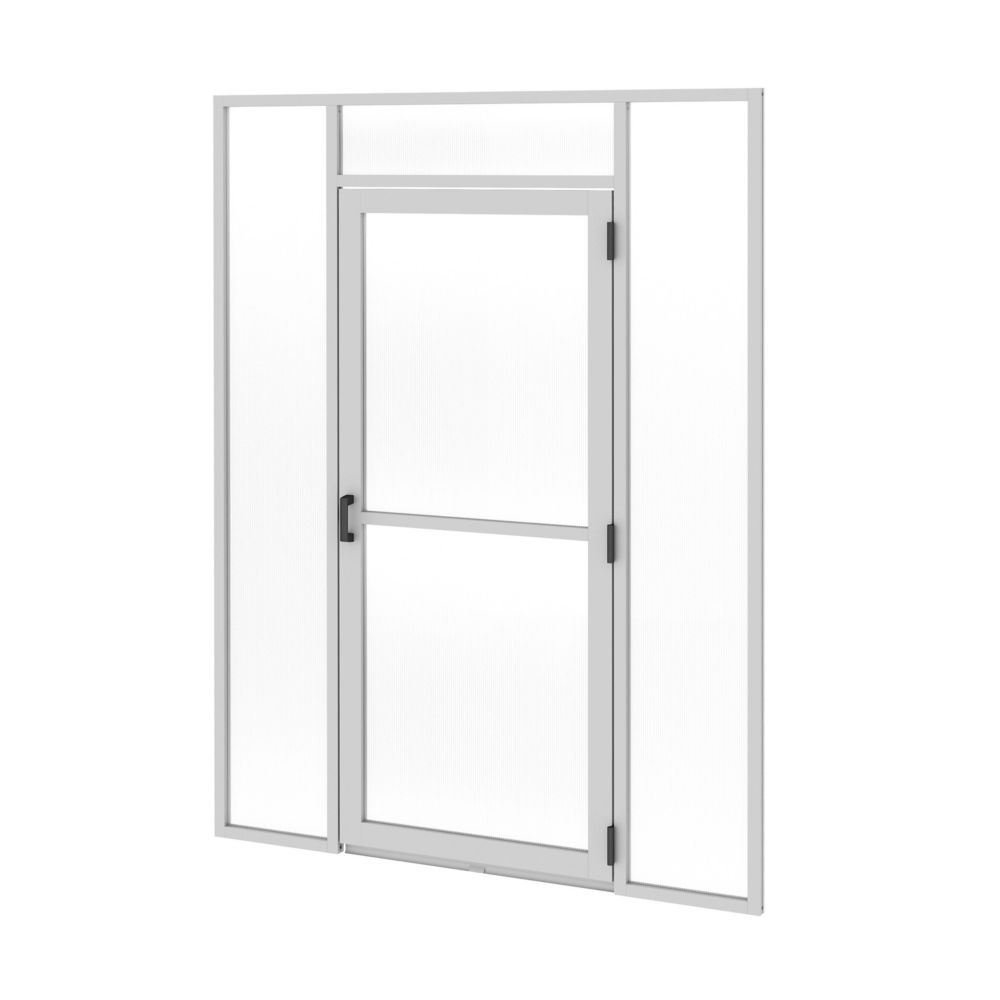

The Eaton NXEORDSH9036 is a single-swing end-of-row door designed for the RapidPod Aisle Containment System. By sealing key air escape routes, it helps reduce air recirculation and mixing to improve airflow management and maintain optimal thermal conditions in high-performance data center environments.
Its field-reversible design supports both left- and right-hand swing configurations for flexible installation. The door features a fully transparent, impact-resistant window with a UL94 V-0 rating, providing visibility while supporting safety requirements. A secure grabber latch keeps the door firmly closed for effective airflow containment or holds it open for convenient equipment access and maintenance.
An integrated bottom edge-grip seal helps close air gaps, while ceiling-mount provisions accommodate threaded-rod installation for secure overhead support. The NXEORDSH9036 is TAA compliant, making it suitable for GSA Schedule and other applicable federal procurement requirements.
Key Features
- Single-swing end-of-row door for RapidPod Aisle Containment Systems
- 90" H x 36" W configuration
- Helps prevent air escape, recirculation, and mixing
- Field-reversible for left- or right-hand swing installation
- Fully transparent, impact-resistant window
- UL94 V-0 rated window for safety and visibility
- Secure grabber latch maintains contained airflow
- Integrated bottom edge-grip seal minimizes air gaps
- Ceiling-mount provisions for threaded-rod installation
- Compatible with 300 mm, 600 mm, and 750 mm rack configurations
- TAA compliant for applicable federal procurement
- 5-year limited warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model / SKU | NXEORDSH9036 |
| Product Type | End-of-Row Door Kit |
| System Compatibility | RapidPod Aisle Containment System |
| Door Configuration | Single Swing |
| Swing Orientation | Field-Reversible, Left or Right |
| Color | Black; Gray |
| Unit Dimensions (H x W x D) | 90 x 36 x 3.6 in. |
| Unit Weight | 50 lb. / 22.68 kg |
| Rack Compatibility | 300 mm (In-Row Cooler); 600 mm (Standard); 750 mm (Wide) |
| Window | Fully Transparent, Impact-Resistant |
| Window Rating | UL94 V-0 |
| Latch Type | Secure Grabber Latch |
| Bottom Seal | Integrated Edge-Grip Seal |
| Built-In Cable Management | No |
| Product Compliance | Trade Agreements Act (TAA) |
| UPC | 037332301178 |
| Warranty | 5-Year Limited Warranty |
| Package Includes | Single-Swing End-of-Row Door, 90 x 36 in. |
