Description

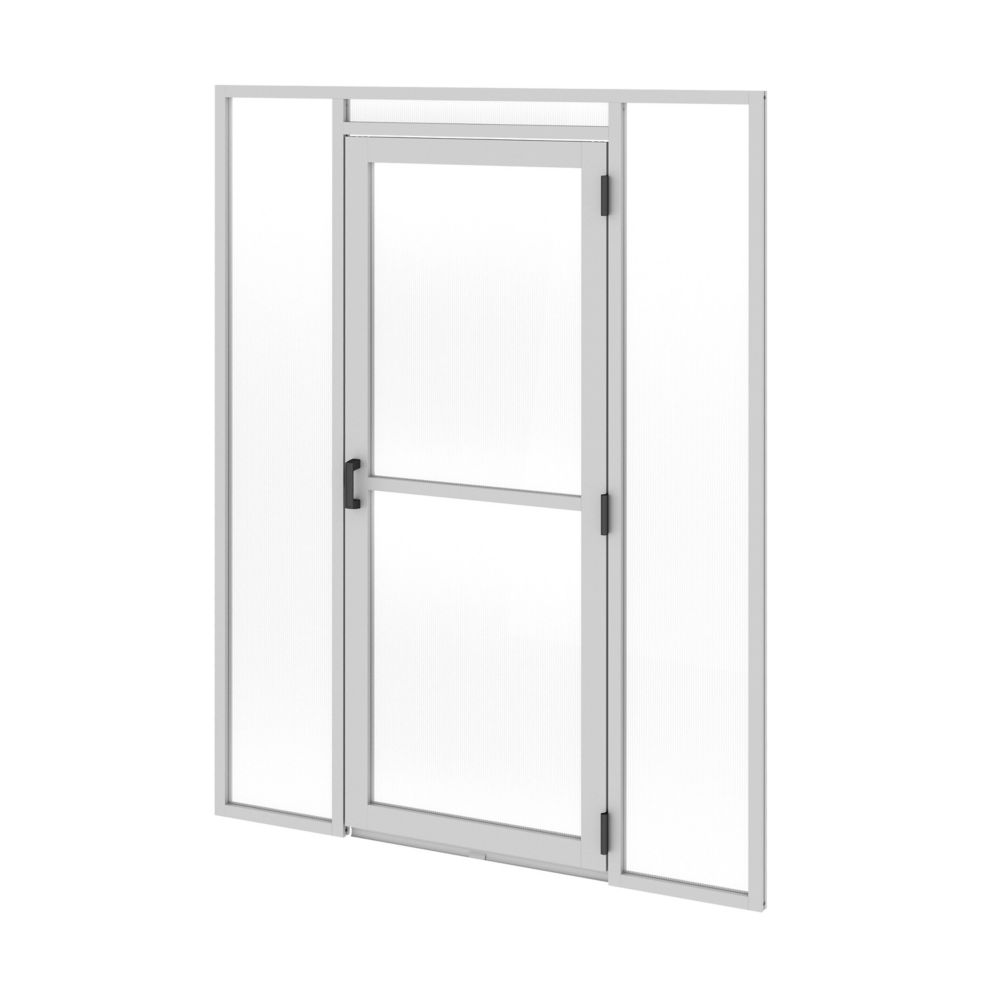

The Eaton NXEORDSH9033 End-of-Row Door is designed for RapidPod Aisle Containment Systems to improve airflow management by blocking air escape routes and reducing air recirculation and mixing. By maintaining more effective containment, it helps support higher ambient operating temperatures, improved energy efficiency, and reliable thermal management in high-performance data centers.
Featuring a single-swing, field-reversible design, the door can be configured for either left-hand or right-hand operation to accommodate different installation requirements. Its transparent, impact-resistant window is rated UL94 V-0, providing visibility while supporting data center safety requirements. A secure grabber latch keeps the door closed for effective airflow containment or holds it open for easier equipment access and maintenance.
The NXEORDSH9033 also incorporates an integrated bottom edge-grip seal to minimize air gaps and includes ceiling-mount provisions for threaded rod installation. Compatible with multiple rack widths, the door provides a flexible addition to modular RapidPod deployments. It is TAA compliant, making it suitable for GSA Schedule and other applicable federal procurement requirements.
Key Features
- Designed for Eaton RapidPod Aisle Containment Systems
- Single-swing end-of-row door
- 90-inch height x 33-inch width
- Field-reversible for left- or right-hand swing configurations
- Helps reduce air recirculation, mixing, and escape
- Transparent, impact-resistant window with UL94 V-0 rating
- Secure grabber latch for closed or open positioning
- Integrated bottom edge-grip seal minimizes air gaps
- Ceiling-mount provisions for threaded rod installation
- Compatible with 300 mm, 600 mm, and 750 mm rack configurations
- TAA compliant for eligible federal procurement
- 5-year limited worldwide warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model / SKU | NXEORDSH9033 |
| Product Type | End-of-Row Door Kit |
| System Compatibility | RapidPod Aisle Containment System |
| Door Configuration | Single Swing |
| Swing Orientation | Field-Reversible, Left or Right |
| Color | Black / Gray |
| Dimensions (H x W x D) | 90 x 33 x 3.6 in. |
| Weight | 50 lb. / 22.68 kg |
| Rack Compatibility | 300 mm In-Row Cooler; 600 mm Standard; 750 mm Wide |
| Window | Transparent, Impact-Resistant |
| Window Rating | UL94 V-0 |
| Latch Type | Secure Grabber Latch |
| Bottom Seal | Integrated Edge-Grip Seal |
| Cable Management | No |
| Compliance | Trade Agreements Act (TAA) |
| UPC | 037332301161 |
| Warranty | 5-Year Limited Warranty |
| Package Includes | Single-Swing End-of-Row Door, 90 x 33 in. |
