Description

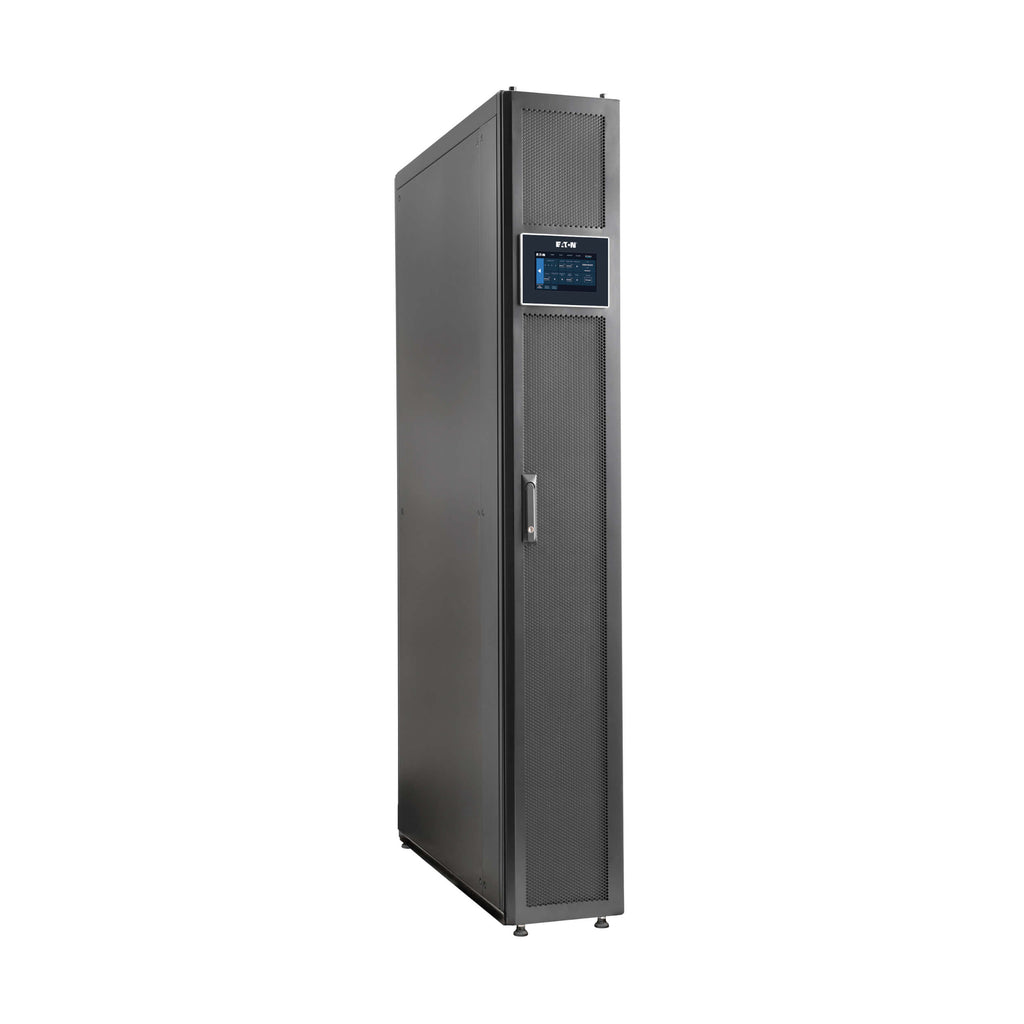

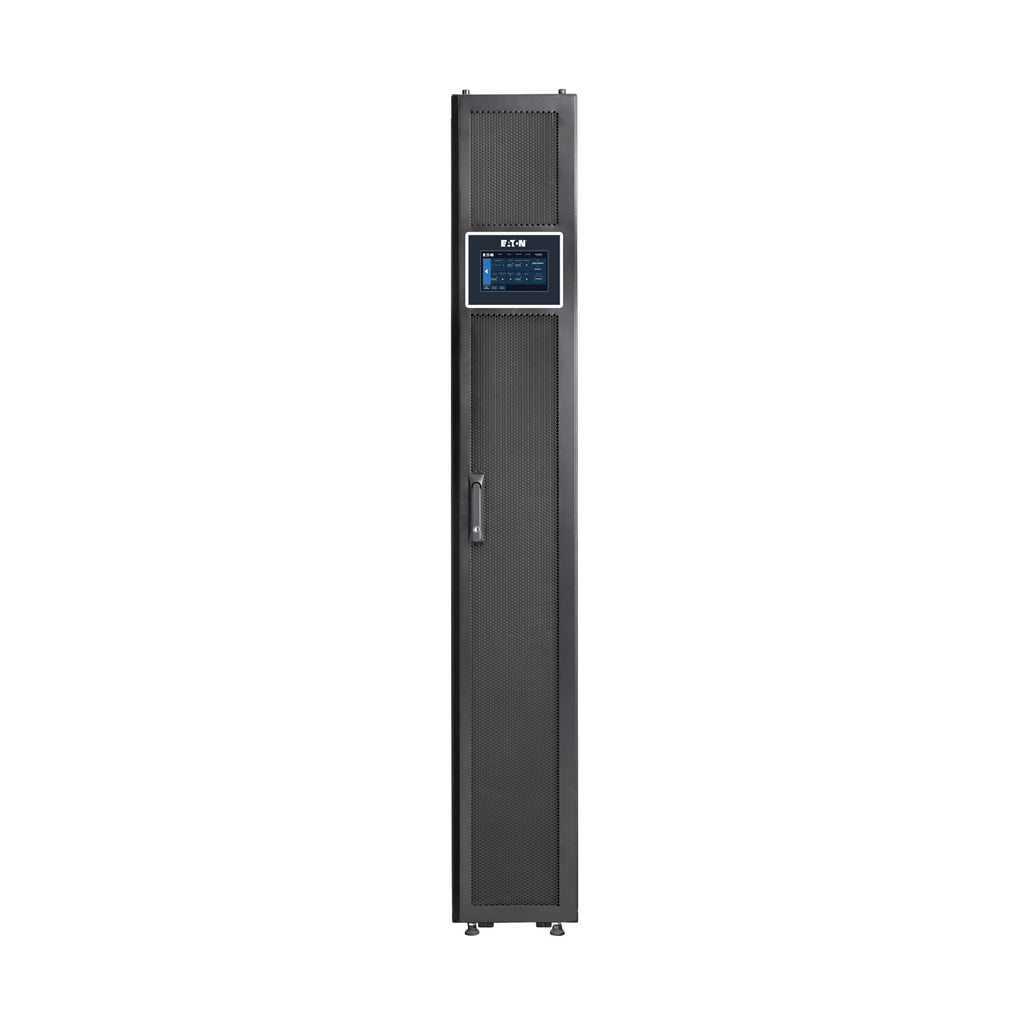

The Eaton SmartRack In-Row Precision Cooling System is engineered to deliver high-efficiency, close-coupled cooling for modern data centers, IT rooms, and edge environments. With a powerful 12.8 kW (43,686 BTU/hr) cooling capacity, this system ensures optimal thermal management for mission-critical equipment while maintaining a compact 300 mm footprint that fits seamlessly within standard rack rows.
Designed with advanced direct expansion (DX) technology, inverter-driven compressors, and EC fans, the unit dynamically adjusts airflow and cooling output based on real-time conditions. This intelligent operation improves energy efficiency and reduces operating costs while maintaining consistent temperatures across high-density deployments.
The system features a user-friendly 7-inch color touchscreen for full visibility and control, along with remote management capabilities via the built-in network interface. Its modular, scalable design supports flexible deployment and N+1 redundancy, making it ideal for growing infrastructure needs.

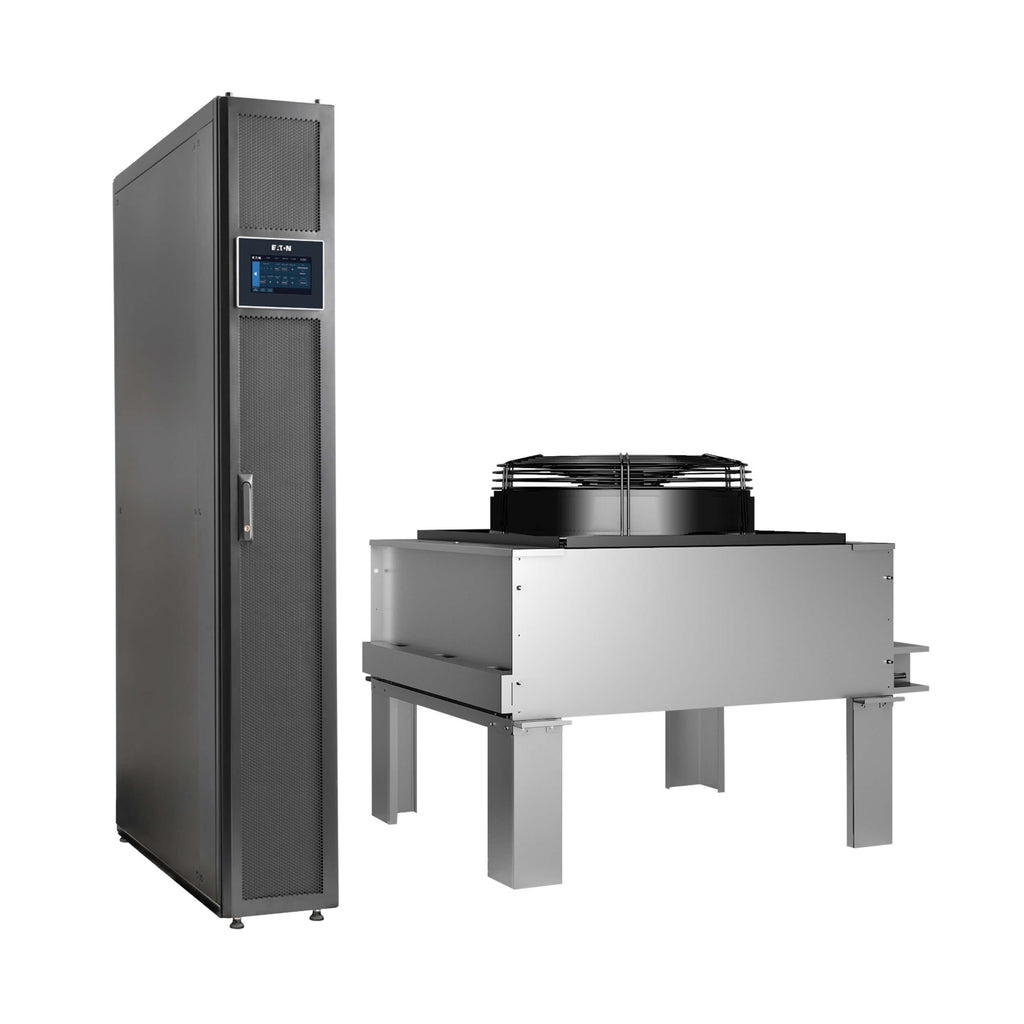

With hot-swappable components, configurable airflow options, and an included outdoor condenser, the SRCOOLDXRW12 provides a complete, enterprise-grade cooling solution that maximizes uptime, efficiency, and operational control.
| Specification | Details |
|---|---|
| Cooling Capacity | 12.8 kW (43,686 BTU/hr) |
| Cooling Type | Direct Expansion (DX), Active Cooling |
| Airflow | Up to 1,475 CFM |
| Input Voltage | 208V AC |
| Phase | Three-phase |
| Frequency | 60 Hz |
| Electrical Consumption (Max) | 4800W |
| Maximum Input Current | 16A |
| Input Connection | 3-wire / 4-wire + Ground |
| Form Factor | In-row, 42U |
| Width | 300 mm (11.8 in) |
| Dimensions (H x W x D) | 78.7 x 11.8 x 43.3 in |
| Weight | 397 lbs |
| Compressor Type | Inverter-driven rotary |

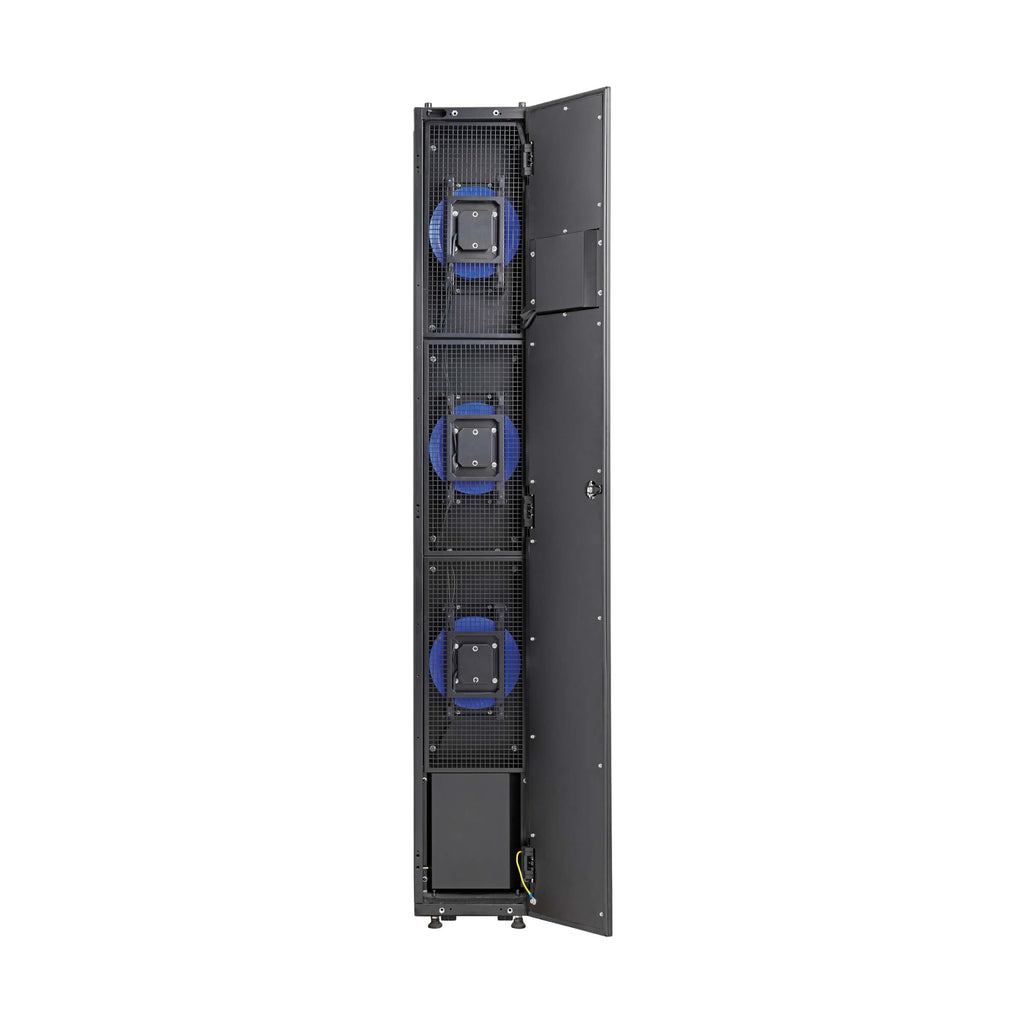

| Fan Configuration | 3 EC fans (0–2000 RPM) |
| Refrigerant | R410A (eco-friendly, non-ozone depleting) |
| Refrigerant Charge | 12.1 lb (5.0 kg) |
| Noise Level | 68 dBA |
| Operating Temperature Range | -4°F to 115°F (-16°C to 46°C) |
| Operating Humidity | 5% to 80% RH |
| Elevation Range | Up to 13,123 ft (4000 m) |
| Condensate Drain | Pump system, 1/4 in connection |
| User Interface | 7-inch color touchscreen display |
| Remote Management | SNMP, HTTP(S), SSH/Telnet via WEBCARDLXMINI |
| Airflow Configuration | Front and/or side discharge |
| Installation Flexibility | Top or bottom cable entry; modular placement |

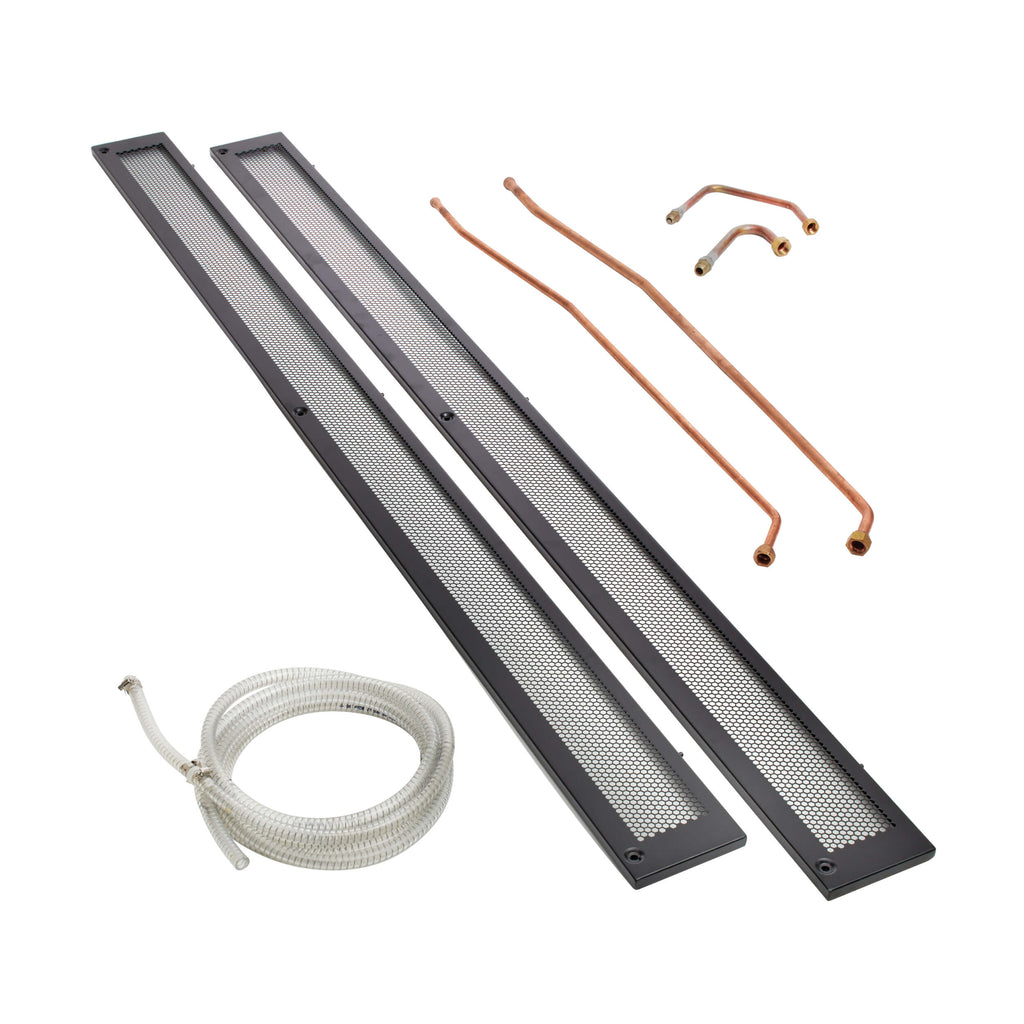

| Included Components | Indoor unit, outdoor condenser, airflow panels, hardware kit |
| Compliance | UL, CSA, NOM, FCC Class A, RoHS |
| Warranty | 1-year limited warranty |
