Description

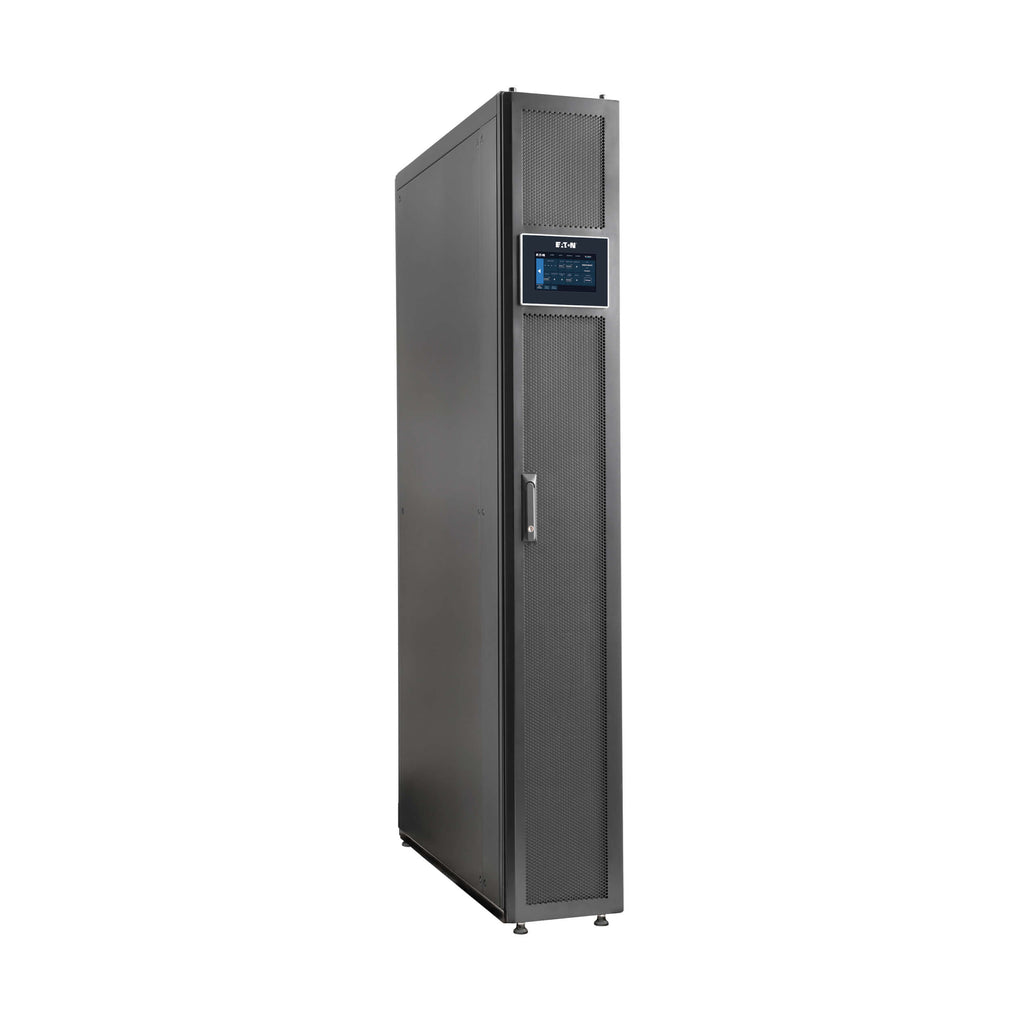

The Eaton In-Row Precision Cooling System delivers high-performance, close-coupled cooling for small to medium data centers and high-density IT environments. With a powerful 25.8 kW (88,000 BTU/hr) cooling capacity, this system is engineered to remove heat at the source, improving efficiency and maintaining optimal operating conditions for mission-critical equipment.
Designed with a slim 300 mm footprint, it integrates seamlessly within standard rack rows, maximizing valuable floor space while providing targeted cooling exactly where it is needed. The direct expansion (DX) technology, combined with inverter-driven compressors and EC fans, dynamically adjusts performance based on heat load, reducing energy consumption and extending equipment lifespan.
The intuitive color touchscreen interface provides real-time monitoring, system control, and configuration access, while the integrated network management card enables remote monitoring and alerts for proactive maintenance. With flexible airflow configurations, hot-swappable components, and scalable deployment options, this system is ideal for evolving data center environments requiring reliable and efficient thermal management.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | SRCOOLDXRW25 |
| Cooling Capacity | 25.8 kW (88,000 BTU/hr) |
| Cooling Technology | Direct Expansion (DX) |
| Airflow | Up to 2,950 CFM |
| Form Factor | In-Row, 42U |
| Width | 300 mm |
| Input Voltage | 208V AC |
| Phase | Three-phase power input for stable and consistent operation |
| Frequency | 60 Hz |
| Maximum Input Power | 10 kW electrical consumption |
| Maximum Input Current | 27A |
| Compressor Type | Inverter-driven rotary compressor for adaptive performance |

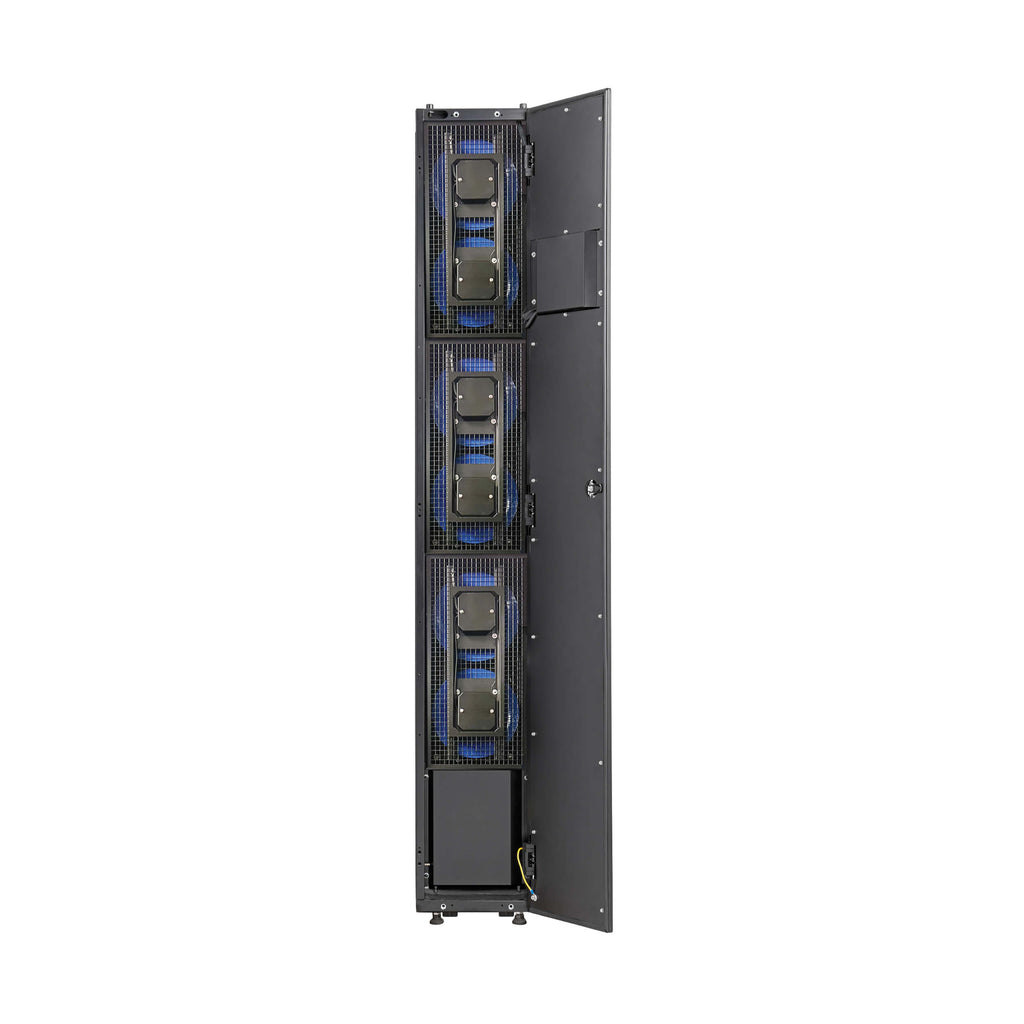

| Fan Type | Electronically commutated (EC) variable-speed fans |
| Refrigerant Type | R410A environmentally friendly refrigerant |

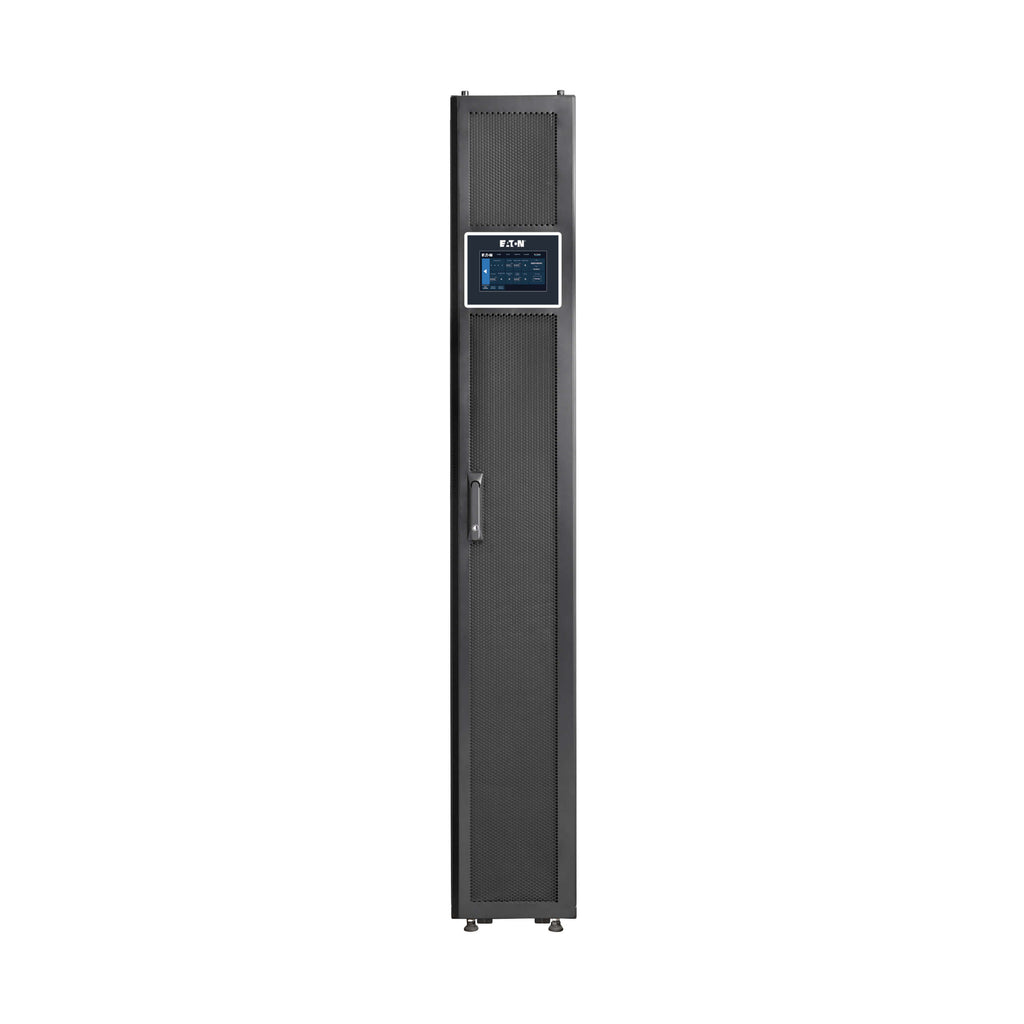

| User Interface | 7-inch color touchscreen for monitoring and control |
| Remote Management | Integrated network interface supporting SNMP, HTTP(S), SSH |
| Airflow Configuration | Configurable front and/or side discharge options |
| Installation Type | In-row, close-coupled cooling deployment |
| Operating Temperature Range | 4° to 115°F (-16° to 46°C) |
| Operating Humidity Range | 5% to 80% relative humidity |
| Noise Level | 68 dBA during operation |
| Construction Material | Durable aluminum and steel housing |
| Unit Dimensions (H x W x D) | 78.7 x 11.8 x 43.3 inches |
| Unit Weight | 437 lbs |
| Condensate Management | Integrated pump with automatic drainage and leak detection |
| Scalability | Supports N+1 redundancy for high availability environments |

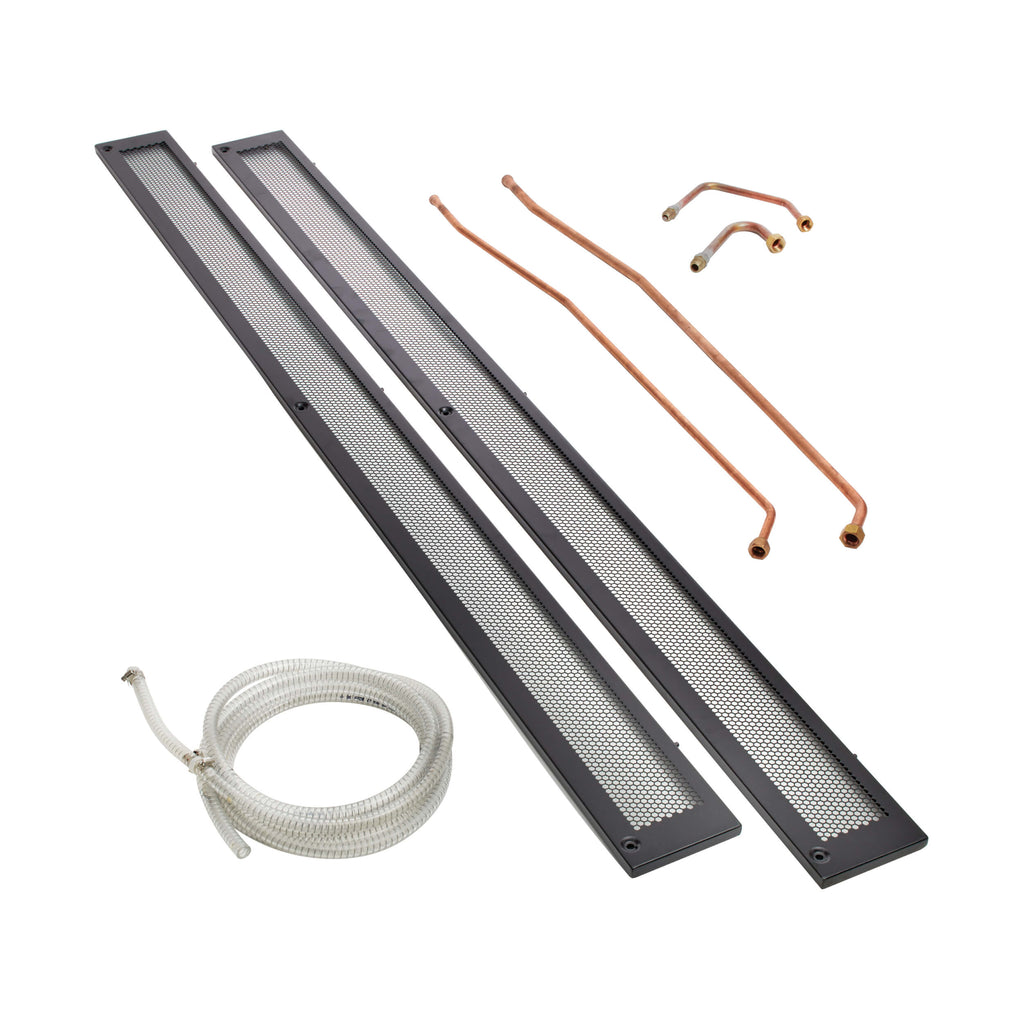

| Included Components | Indoor cooling unit, outdoor condenser, airflow panels, hardware kit |
| Warranty | 1-year limited manufacturer warranty |
