Description

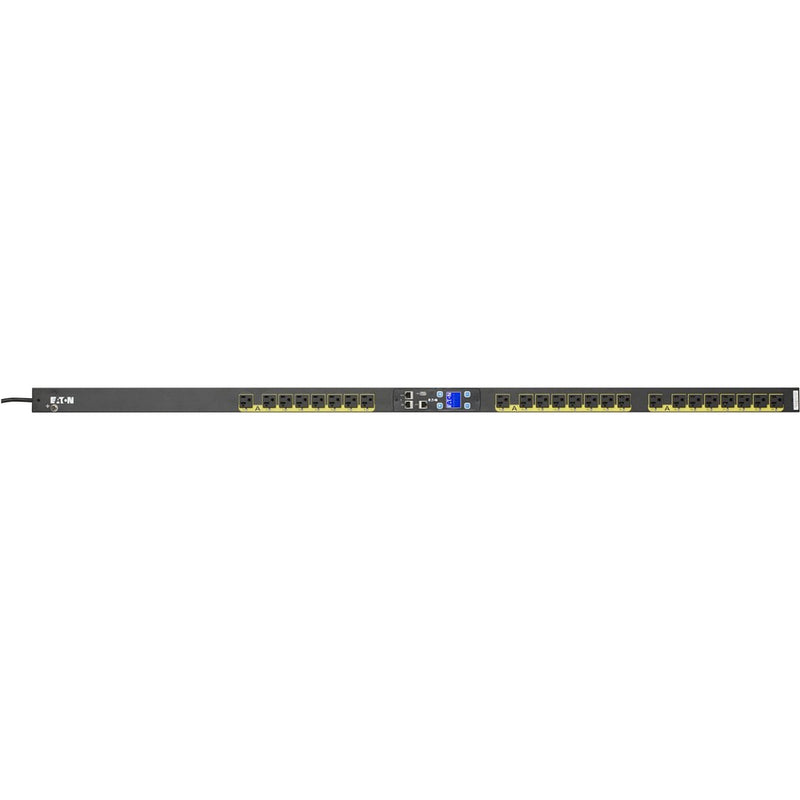

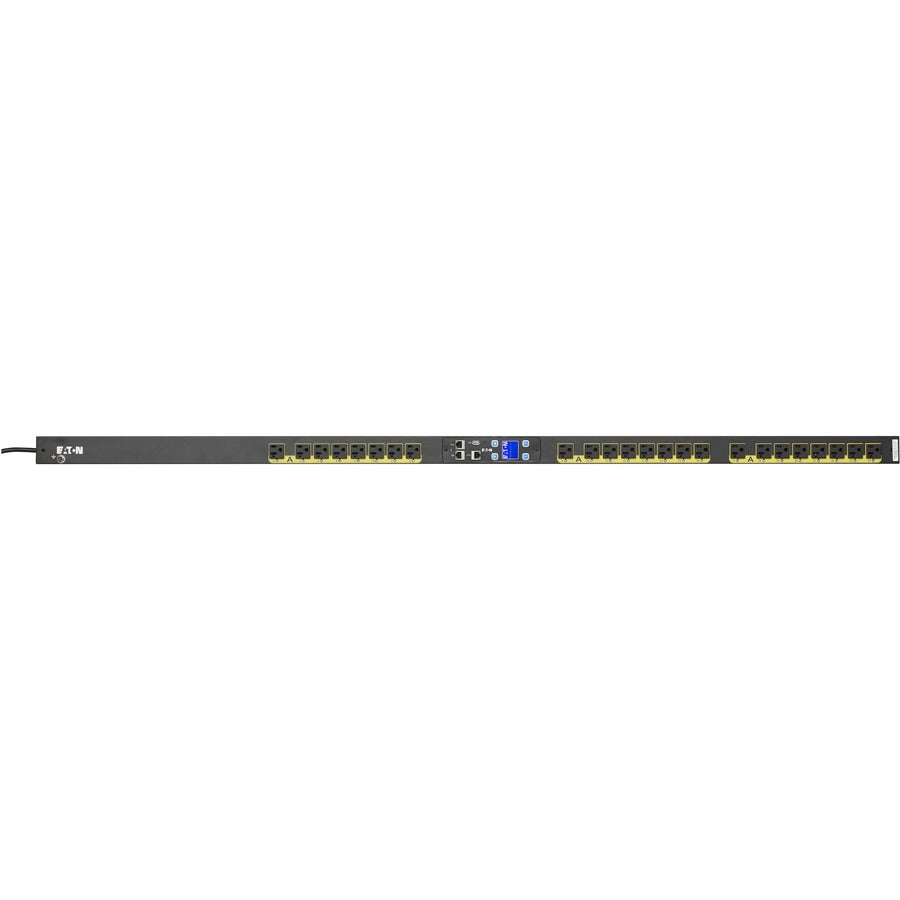

The Eaton EMA114-10 is a single-phase managed power distribution unit (PDU) engineered for reliable power management in high-density IT environments. Featuring 24 managed 5-20R outlets, a 10-foot cord, and L5-20P input plug, this 0U vertical rackmount PDU delivers up to 1.92kW of power at 120V and 16A.
Designed for secure and intelligent power control, the EMA114-10 includes outlet-level switching and RS-232 interface, allowing remote management and monitoring. It's ideal for data centers and enterprise environments requiring TAA compliance, enhanced visibility, and precise load management.
| Specification | Details |
|---|---|
| Product Name | Eaton Managed PDU |
| Catalog Number | EMA114-10 |
| UPC | 743172078919 |
| Form Factor | 0U (Vertical) |
| Phase | Single-phase |
| Input Voltage | 120V |
| Amperage Rating | 16A |
| Wattage | 1.92 kW max |
| Input Connection | NEMA L5-20P |
| Cord Length | 10 ft |
| Output Receptacles | 24 × 5-20R |
| Frequency Rating | 50–60 Hz |
| Outlet Control | Yes (Managed) |
| Serial Interface | RS-232 |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Dimensions (L × W × H) | 66.5 in × 2.05 in × 2.09 in |
| Product Weight | 15.9 lb |
| Warranty | 3-Year |
| Certifications | UL Listed |
| Compliances | RoHS Compliant, TAA Compliant |
