Description

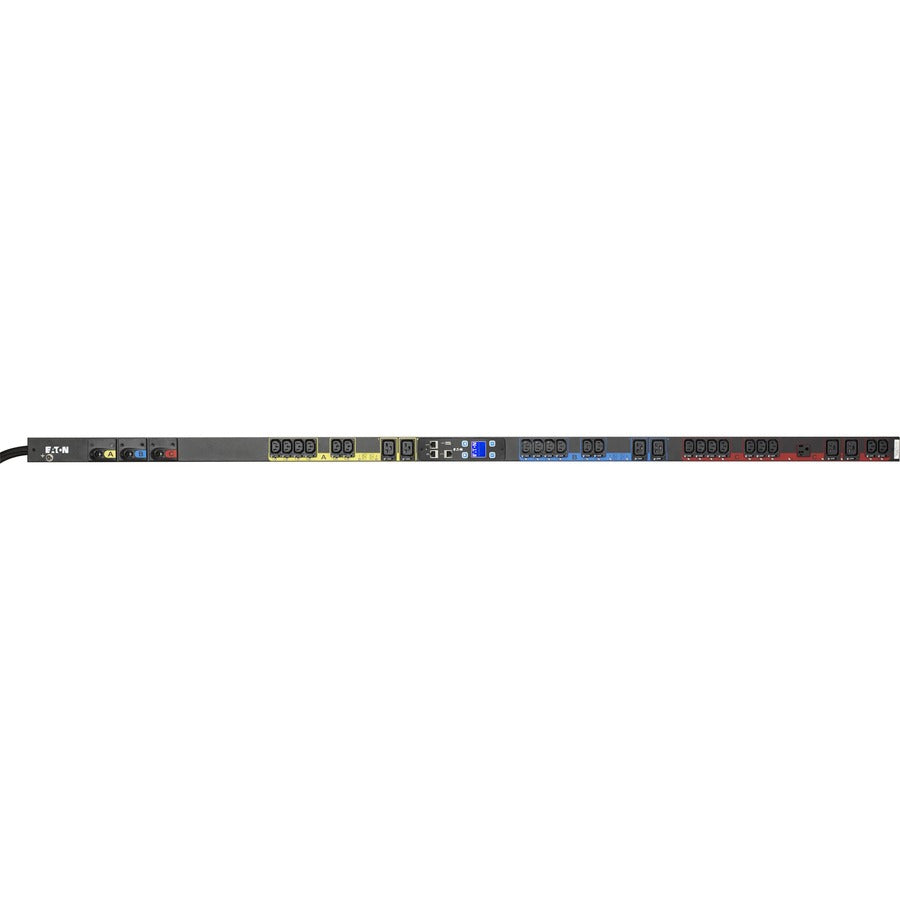

Power your critical IT infrastructure with precision using the Eaton EMA333-10 Managed PDU. Designed for high-density environments, this 0U vertical rackmount unit delivers robust three-phase power distribution with 8.64kW capacity at 120/208V, supporting up to 28 outlets including (21) C13, (6) C19, and (1) 5-20R.
This advanced managed PDU features individual outlet control and remote monitoring via RS-232, providing data center managers with full visibility and control over power usage. Certified TAA compliant, RoHS compliant, and UL listed, the EMA333-10 offers peace of mind for government and enterprise deployments.
| Feature | Specification |
|---|---|
| Catalog Number | EMA333-10 |
| Form Factor | 0U (Vertical) |
| Phase | Three-phase |
| Input Voltage | 120/208V |
| Input Connection | NEMA L21-30P |
| Cord Length | 10 ft |
| Output Power | 8.64 kW |
| Amperage Rating | 24A |
| Outlets | (21) C13, (6) C19, (1) 5-20R |
| Outlet Control | Yes |
| Frequency | 50–60 Hz |
| Interface | RS-232 Serial |
| Operating Temp | 0° to 60°C (32° to 140°F) |
| Certifications | UL Listed, RoHS Compliant, TAA Compliant |
| Warranty | 3 Years |
| Dimensions (L x W x H) | 72 x 2.05 x 2.56 in |
| Weight | 20.3 lb |
| UPC | 743172078902 |
