Description

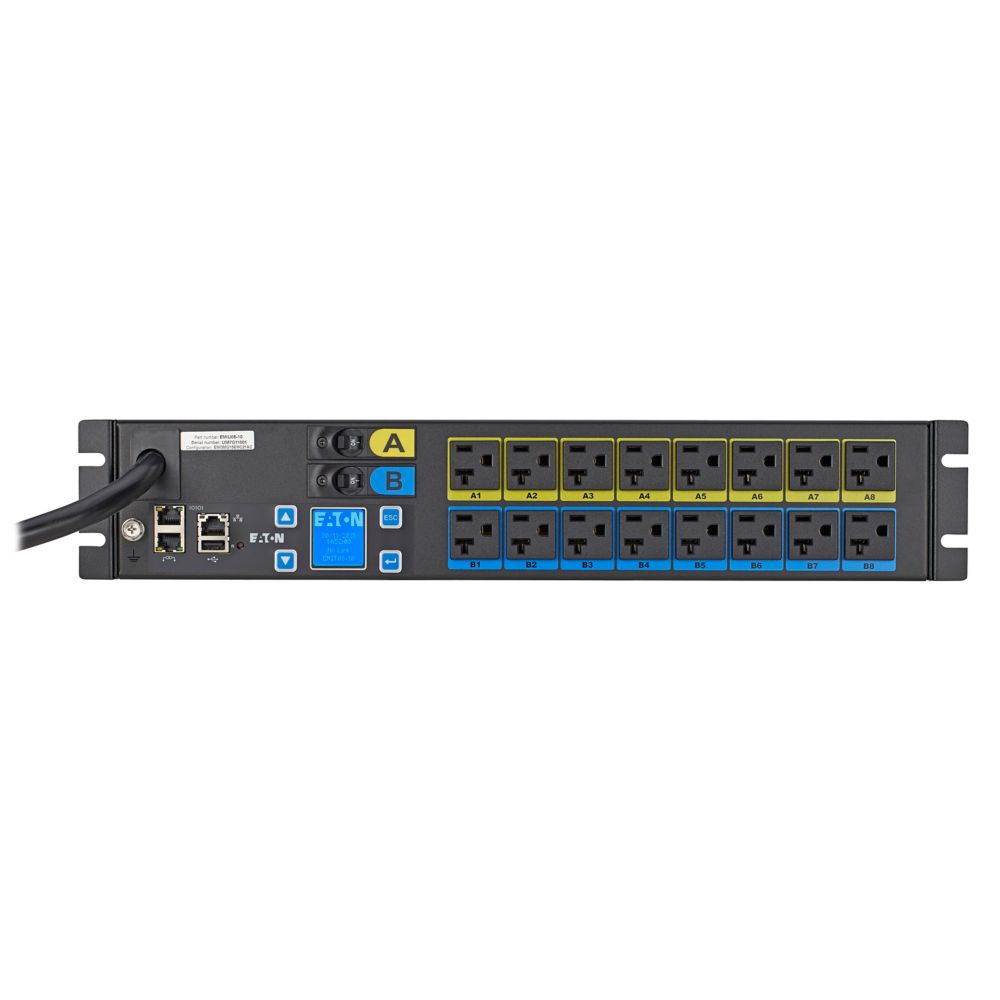

The Eaton EMIU05-10 is a reliable metered input power distribution unit designed for efficient power monitoring in rack-mounted IT and data center environments. Featuring a 2U horizontal form factor, this PDU delivers single-phase 100–127V power through a locking L5-30P input and provides sixteen 5-20R outlets for downstream equipment.
With built-in input metering, the EMIU05-10 enables real-time visibility into power usage, helping prevent overloads and supporting effective capacity planning. Its rugged construction, 10-foot input cord, and wide operating temperature range make it well suited for enterprise racks, network closets, and edge deployments where dependable power distribution is critical.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer Part Number | EMIU05-10 |
| Product Type | Metered Input PDU |
| Form Factor | 2U Rackmount |
| Phase | Single-Phase |
| Input Voltage | 100–127V |
| Input Plug | L5-30P |
| Maximum Load | 2.88 kW |
| Current Rating | 24A |
| Outlets | 16 × NEMA 5-20R |
| Outlet Control | No |
| Cord Length | 10 ft |
| Frequency | 50–60 Hz |
| Mounting Orientation | Horizontal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions (W × D × H) | 19 in × 5 in × 3.4 in |
| Weight | 9.3 lb |
| Certifications | UL Listed |
| Warranty | 3 Years |
