Description

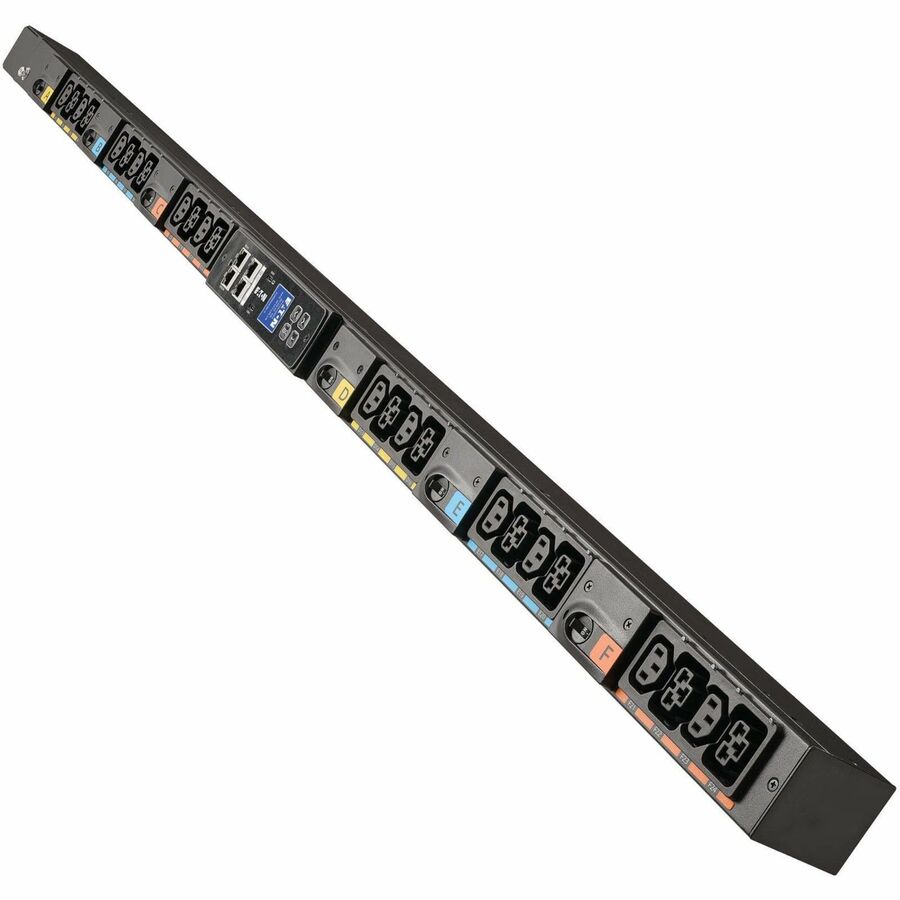

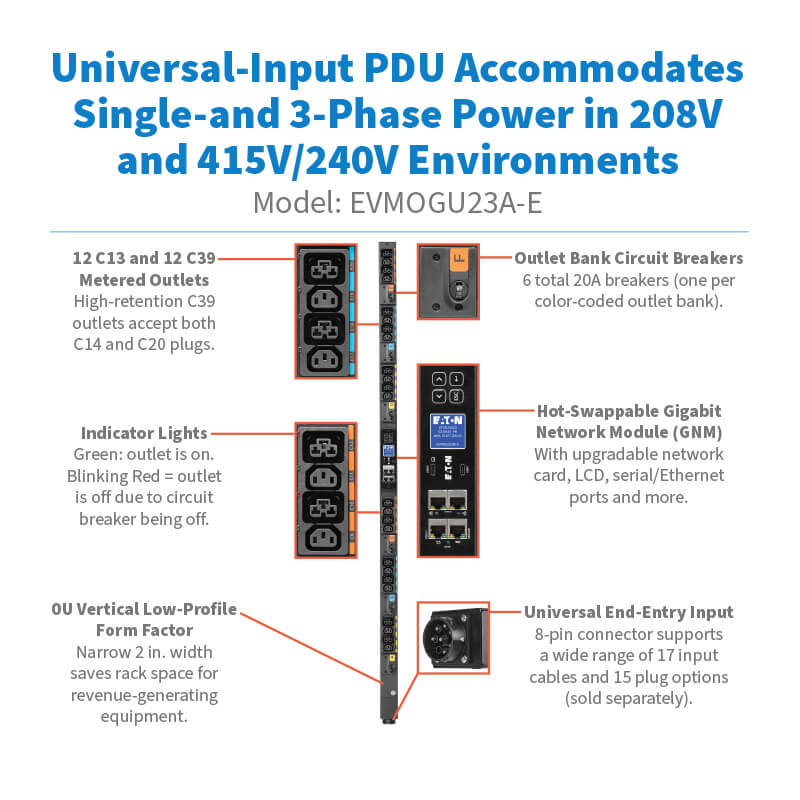

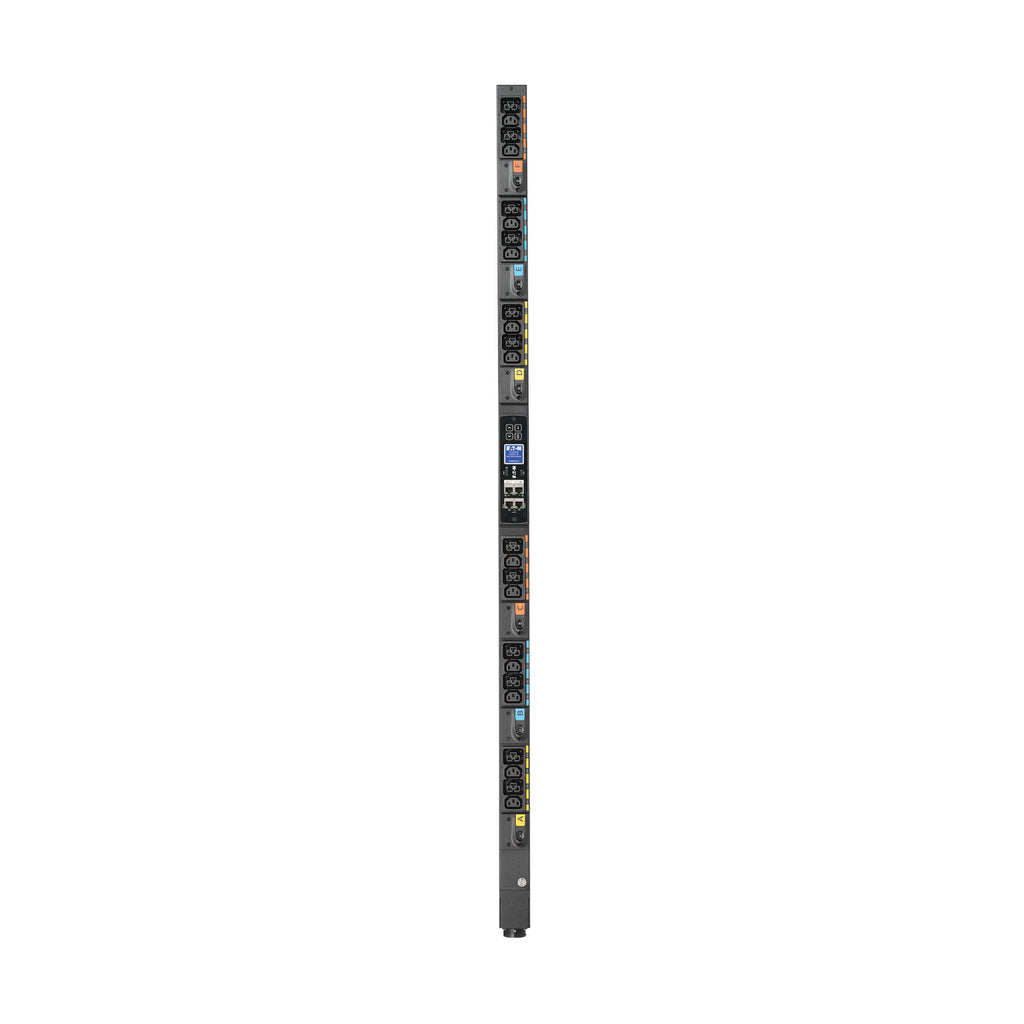

The Eaton EVMOGU23A-E Metered Outlet Rack PDU G4 is a universal input, vertical 0U PDU designed for scalable and secure power distribution in high-density IT environments. With 24 outlets (12 C13 and 12 C39 combo outlets), it accommodates power needs from 5kVA single-phase to 23kVA three-phase, eliminating the need for different PDUs across deployments.
Engineered for efficiency and resilience, this G4 model supports remote management via an embedded, hot-swappable Gigabit Network Module (GNM), enabling outlet-level metering, real-time alerts, and seamless integration with Eaton’s Brightlayer Data Centers suite. Its tool-less 32U vertical mounting, strong cybersecurity, and global compliance make it ideal for enterprise-grade racks and data centers.
| Specification | Details |
|---|---|
| Model Number | EVMOGU23A-E |
| Form Factor | Vertical (0U), 32U Rack Height |
| Input Phase | Single-phase / Three-phase |
| Input Voltage | 208-240V, 415/240V |
| Input Amps | 15–55A (Supports max 63A depending on cordset) |
| Input Connection | Universal Input (cordset sold separately) |
| Output Capacity | Up to 23kW |
| Output Receptacles | (12) C13, (12) C39 (accepts C14 & C20 plugs) |
| Overload Protection | (6) 2-pole 20A circuit breakers (color-coded load banks) |
| Network Management | Embedded GNM (Gigabit), SNMP, Web UI, environmental sensor support |
| Metering & Monitoring | Outlet-level with ±1% accuracy for current, voltage, and power |
| Mounting | Toolless vertical buttons, front/side-facing install |
| Construction | Aluminum chassis, black finish |
| Dimensions (H x W x D) | 55.9 x 2.0 x 2.56 in (141.98 x 5.08 x 6.50 cm) |
| Weight | 11.2 lbs (5.08 kg) |
| Operating Temperature | 32° to 140°F (0° to 60°C) |
| Certifications | IEC 62368-1, ICES (Canada), cTUVus |
| Compliance | CE (Europe), FCC Class A (USA) |
| Warranty | 3-Year Limited Warranty |
| UPC Code | 037332291004 |
