Description

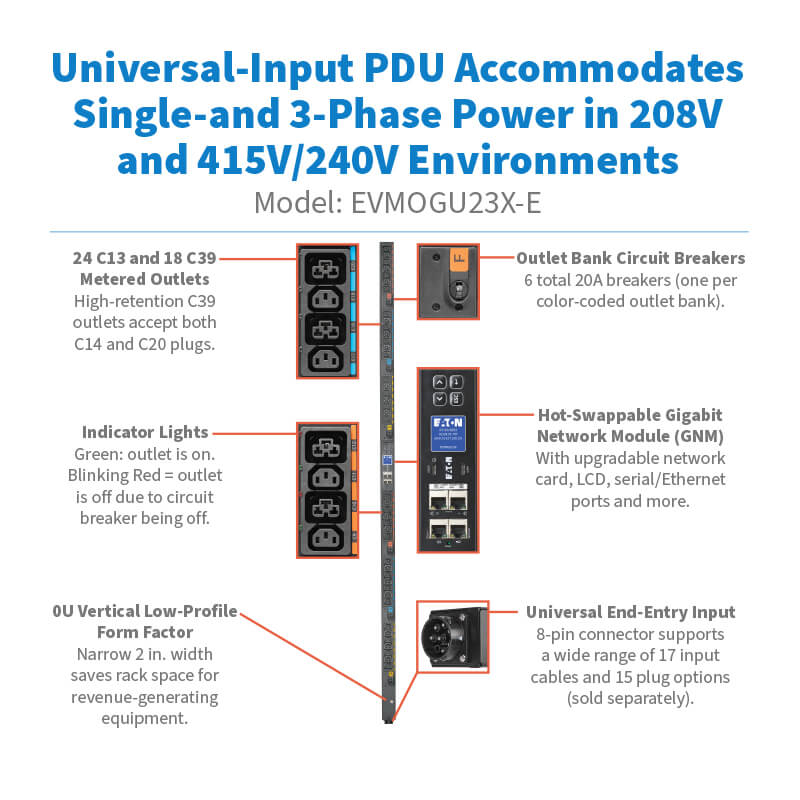

The Eaton EVMOGU23X-E Metered Outlet Rack PDU G4 delivers high-density, scalable power distribution with advanced metering and cybersecurity features. Designed for flexible deployment, it supports universal input with selectable cable options, allowing compatibility from 5kVA single-phase to 23kVA three-phase power. The 0U vertical PDU fits seamlessly into a 41U or taller rack and features 42 outlets—24 C13 and 18 C39 combo outlets—to maximize equipment compatibility and reduce the number of PDUs required. Each outlet is metered for precision monitoring, while the integrated Gigabit Network Module (GNM) enables secure remote management. Ideal for enterprise, colocation, and data center environments needing both efficiency and robust power management.
| Category | Details |
|---|---|
| Model Number | EVMOGU23X-E |
| Form Factor | Vertical (0U), fits 41U or taller racks |
| Input Type | Universal Input, Removable Power Cable (sold separately) |
| Input Voltage Range | 208–240V, 415/240V |
| Input Phase | Single-phase or 3-phase |
| Max Input Current | 63A |
| Power Capacity | 5–23kVA / 23kW / 23000W (based on cordset used) |
| Outlets | 42 Total: (24) C13, (18) C39 (C14/C20 combo) |
| Circuit Protection | (6) 2-pole 20A breakers, load banks are color-coded |
| Metering Type | Outlet-level metering (current, voltage, watts, energy) |
| Networking | Embedded Gigabit Network Module (GNM), SNMP, Daisy-chain up to 40 PDUs |
| Cybersecurity | Chain-of-trust encryption, secure firmware boot, zero-trust architecture |
| Display | LCD pixel display with auto-off, real-time metrics, IP setup, alarm viewing |
| Operating Temp | 0° to 60°C (32° to 140°F) |
| Mounting | Toolless mounting buttons (included) |
| Material | Aluminum, black finish |
| Dimensions (HxWxD) | 72" x 2.00" x 2.56" (182.88 x 5.08 x 6.50 cm) |
| Weight | 13.7 lbs (6.21 kg) |
| Certifications | UL 62368-1, cTUVus, CE, FCC Part 15 Class A |
| Warranty | 3-Year Limited Warranty |
