Description

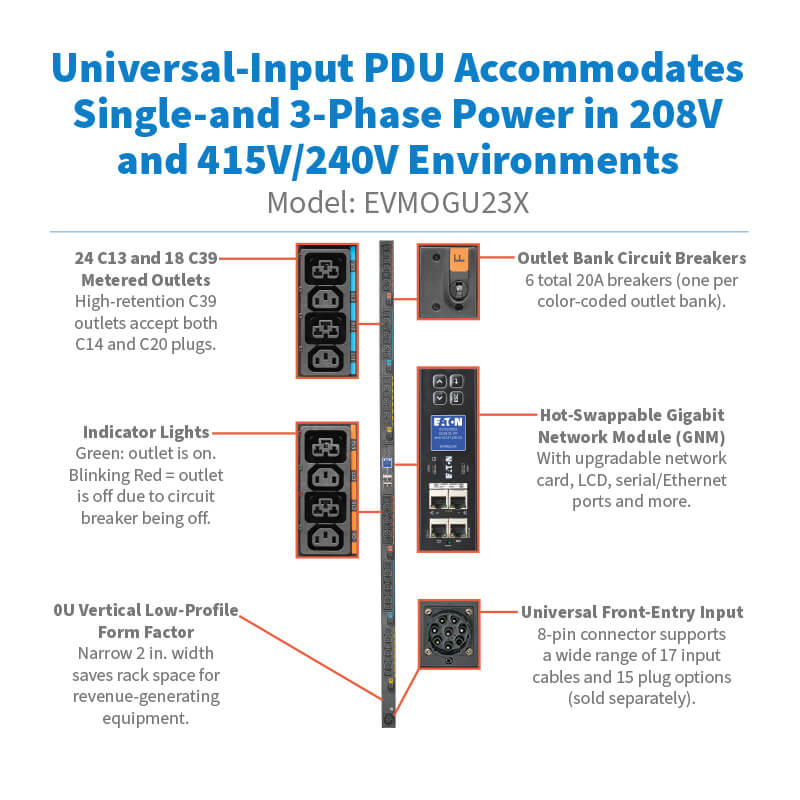

The Eaton EVMOGU23X is a universal-input, metered-outlet Rack PDU (UPDU) G4 that supports single- and three-phase power configurations from 5kW to 23kW, making it ideal for modern, scalable data center environments. With 42 outlets—24 C13 and 18 high-retention C39—the unit accommodates diverse equipment and reduces the need for multiple PDUs. Its embedded Gigabit Network Module (GNM) enables real-time power monitoring, advanced cybersecurity features, and remote management. Designed for vertical 0U installation, this space-saving PDU offers global compliance, robust outlet-level metering, color-coded load banks, and front-entry cord access.
| Category | Details |
|---|---|
| Model Number | EVMOGU23X |
| Form Factor | 0U Vertical |
| Rack Height | 41U (fits 42U or taller racks) |
| Input Type | Universal Input, Hardwired |
| Input Voltage Range | 208–240V, 400V, 415V AC (Single- or 3-Phase) |
| Input Amps | 16–55A (depending on cordset) |
| Input Frequency | 50/60 Hz |
| Output Capacity | Up to 23kW / 23000W / 23kVA |
| Output Receptacles | 24 x C13, 18 x C39 (C14/C20 combo) |
| Circuit Protection | 6 x 2-pole 20A breakers |
| Monitoring Features | Outlet-level metering, ±1% accuracy (amps, volts, watts) |
| Network Interface | Gigabit Ethernet, SNMP, Serial, Daisy-Chain capable |
| Cybersecurity | Chain-of-trust encryption, zero-trust architecture, secure boot |
| Mounting | Toolless shoulder-style buttons (alternative flush-style included) |
| Cord Entry | Front entry |
| Construction | Black aluminum, 2" width, lightweight chassis |
| Environmental Sensors | Supported (sold separately) |
| Dimensions (HxWxD) | 72.00 x 2.00 x 2.56 in (182.88 x 5.08 x 6.50 cm) |
| Weight | 13.7 lbs (6.21 kg) |
| Operating Temp. | 0° to 60°C (32° to 140°F) |
| Certifications | UL 62368-1, IEC 62368-1, CE, FCC Part 15 Class A, RoHS, UKCA, cTUVus |
| Warranty | 3-Year Limited Warranty |
