Description

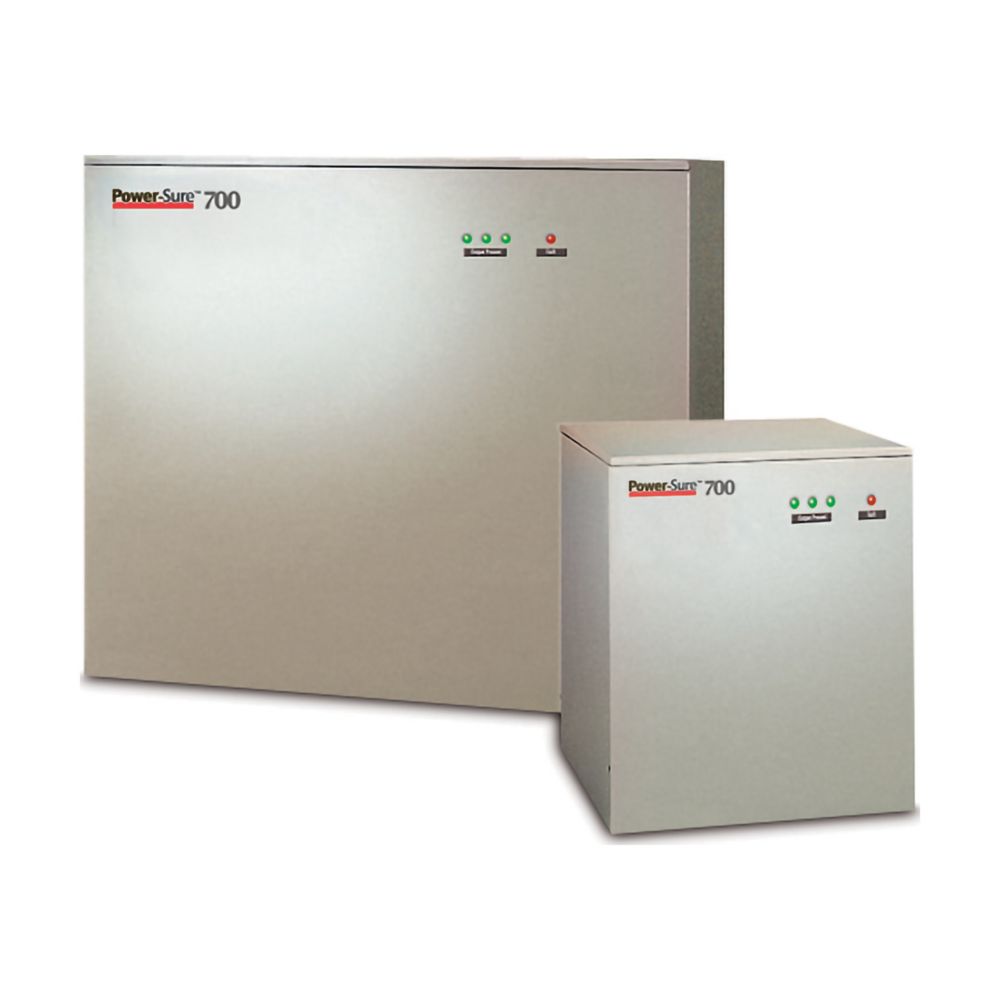

The Eaton Power-Sure 700 TBL-100K-6 is a high-performance metering transformer designed to deliver reliable and efficient power conditioning for sensitive electrical systems. With a 100 kVA capacity, this three-phase transformer features a voltage tolerance of +10% to -20%, delivering output at 208Y/120V. It supports hardwired connections and operates at a typical efficiency of 97%. Ideal for commercial and industrial environments, it includes visual indicators for voltage regulation and over-temperature conditions, and it meets rigorous standards including UL 1012, CSA, FCC Category A, and ANSI/IEEE C62.41.
| Specification | Details |
|---|---|
| Product Name | Eaton Power-Sure 700 |
| Model | TBL-100K-6 |
| Type | Transformer |
| Topology | Line Conditioner |
| Phase | Three-phase |
| Power Rating | 100 kVA |
| Input Voltage | 208 Vac |
| Output Voltage | 208Y/120V |
| Output Connection | Hardwired |
| Efficiency | 97% typical, 95% minimum |
| Bypass | Yes |
| BTU Rating | 11,833 BTU/h |
| Indicators | Voltage regulation (green), over-temp condition (red) |
| Operating Temperature | -10°C to 40°C |
| Dimensions (H x W x D) | 76 in x 34.4 in x 35.5 in |
| Weight | 1,660 lbs |
| Certifications | UL 1012, CSA, FCC Cat. A, ANSI/IEEE Std C62.41 |
| Warranty | 1 Year |
