Description

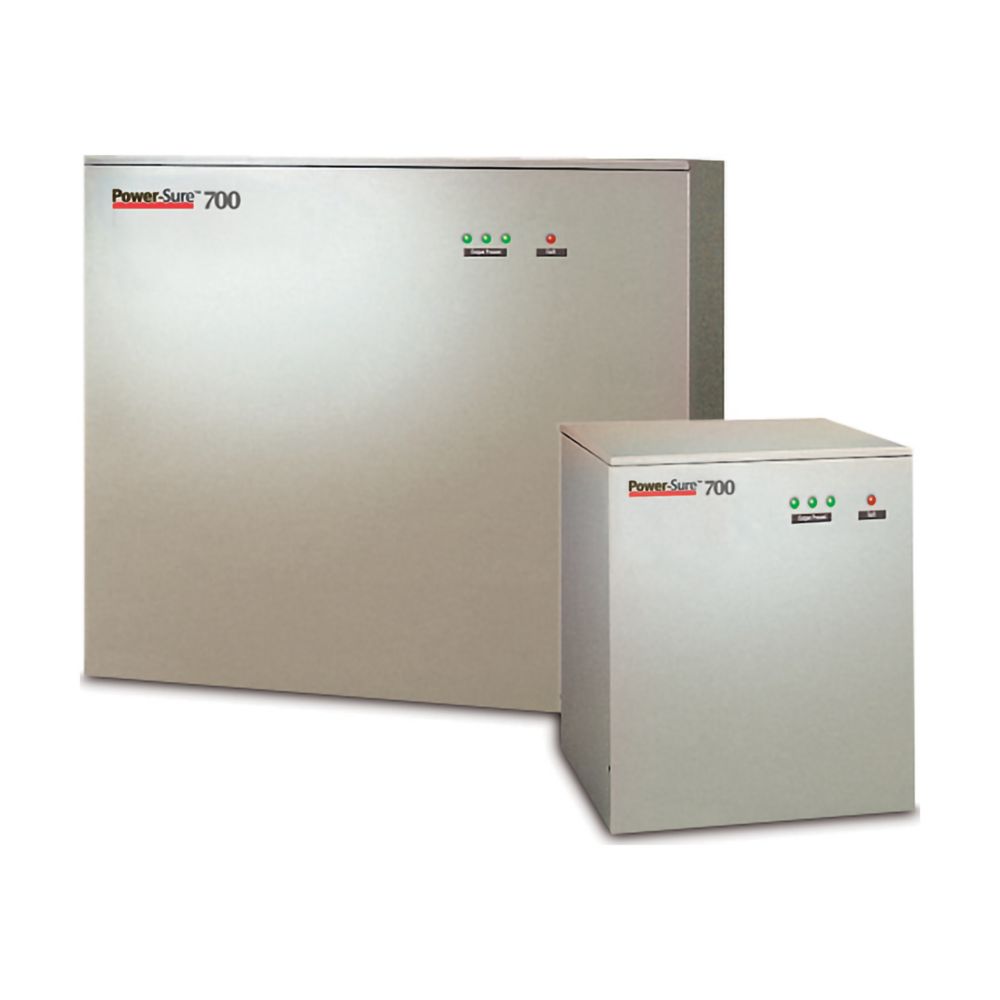

The Eaton Power-Sure 700 TDN-010K-6 Power Conditioner is designed to protect sensitive electronic equipment from power quality issues. With a high efficiency rating of 97% typical and a BTU output of 1025 BTU/h, this three-phase line conditioner offers clean, reliable power at 480Y/277V. Ideal for commercial and industrial applications, the unit includes green regulation voltage indicators and optional bypass capability for added flexibility. Built with a durable transformer-based topology and housed in a compact frame, it meets UL 1012, FCC Cat. A, and CSA certification standards.
| Feature | Specification |
|---|---|
| Product Name | Eaton Power-Sure 700 |
| Catalog Number | TDN-010K-6 |
| UPC | 743172022851 |
| BTU Rating | 1025 BTU/h |
| Phase | Three-phase |
| Voltage Output | 480Y/277V |
| Output Type | Hardwired |
| Efficiency | 97% typical, 95% minimum |
| Topology | Line Conditioner |
| Type | Transformer |
| Bypass | Optional |
| Indicators | Regulation Voltage (green), Over Temp (red) |
| Operating Temperature | -10° to 40°C |
| Certifications | UL 1012, FCC Cat. A, CSA |
| Dimensions (L x W x H) | 29 in x 22.2 in x 30.2 in |
| Weight | 440 lb |
| Warranty | 1 Year |
