Description

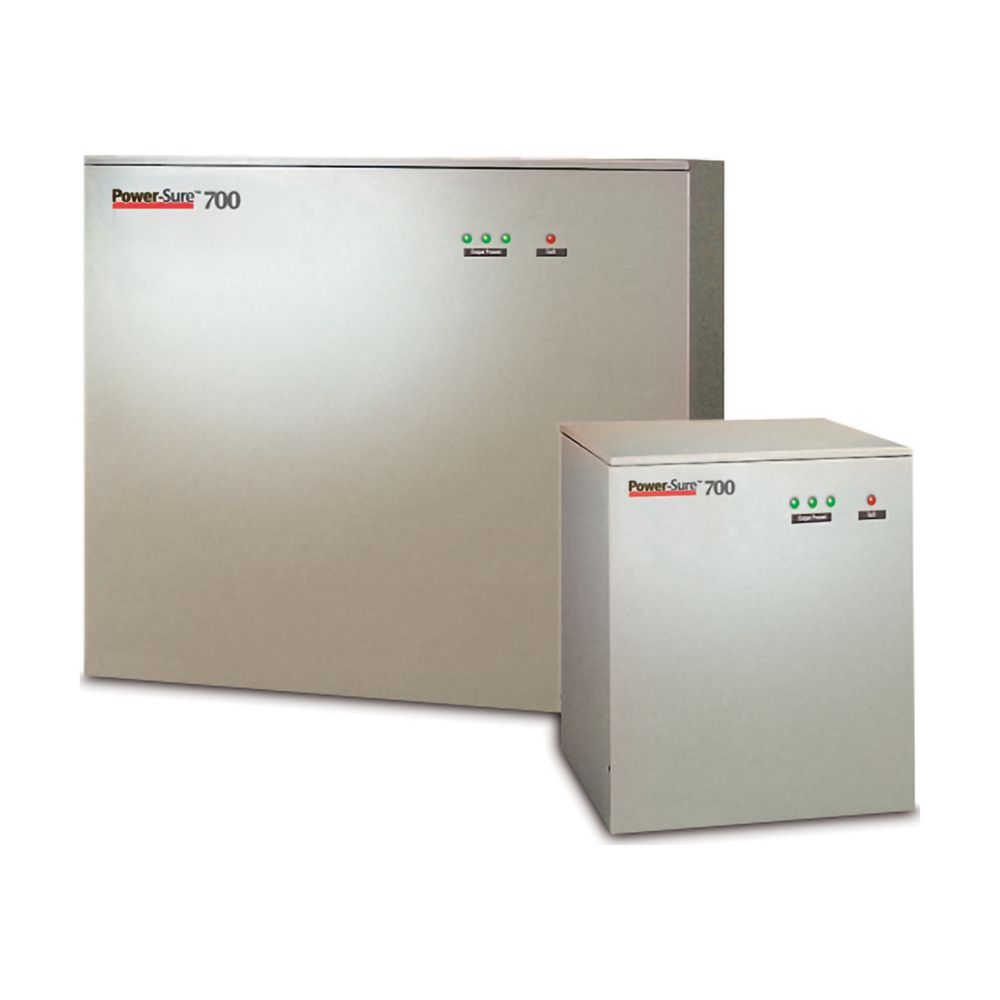

The Eaton Power-Sure 700 TBL-030K-6 power conditioner delivers reliable voltage regulation and power quality in mission-critical environments. With its robust transformer-based design, this three-phase line conditioner offers a typical efficiency of 97% and is capable of delivering 208Y/120V output. The unit features a 3090 BTU/h thermal rating, optional bypass, and built-in voltage and over-temperature indicators. Ideal for IT, medical, and industrial applications requiring clean, regulated power.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Series | Power-Sure 700 |
| Model | TBL-030K-6 |
| UPC | 743172022622 |
| Topology | Line Conditioner |
| Type | Transformer |
| Phase | Three-phase |
| Output Voltage | 208Y/120V |
| Output Type | Hardwired |
| BTU Rating | 3090 BTU/h |
| Efficiency | 97% typical, 95% minimum |
| Indicators | Reg volt (3 green), Over temp (red) |
| Bypass | Optional |
| Model Type | Metering |
| Certifications | UL 1012, CSA Certified, FCC Class A |
| Operating Temperature | -10°C to 40°C |
| Dimensions (HxWxD) | 44.2" x 22.2" x 29" |
| Weight | 720 lb |
| Warranty | 1 Year |
