Description

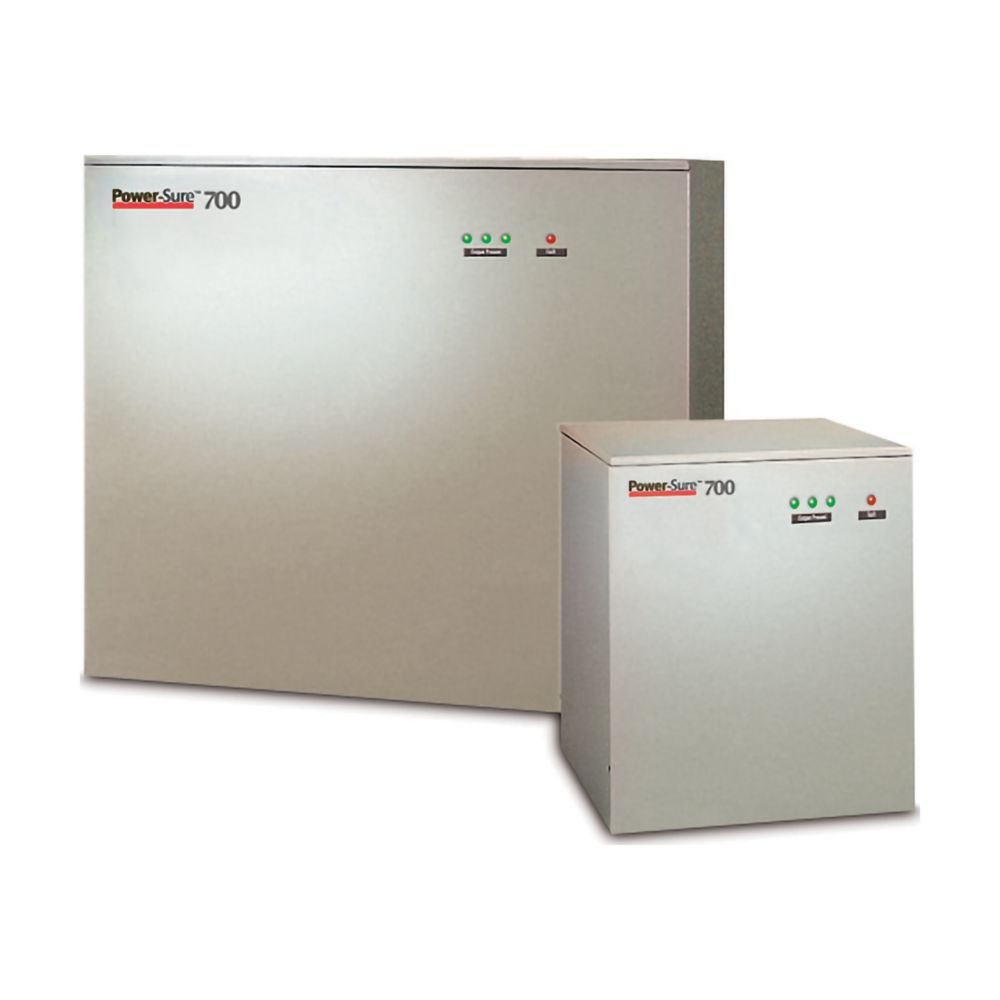

Ensure clean, continuous power for your sensitive equipment with the Eaton Power-Sure 700 TDN-100K-6 Power Conditioner. Engineered for demanding three-phase environments, it delivers consistent voltage regulation with high efficiency—97% typical and 95% minimum. This unit operates at 480Y/277V and is rated at 11,833 BTU/h, making it ideal for data centers, industrial systems, and mission-critical infrastructure. Certified to UL 1012, CSA, and FCC Class A, the Power-Sure 700 features status indicators, transformer-based topology, and a built-in bypass for service flexibility. Housed in a robust cabinet, it includes metering and hardwired output for permanent installations.
| Specification | Details |
|---|---|
| Product Name | Eaton Power-Sure 700 Power Conditioner |
| Model Number | TDN-100K-6 |
| UPC | 743172022905 |
| Topology | Line Conditioner |
| Transformer Type | Isolation Transformer |
| Input/Output Voltage | 480Y/277V |
| Phase | Three-phase |
| Efficiency | 97% typical, 95% minimum |
| BTU Rating | 11,833 BTU/h |
| Output Type | Hardwired |
| Bypass | Yes |
| Indicators | Green (Reg Volt), Red (Over Temp) |
| Operating Temp | -10°C to 40°C |
| Mounting Type | Floor-standing cabinet |
| Dimensions (HxWxD) | 76 in x 34.4 in x 35.5 in |
| Weight | 1660 lb |
| Certifications | UL 1012, CSA, FCC Class A, IEEE C62.41 |
| Warranty | 1 Year |
