Description

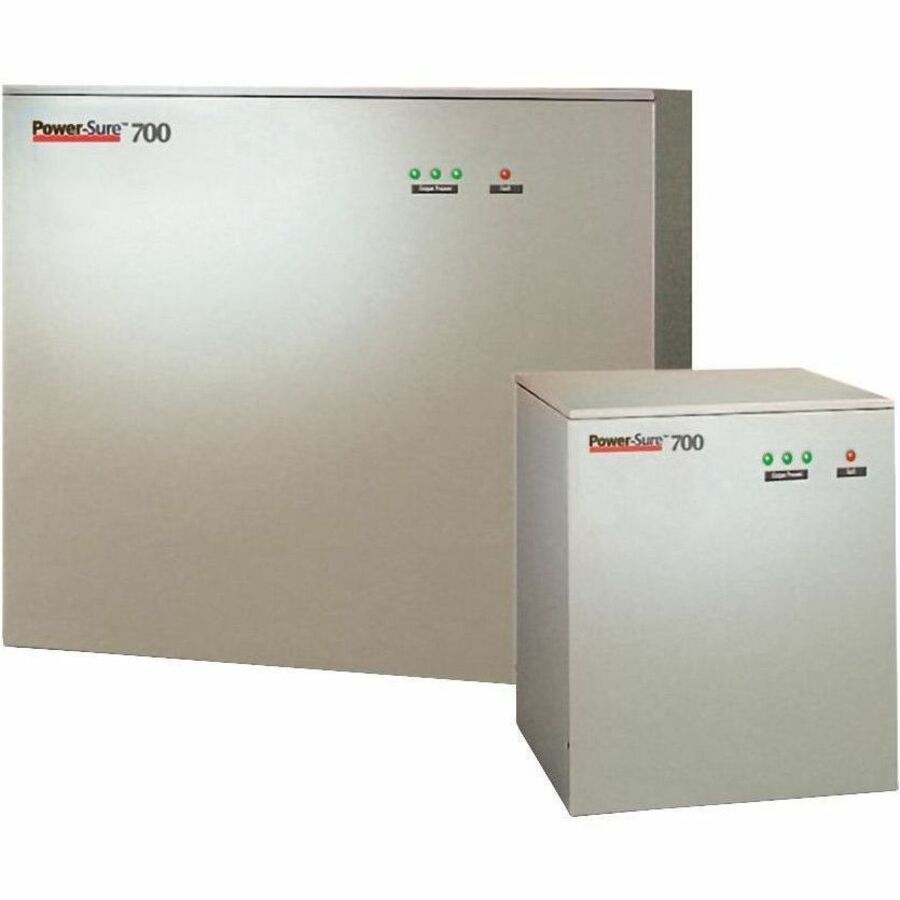

The Eaton Power-Sure 700 TDN-075K-6 Power Conditioner is a robust and efficient power protection solution designed for mission-critical environments. Engineered for 3-phase systems, it delivers consistent 480Y/277V output with high energy efficiency—97% typical, 95% minimum. Its transformer-based design and hardwired output ensure stable voltage regulation and conditioning. With 9514 BTU/h cooling capacity, ANSI/IEEE and UL certifications, and convenient bypass capability, the TDN-075K-6 is built to meet the demands of sensitive equipment in industrial, IT, and commercial applications.
| Specification | Details |
|---|---|
| Product Name | Eaton Power-Sure 700 Power Conditioner |
| Catalog Number | TDN-075K-6 |
| UPC | 743172022899 |
| Power Rating | 75 kVA |
| BTU Rating | 9514 BTU/h |
| Phase | Three-phase |
| Topology | Line Conditioner |
| Type | Transformer |
| Bypass | Included |
| Efficiency | 97% typical, 95% minimum |
| Output Voltage | 480Y/277V |
| Output Connection | Hardwired |
| Indicators | Reg volt (green), Over temp (red) |
| Operating Temp | -10° to 40°C |
| Model | Metering |
| Certifications | FCC Class A, ANSI/IEEE C62.41, CSA, UL 1012 |
| Product Dimensions | 76 in (H) x 34.4 in (W) x 35.5 in (D) |
| Product Weight | 1100 lb |
| Warranty | 1 Year |
