Description

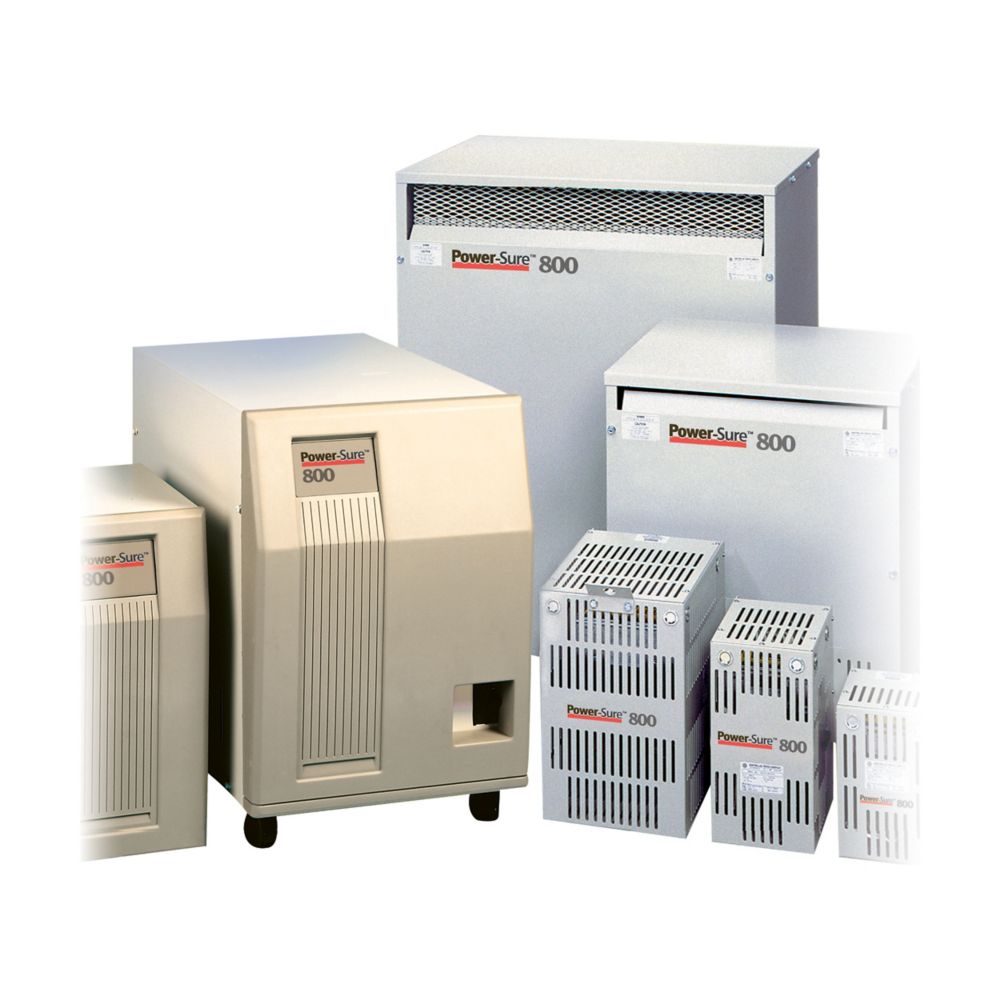

The Eaton Power-Sure T800F-15000 Line Conditioner is a robust 15,000 VA single-phase floor-mount solution designed to deliver clean, regulated, and isolated power to sensitive electronic and industrial equipment. Built on a ferroresonant transformer design, this conditioner offers exceptional protection against voltage sags, surges, harmonics, and electrical noise.
Ideal for mission-critical applications in industrial, medical, and data environments, the T800F-15000 ensures high reliability with a passive, convection-cooled design. Featuring advanced noise attenuation (up to 140 dB common mode), voltage regulation within ±3%, and MTBF of 200,000 hours, this model is engineered to protect against even the harshest power conditions.
| Specification | Details |
|---|---|
| Model | T800F-15000 |
| Type | Single-Phase Line Conditioner |
| Power Rating | 15,000 VA / 15,000 W |
| Input Voltage Range (configurable) | 208/240/480 V (Range 2) |
| Output Voltage Options | 120/208/240 V (Range 3) |
| Input Interface | Hardwired |
| Output Interface | Hardwired |
| Line Voltage Regulation | ±2% @ 100% load; ±3% @ 25–75% load |
| Load Regulation | ±3% for 0–100% load change |
| Power Factor Correction | ≥0.95 with input PF as low as 0.6 |
| Harmonic Attenuation | –23 dB |
| Noise Attenuation | 120 dB (transverse), 140 dB (common mode) |
| K-Factor | 30 |
| Surge Protection | UL 1449, ANSI/IEEE Cat. B3, 330 V rating |
| Frequency | 60 Hz only (not compatible with 50 Hz) |
| Audible Noise | 52–56 dB @ 1 meter (A scale) |
| Efficiency | 90–92% |
| BTU/hr (Thermal Output) | 5115 |
| Enclosure Type | NEMA Type 1, indoor use |
| Cabinet Dimensions (W x D x H) | 35.00 x 25.00 x 39.50 in (889 x 635 x 1003 mm) |
| Weight | 830 lb (376 kg) |
| Certifications | UL, cUL, NEMA PE 1/250, FCC Class A, ISO 9001 |
| MTBF | 200,000 hours |
