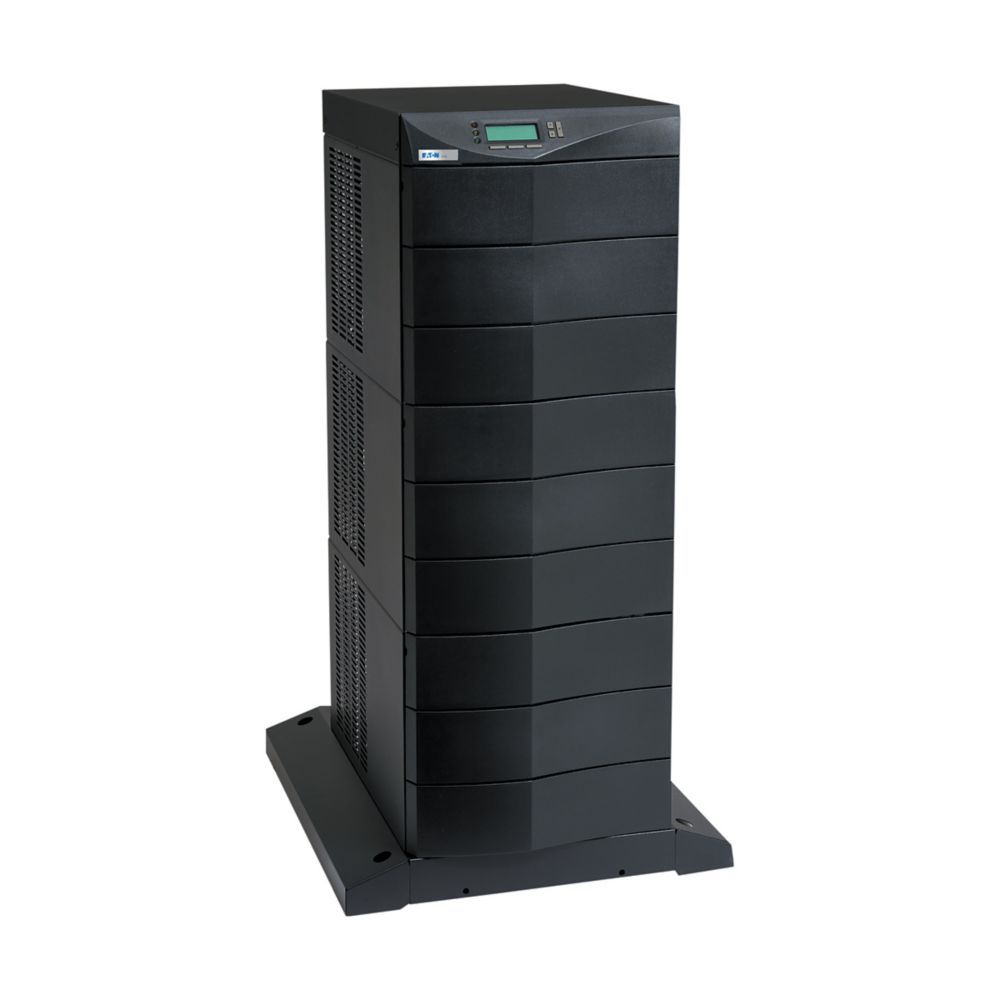

Description
The Eaton 9170+ PW3S3K UPS is a scalable, double-conversion online power protection system engineered for high-performance IT, telecom, and industrial environments. Designed with a compact 3-slot enclosure, it delivers 3kVA of clean, continuous power and features advanced battery management (ABM) technology to extend battery life and optimize runtime. With hot-swappable sealed lead-acid batteries and high energy efficiency (88% at full load), the PW3S3K ensures reliability, availability, and flexibility in mission-critical applications.
| Category | Specification |
|---|---|
| Model Number | PW3S3K |
| UPC | 743172066237 |
| Product Type | Online Double-Conversion UPS |
| Load Capacity | 3 kVA / 2.5 kW |
| Input Voltage Range | 176–276 V |
| Input Connection | Fixed Connection |
| Input Power Factor | 0.98 |
| Output Connection | Fixed Connection |
| Output Topology | Online / Double-Conversion |
| Battery Type | Hot-swappable sealed lead-acid |
| Battery Management | ABM Technology, 3-stage charging |
| Enclosure Type | 3-Slot Enclosure |
| Efficiency (Max Load) | 88% |
| Communication Ports | RS-232 (DB9) |
| User Interface | 4x20 character programmable backlit display |
| Expansion Slots | 2 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Noise Level | <50 dB at 1 meter |
| Relative Humidity | 50–90% (non-condensing) |
| Dimensions (HxWxD) | 19.5 x 17 x 25.5 in |
| Weight | 155 lb |
| Color | Black |
| Certifications | UL Listed, cUL Listed, FCC Class A, ANSI/IEEE C62.41 |
| Warranty | 2 Years |
