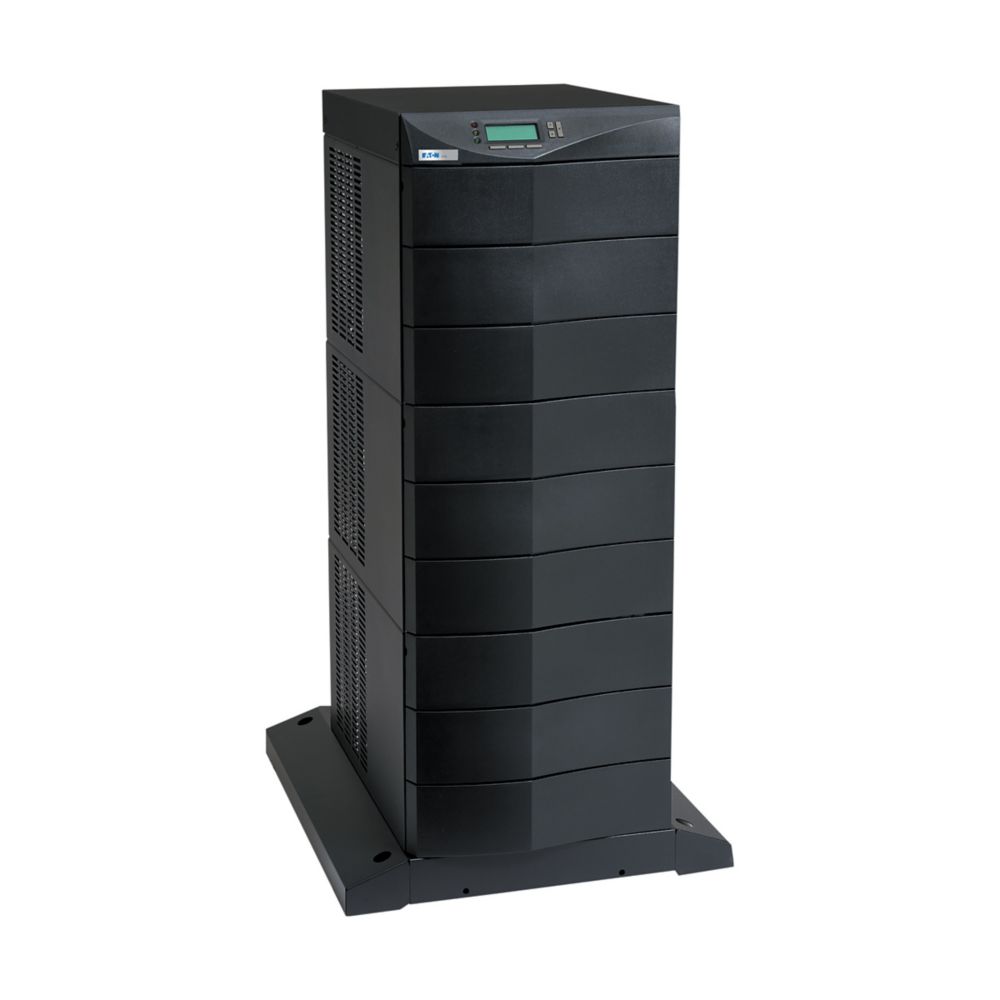

The Eaton Powerware 9170+ PW6S6K-PD is a scalable, modular 6 kVA UPS designed for high-availability IT, data center, and industrial environments. Featuring true online double-conversion technology and a 6-slot flexible enclosure, it delivers robust, continuous power protection with ABM battery management to extend battery life. This model includes hot-swappable batteries, fixed input connections, versatile receptacle outputs, and a programmable LCD display for intelligent system monitoring. The PW6S6K-PD ensures efficient, low-noise operation, making it ideal for space-constrained, mission-critical installations.
| Category | Details |
|---|---|
| Model | Eaton 9170+ PW6S6K-PD |
| Power Capacity | 6 kVA / 5 kW |
| Topology | Online / Double-conversion |
| Input Voltage Range | 176–276 V |
| Input Connection | Fixed connection |
| Input Power Factor | 0.98 |
| Output Receptacles | (2) L14-30R, (2) L6-30R, (12) 5-20R |
| Battery Type | Sealed lead-acid |
| Battery Features | Hot-swappable; ABM technology (3-stage charging) |
| User Interface | 4x20 backlit LCD, programmable |
| Expansion Slots | 2 |
| Noise Level | <50 dB at 1 meter |
| Operating Temp. | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 50–90% non-condensing |
| Efficiency (Max Load) | 88% |
| Enclosure | 6-slot, black |
| Dimensions (W x D x H) | 17 x 25.5 x 33.3 in |
| Weight | 269 lb |
| Certifications | UL Listed, cUL Listed, FCC Cat. A, ANSI/IEEE C62.41 |
| Warranty | 2 years |
| Communications | RS-232 (DB9) |
| Phase (Input) | Single-phase |
| Catalog Number | PW6S6K-PD |
| UPC | 743172066305 |
