Description

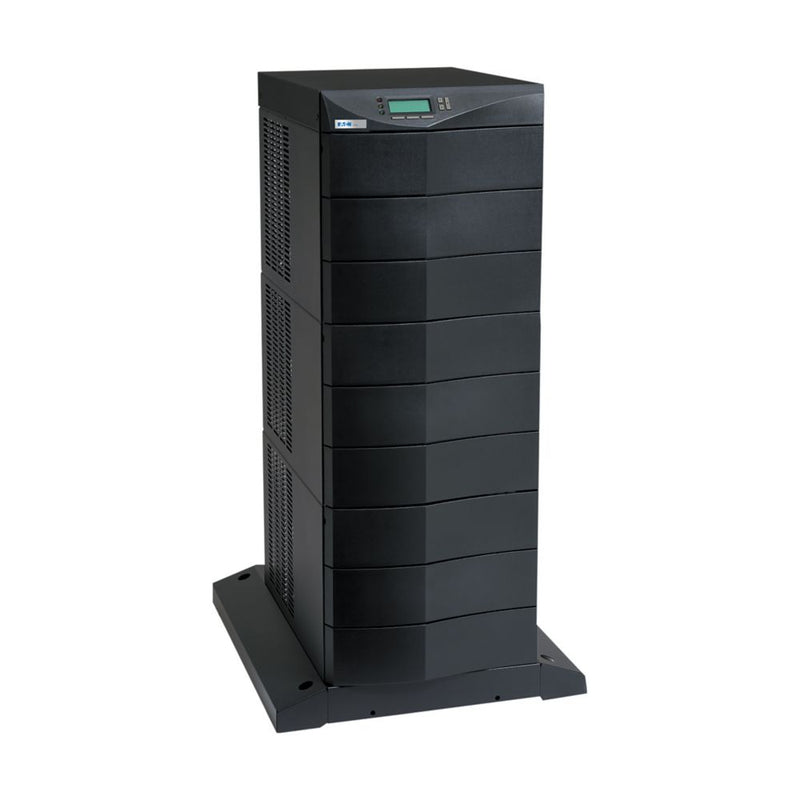

The Eaton 9170+ PW6S9K is a robust 9 kVA online UPS system designed for mission-critical environments such as data centers, healthcare, industrial, and telecom applications. With double-conversion topology, a power output of 7.5 kW, and advanced ABM® battery management technology, it ensures high-efficiency protection and extended battery life.
This UPS features a 6-slot black enclosure, hot-swappable sealed lead-acid batteries, and programmable user interface for simplified management. Certified to UL, cUL, ANSI/IEEE, and FCC standards, the Eaton PW6S9K delivers reliable, clean power with quiet operation and excellent performance in demanding conditions.
| Category | Details |
|---|---|
| Product Name | Eaton 9170+ UPS |
| Catalog Number | PW6S9K |
| VA Rating | 9 kVA |
| Wattage Output | 7.5 kW |
| Topology | Online / Double-conversion |
| Battery Type | Sealed, Lead-acid |
| Battery Replacement | Hot-swappable |
| Battery Management | ABM® Technology – 3-stage charging |
| Input Voltage Range | 176–276 V |
| Input Power Factor | 0.98 |
| Input Connection | Fixed connection |
| Output Receptacle | Fixed connection |
| Efficiency (Max Load) | 88% |
| Phase (Input) | Single-phase |
| Enclosure Type | 6-slot |
| Color | Black |
| User Interface | 4x20 character backlit display |
| Communication Ports | RS-232 (DB9) |
| Expansion Slots | 2 |
| Noise Level | <50 dB at 1 meter |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 50–90% non-condensing |
| Dimensions (H x W x D) | 33.3 in x 17 in x 25.5 in |
| Weight | 346 lb |
| Certifications | UL, cUL, ANSI/IEEE C62.41, FCC Cat. A |
| Warranty | 2 Years |
