Description

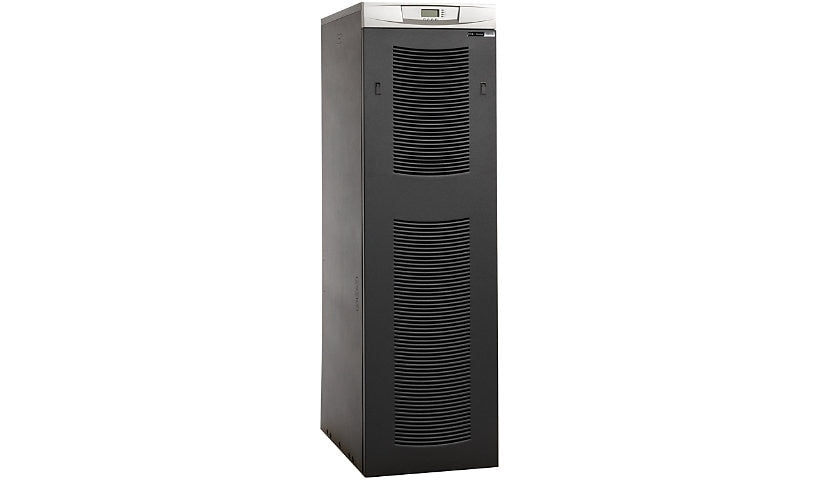

The Eaton Powerware PW9355 10kVA Tower UPS is a high-performance, double-conversion online UPS designed for critical IT environments and facility infrastructure. With a 10,000 VA power capacity and advanced IGBT rectifier technology, it ensures clean, continuous power with a 0.99 input power factor correction and a 0.9 output power factor. The 9355 features a space-saving tower design, modern LCD interface, RS-232 remote management, and dual X-Slot expandability.
Ideal for centralized server rooms, building systems, and industrial automation, this UPS includes both automatic static and manual bypass switches for added reliability. It also incorporates Eaton’s exclusive Advanced Battery Management (ABM) system to extend battery life and optimize runtime up to 22.6 minutes at full load. A robust solution for mission-critical applications.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Series | Powerware |
| Model | PW9355 |
| Part Number | KA1012100000010 |
| UPS Type | Double Conversion Online |
| Form Factor | Tower (External) |
| Power Capacity | 10,000 VA / 10 kVA |
| Output Voltage | 208V AC |
| Input Voltage | 208V AC (+10% / -15%) |
| Frequency | 45 - 65 Hz |
| Battery Capacity | 9 Ah |
| Battery Technology | Lead Acid |
| Battery Runtime (Full Load) | Up to 22.6 minutes |
| Emergency Power Off | Yes (Audible alarm, LCD & LED display) |
| Remote Management | RS-232 |
| Expansion Slots | 2 x X-Slot |
| Interface Provided | 1 x RS-232 (9-pin D-Sub) |
| Software Included | Drivers & Utilities |
| Operating Temperature | 50°F to 104°F (10°C to 40°C) |
| Humidity Range | 0% to 95% |
| Sound Emission | 56 dBA |
| Dimensions (H x W x D) | 47.8" x 12.8" x 33.5" |
| Weight | 608.47 lbs |
| Compliance Standards | UL, cUL, ISO 9001, ISO 14001, EN 50091-2, IEC 60950, IEC 62040-1-1 |
| ENERGY STAR / EPEAT / TCO | Not certified |
| Country of Origin | United States |
