Description

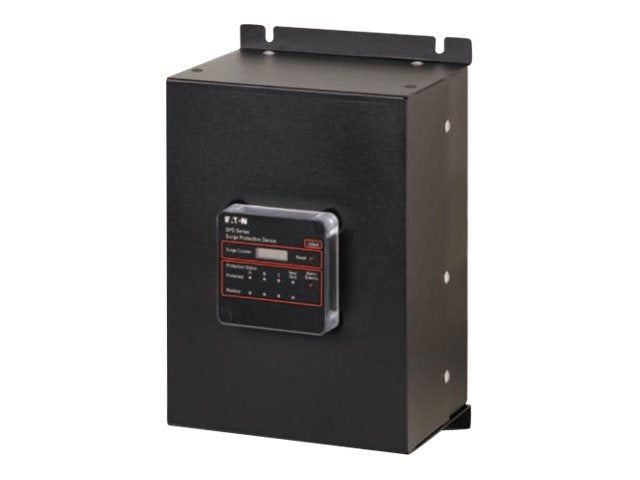

The Eaton PSPD250480D2K Surge Protector offers premium surge protection for your most critical electrical systems. Designed for 480V AC, 3-phase 4-wire delta configurations, this device features a 200 kA short circuit current rating and incorporates thermally protected MOV technology. UL 1449 3rd Edition certified, the PSPD Series delivers a dependable, facility-wide surge protection solution with multiple current capacity options and a 10-year warranty. Ideal for commercial, industrial, and mission-critical applications.
| Specifications | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Part Number | PSPD250480D2K |
| Product Series | PSPD |
| Product Type | Surge Protective Device (SPD) |
| AC Voltage | 480 V AC |
| Phase/Configuration | 3-Phase, 4-Wire Delta |
| Surge Current Capacity | 250 kA |
| Short Circuit Current Rating | 200 kA SCCR |
| Nominal Discharge Current | 20 kA (In rating, UL assigned) |
| Technology | Thermally Protected Metal Oxide Varistor (MOV) |
| Certifications | UL 1449 3rd Edition |
| Warranty | 10 Years |
| Mounting | Hardwired Installation |
