Description
The Eaton Power Xpert 2260 Power Quality Meter is a high-performance monitoring solution engineered for mission-critical electrical systems. Designed to deliver precise energy measurement and advanced power quality analysis, this meter enables organizations to maintain uptime, optimize energy usage, and proactively identify electrical disturbances.
Equipped with 512 MB of onboard memory and an integral graphical display, the Power Xpert 2260 provides real-time visibility into system performance along with comprehensive data logging and event tracking. Its built-in communication capabilities, including Ethernet, BACnet/IP, and Modbus protocols, ensure seamless integration into building management and industrial control systems.
With advanced waveform capture, harmonic analysis up to the 40th order, and programmable I/O capabilities, this meter supports detailed diagnostics and automated system responses. The included gateway card further enhances connectivity, making it ideal for data centers, industrial facilities, and enterprise power infrastructures requiring reliable, scalable monitoring.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Type | Power Quality Meter with Integral Display |
| Model | Power Xpert 2260 |
| Memory | 512 MB onboard data storage |
| Voltage Input | 90–265 Vac/dc |
| Frequency | 60 Hz |
| Current Input | 5A secondary |
| Accuracy | ANSI C12.20 (0.2% revenue accuracy) |
| Harmonic Measurement | Up to 40th harmonic |
| Waveform Capture | 400 samples per cycle |

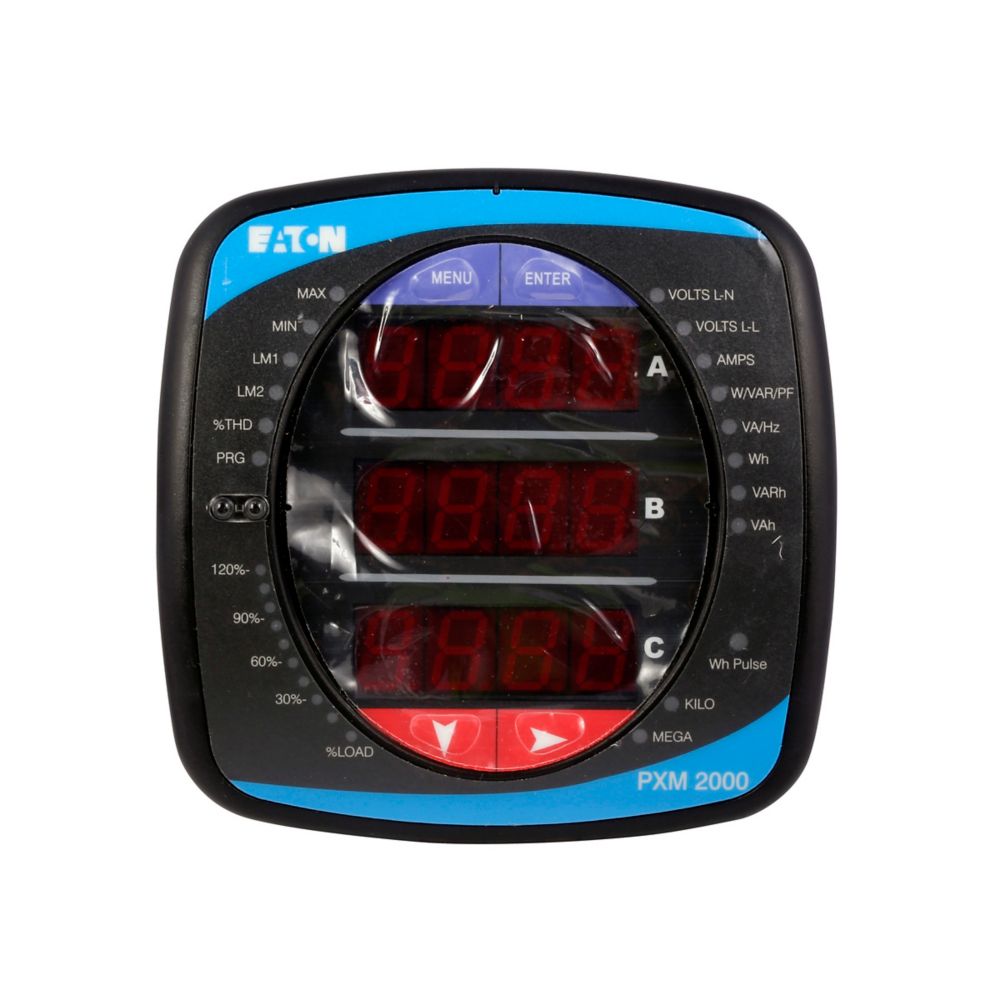

| Display | Integrated graphical display (local and remote access) |
| Instrumentation | Watts, VA, VAR, Power Factor, Demand, Energy (Wh ±), Per-phase measurements |
| Logging Capabilities | Event logging, time/date stamp, alarm notifications via email, data logging |
| Power Quality Monitoring | Voltage disturbances, sag/swell detection, phasor display |
| I/O Capabilities | Analog I/O, digital inputs/outputs, programmable pulse outputs (Wh, Varh, Vah) |
| Relay / Inputs | 2 relay outputs, 2 status inputs |

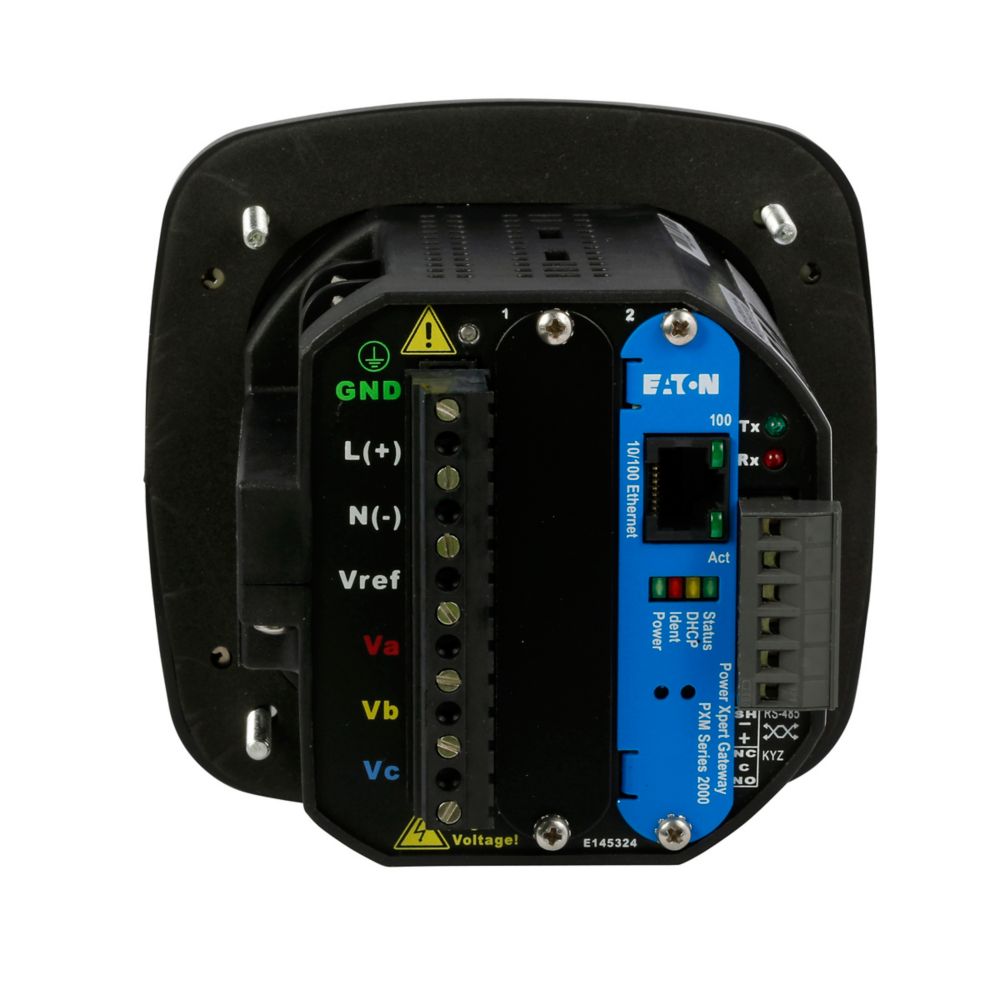

| Communications | Ethernet (10/100 RJ-45), BACnet/IP, Modbus TCP, Modbus RTU (RS-485) |
| Additional Features | Gateway card included for enhanced network integration |
| Certifications | IEC 60687, ANSI/IEEE C12.20, cUL 22Cz, ANSI/IEEE C62.41 |
| Compliance | CE Marked |
| Dimensions (H x W x D) | 4.85 in x 3.96 in x 4.85 in |
| Weight | 2 lb |
| Warranty | 1 year limited warranty |
