Description

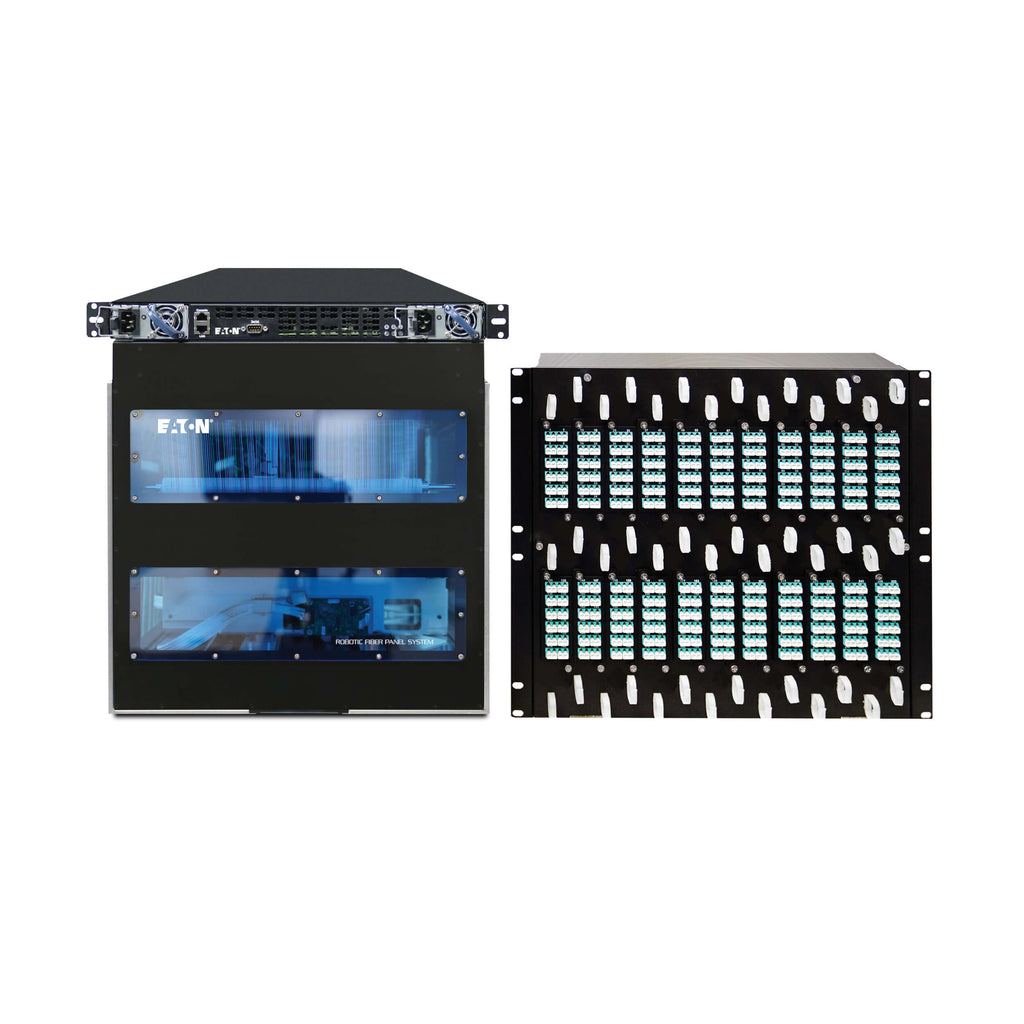

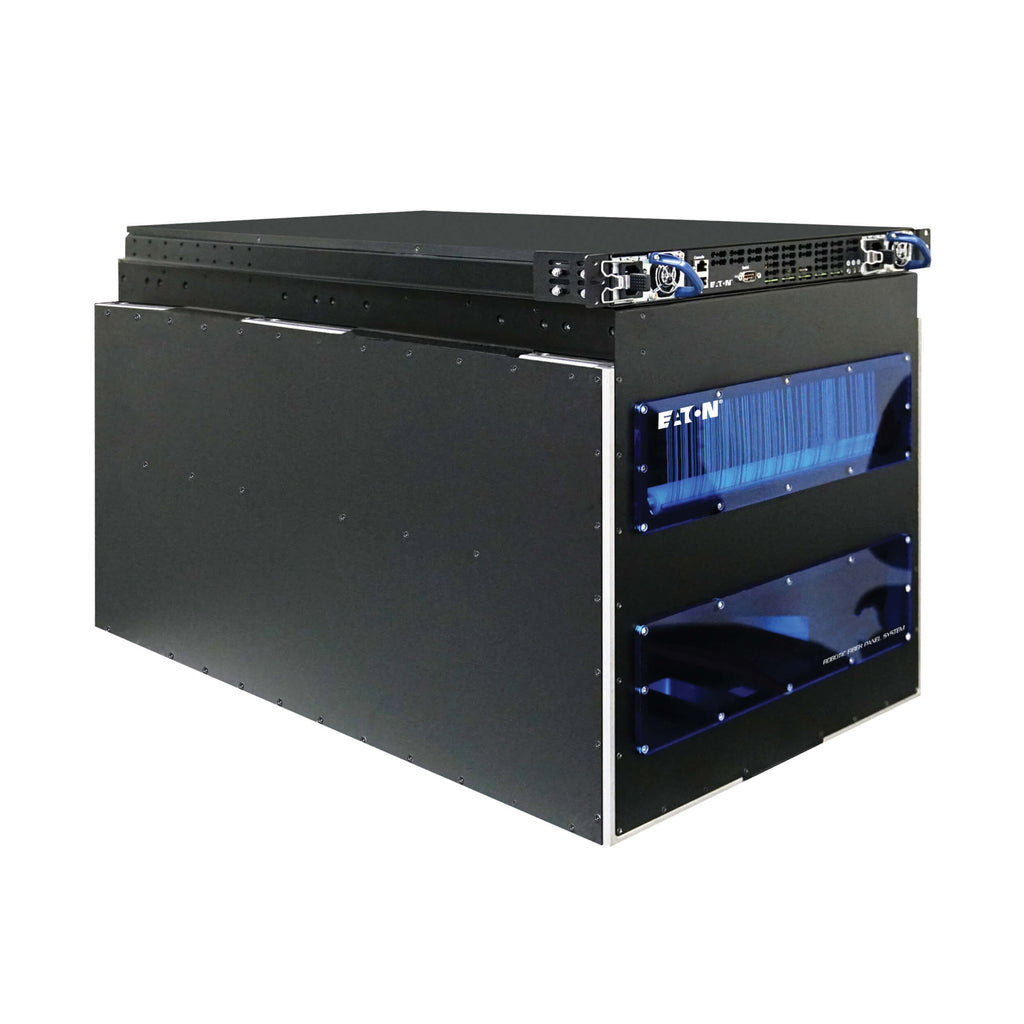

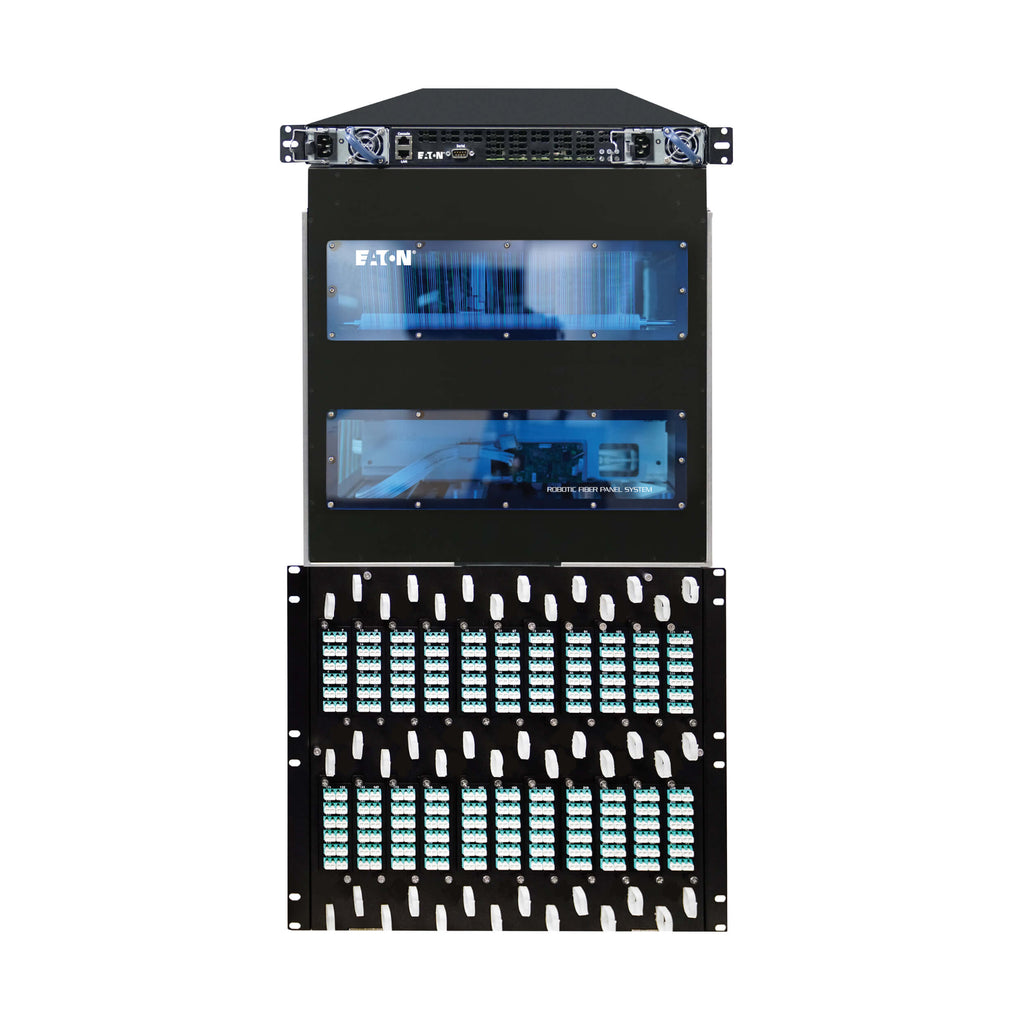

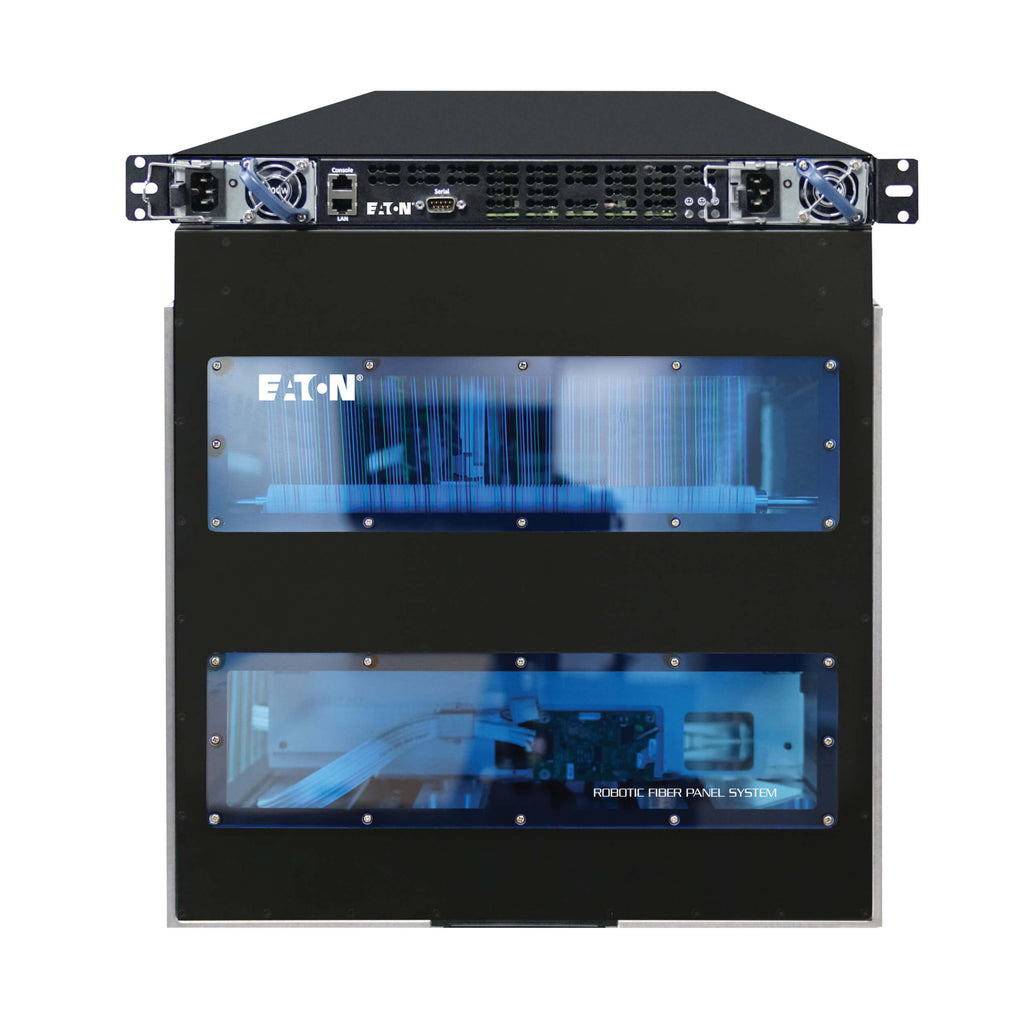

The Eaton NRFP-500MM-CP Robotic Fiber Panel System delivers next-generation Layer 1 automation for high-density fiber networks. Designed for data centers, telco environments, colocation facilities, and advanced test labs, this 10U rack-mounted solution eliminates manual patching by using robotic latching and intelligent remote management to establish precise fiber connections in under one minute.
With the ability to reconfigure connections in as little as 50 seconds, the system dramatically reduces downtime, accelerates network changes, and removes the need for on-site intervention. Its advanced automation supports scalable “any-to-all” architectures, enabling flexible, high-capacity fiber environments while reducing cabling complexity and operational overhead.

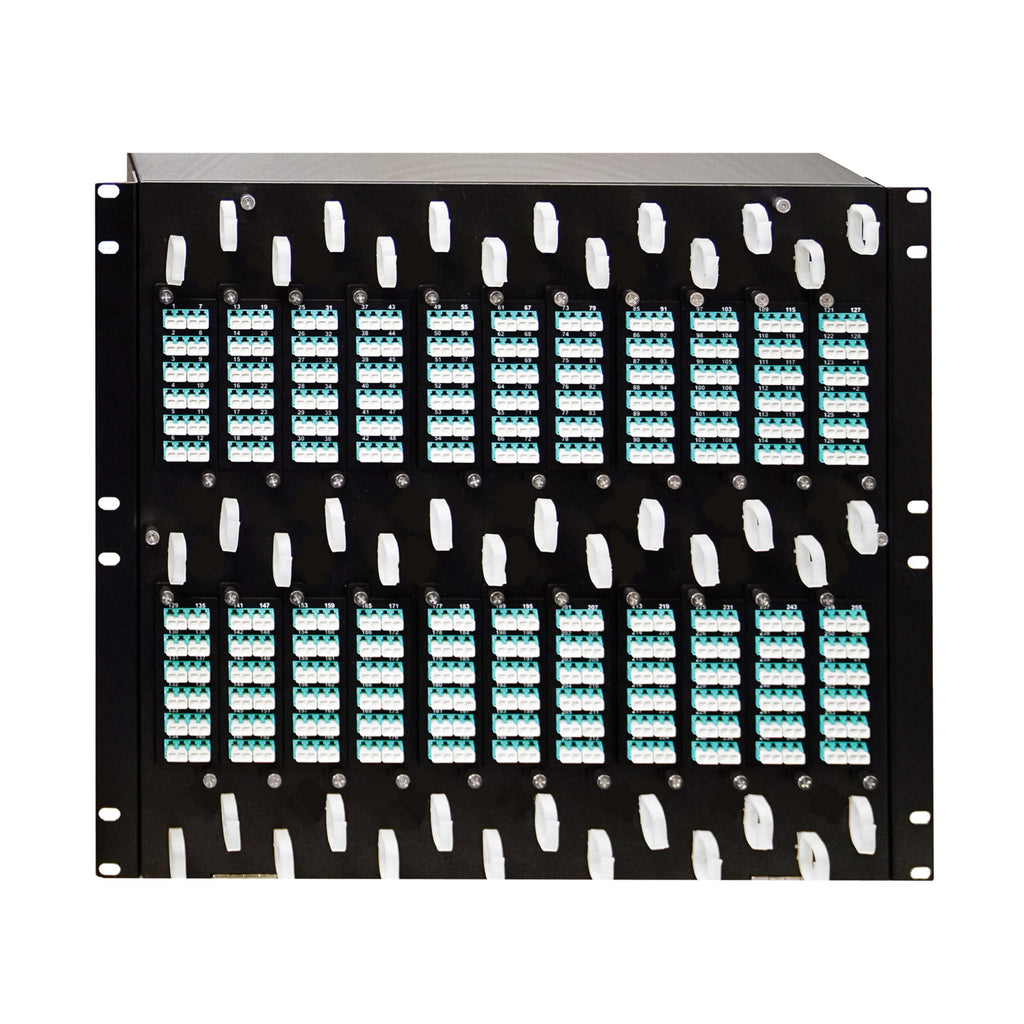

The NRFP-500MM-CP supports 512 multimode LC ports out of the box and can scale to support nearly 500,000 ports with minimal insertion loss. Its passive optical connections ensure reliability even during power interruptions, while robotic precision minimizes wear and enhances long-term infrastructure integrity. Built-in software management provides full visibility, audit tracking, and improved compliance, making it a powerful solution for modern, high-performance network environments.
| Specification | Details |
|---|---|
| Product Type | Robotic Fiber Panel System |
| Fiber Type | Multimode |
| Total Ports | 512 LC Duplex Ports |
| Connector Type | LC Duplex (Female) |
| Endface Polish | UPC, APC |
| Rack Height | 10U |
| Rack Compatibility | EIA-standard 19-inch rack |
| Minimum Rack Depth | 29 inches |
| Automation | Robotic latching with remote management |
| Reconfiguration Time | Typically under 1 minute (≈50 seconds) |
| Scalability | Supports up to ~500,000 ports |
| Insertion Loss | 1 dB maximum (0.5 dB typical) |
| Power Consumption | 50W standby, 150W peak |
| Voltage Compatibility | Standard data center power environments |
| Dimensions (H x W x D) | 17.4 x 17.5 x 31 inches |
| Weight | 192 lbs |
| Color | Black |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity Range | 5% to 95% non-condensing |
| Compliance | RoHS, CE, REACH, FCC Class A |
| Certifications | UL 60950-1, EN standards |
| Warranty | 1-year limited warranty |
