Description

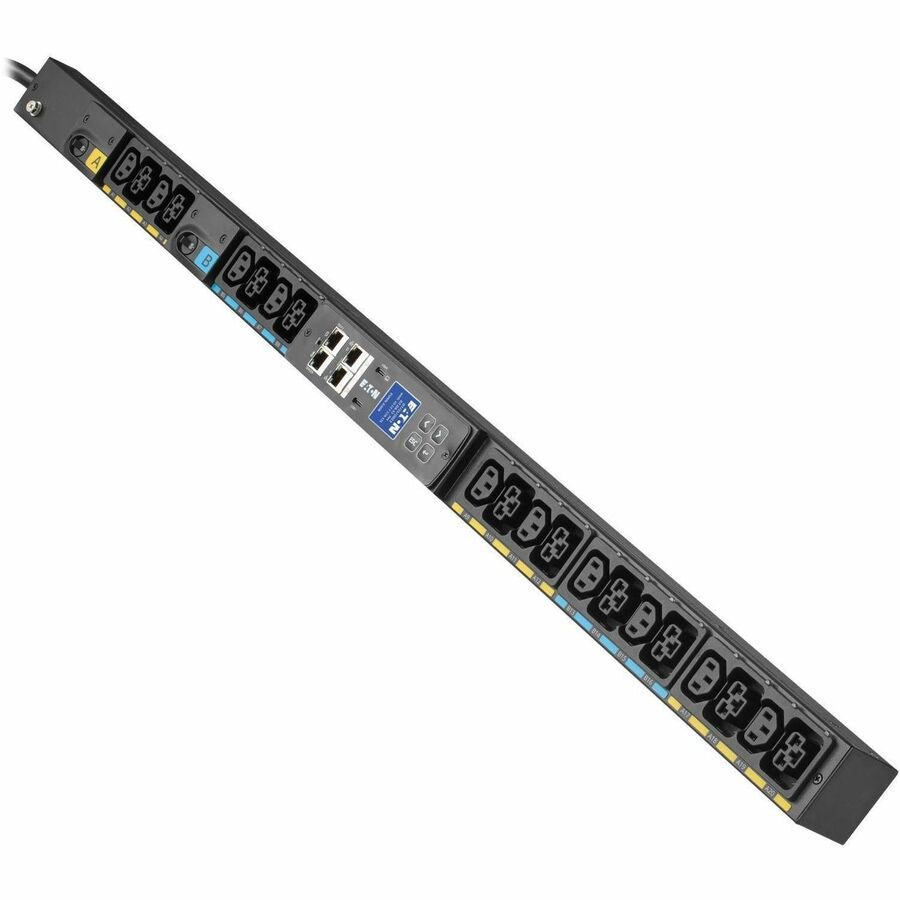

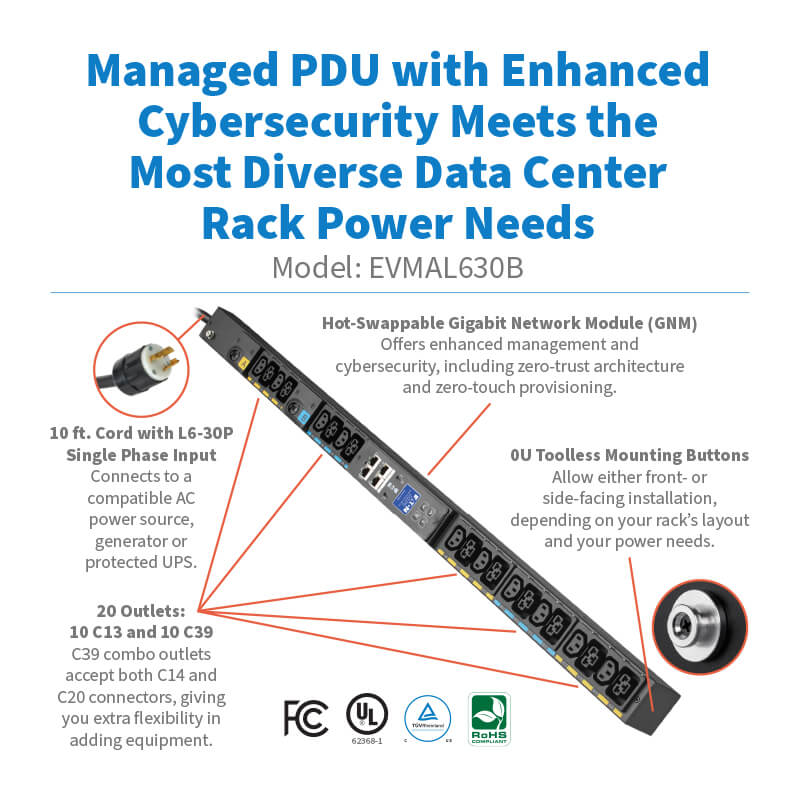

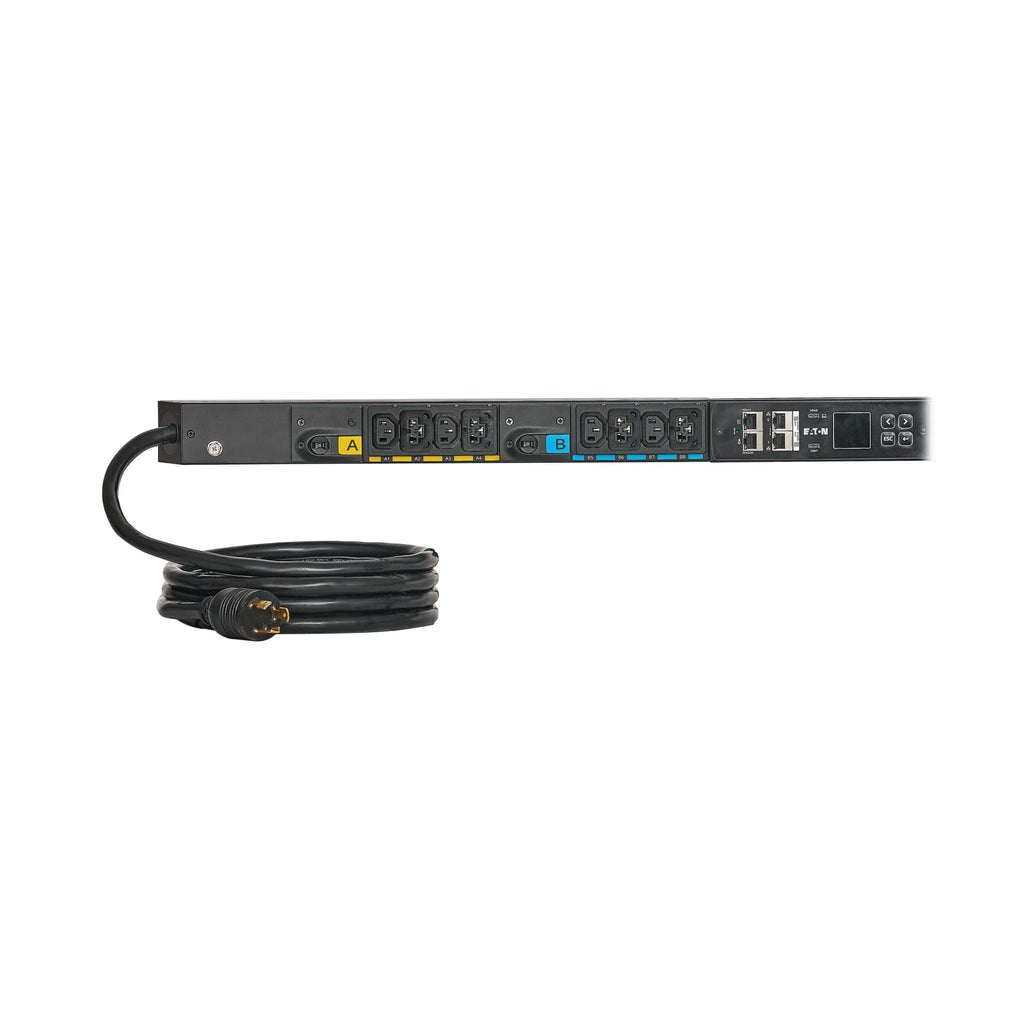

The Eaton EVMAL630B is a Single-Phase Managed Rack PDU G4 designed for modern data centers and distributed IT environments requiring secure, intelligent power distribution. Equipped with 20 outlets—including 10 C13 and 10 flexible C39 combo receptacles—this 0U vertical PDU delivers 5.8kW capacity at 208V with a 10-ft. L6-30P cord.
Its embedded Gigabit Network Module (GNM) ensures enterprise-grade cybersecurity, while remote outlet-level metering and switching help streamline power management. The EVMAL630B supports zero-trust architecture, outlet control, and cascading up to 40 PDUs—making it ideal for scalable deployments. Toolless vertical mounting and a slim 2-inch profile ensure fast, efficient installation without sacrificing rack space.
| Specification | Details |
|---|---|
| Model Number | EVMAL630B |
| Form Factor | 0U Vertical |
| Input Voltage | 208V |
| Input Plug Type | NEMA L6-30P |
| Input Current | 24A |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Capacity | 5.8kW / 5800W |
| Outlet Count & Type | (10) C13, (10) C39 Combo Outlets |
| Circuit Protection | (2) 3-pole 20A breakers |
| Network Interface | Gigabit Ethernet, Serial |
| Monitoring & Control | Outlet-level metering, switching, alerts |
| Mounting | Toolless buttons, vertical (0U) |
| Material | Aluminum |
| Dimensions (H x W x D) | 39.4 x 2.0 x 2.08 in (100.07 x 5.08 x 5.28 cm) |
| Weight | 5.6 lbs (2.54 kg) |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 3-Year Limited Warranty |
