Description

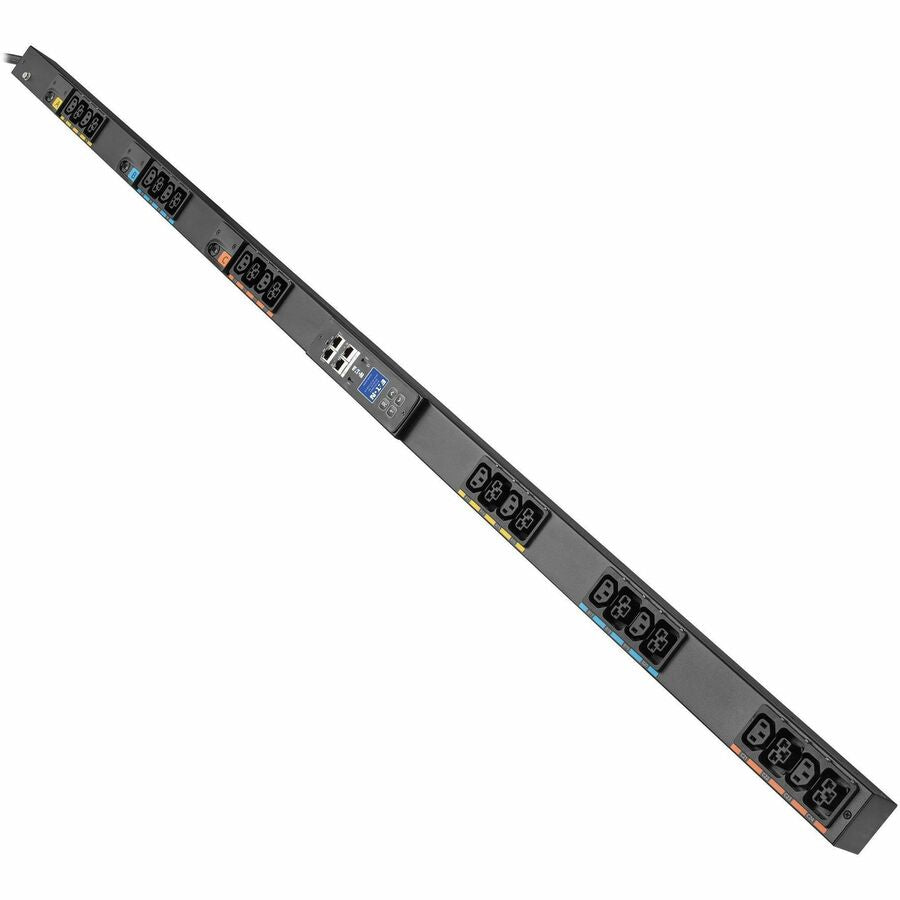

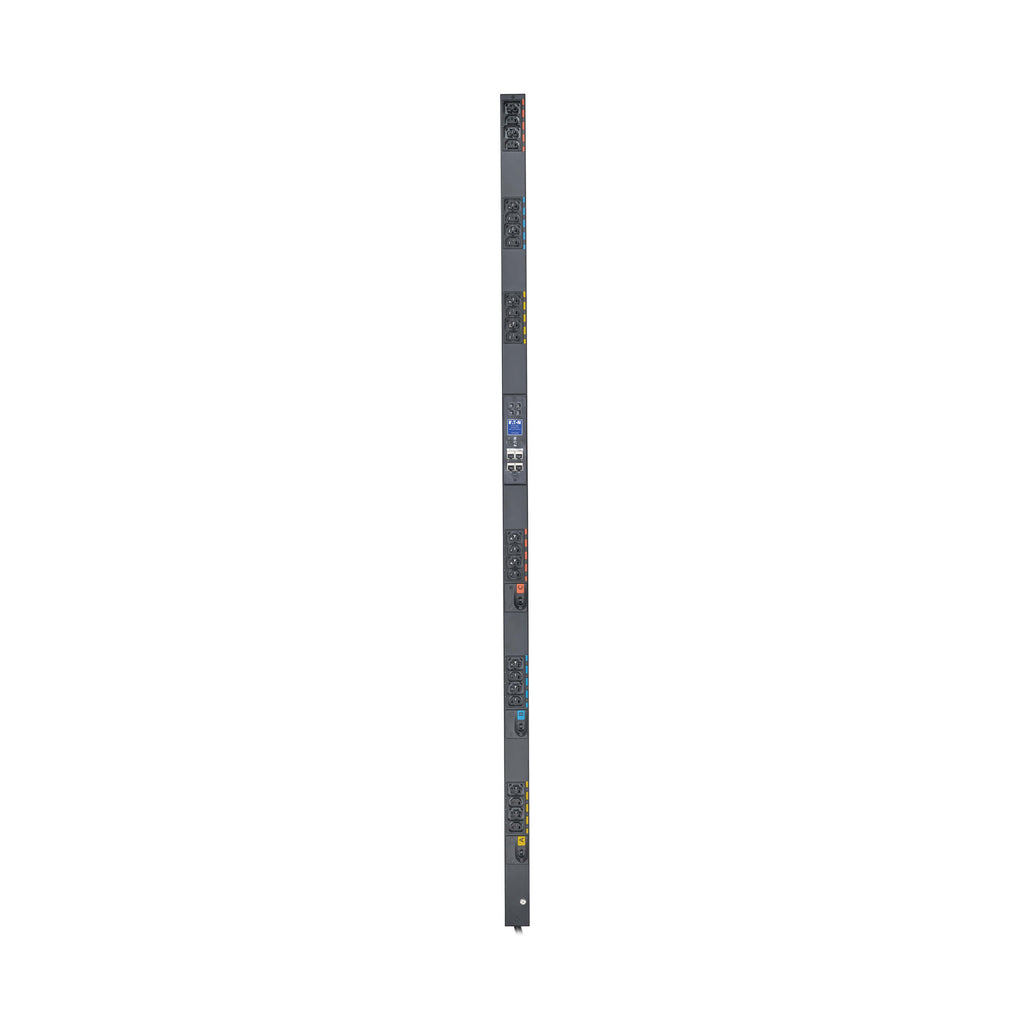

The Eaton EVMAL630A is a single-phase managed rack PDU from the G4 series, built for high-density power distribution in enterprise and edge data centers. Designed with 24 individually managed outlets (12 C13 + 12 C39), this 208V PDU supports a total output of 5.8kW at 24A and features advanced cybersecurity, remote monitoring, and outlet-level control.

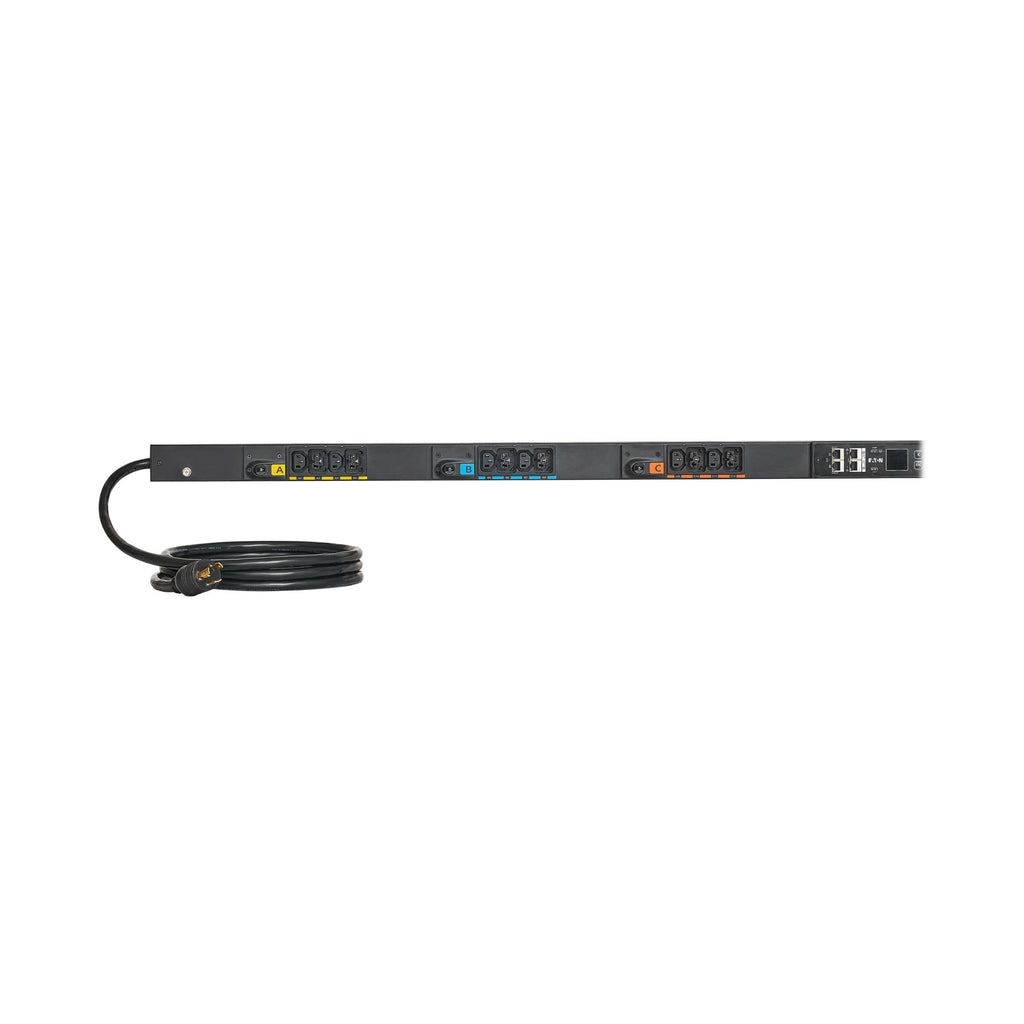

With its embedded Gigabit Network Module (GNM), the EVMAL630A enhances visibility and control while supporting zero-trust architecture and zero-touch provisioning. It integrates seamlessly with Eaton’s Brightlayer suite, enabling smarter automation and faster response to power events. A 10 ft. cord with NEMA L6-30P plug, aluminum housing, and toolless vertical (0U) mounting make installation fast and efficient.
Ideal for distributed IT, colocation, and enterprise deployments, the EVMAL630A balances performance, security, and space-saving design for mission-critical environments.
| Specification | Details |
|---|---|
| Model Number | EVMAL630A |
| Input Voltage | 208V AC (200–240V Supported) |
| Input Plug Type | NEMA L6-30P |
| Input Phase | Single-Phase |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Capacity | 5.8kW / 5800W |
| Output Receptacles | 12 x C13, 12 x C39 (accepts C14 and C20) |
| Outlet Management | Metered, Monitored, and Switched |
| PDU Type | Managed |
| Network Module | Embedded Gigabit Network Module (GNM) |
| Mounting | Vertical (0U), toolless buttons, aluminum housing |
| Dimensions (H x W x D) | 68.1 x 2.0 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 12.2 lbs (5.53 kg) |
| Circuit Protection | 3 x 2-pole 20A circuit breakers |
| Cybersecurity | Chain-of-trust, secure boot, user firewall |
| Compliance | UL 62368-1, FCC Part 15 Class A, RoHS, ICES, cTUVus |
| Warranty | 3-Year Limited Warranty |
