Description

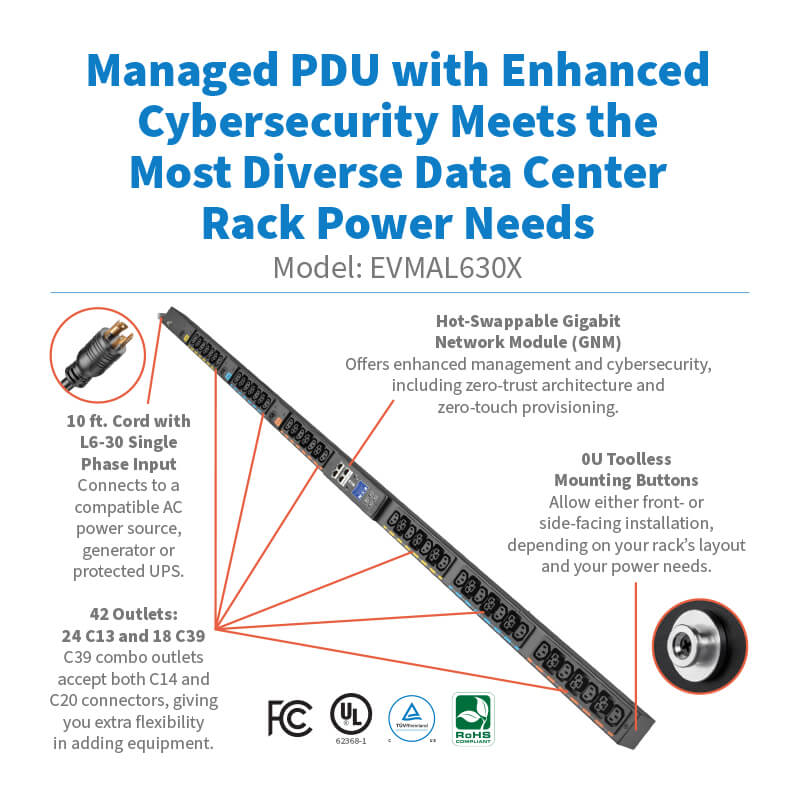

The Eaton EVMAL630X is a next-generation Single-Phase Managed Rack PDU designed for modern data centers and distributed IT environments. Delivering 5.8kW of reliable power across 42 outlets, this 0U vertical PDU features advanced outlet-level switching, metering, and monitoring for complete control and visibility.
Equipped with a Gigabit Network Module (GNM), it offers enterprise-grade cybersecurity, zero-trust architecture, and remote management capabilities. The EVMAL630X supports cascading up to 40 units, tool-less mounting, and compatibility with Brightlayer Data Centers suite for full-stack automation.
Perfect for IT administrators seeking secure, intelligent, and efficient power distribution.
| Specification | Details |
|---|---|
| Model Number | EVMAL630X |
| Input Voltage | 208V Single-Phase |

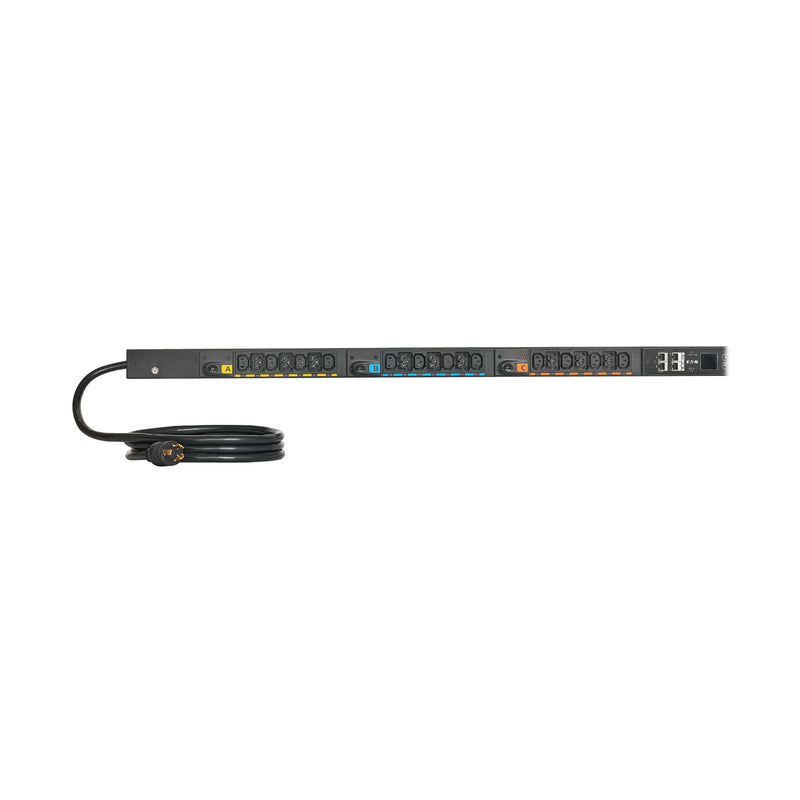

| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Maximum Input Current | 30A |
| Output Power Capacity | 5.8 kW / 5800W |
| Output Frequency | 50/60 Hz |
| Output Receptacles | 24 × C13, 18 × C39 |
| Circuit Breakers | 3 × 2-pole, 20A |
| Outlet-Level Switching | Yes |
| Mounting | 0U Vertical, Toolless |
| Material | Black Aluminum |
| Network Interface | Gigabit Ethernet, Serial |
| Display | LCD with outlet-level readings |
| Cascade Support | Up to 40 units |
| Cybersecurity | Secure firmware, zero-trust architecture |
| Certifications | UL 62368-1, FCC Part 15 Class A, cTUVus, ICES |
| Dimensions (HxWxD) | 68.1 x 2.0 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 19.4 lbs (8.8 kg) |
| Warranty | 3-Year Limited |
