Description
The Eaton EVMIL620A is a single-phase metered input rack PDU designed for modern enterprise, colocation, and distributed data center environments. Delivering up to 3.8kW of reliable power distribution, this 0U vertical PDU supports a wide 100–240V input range and provides real-time visibility into voltage, current, power, and energy usage.

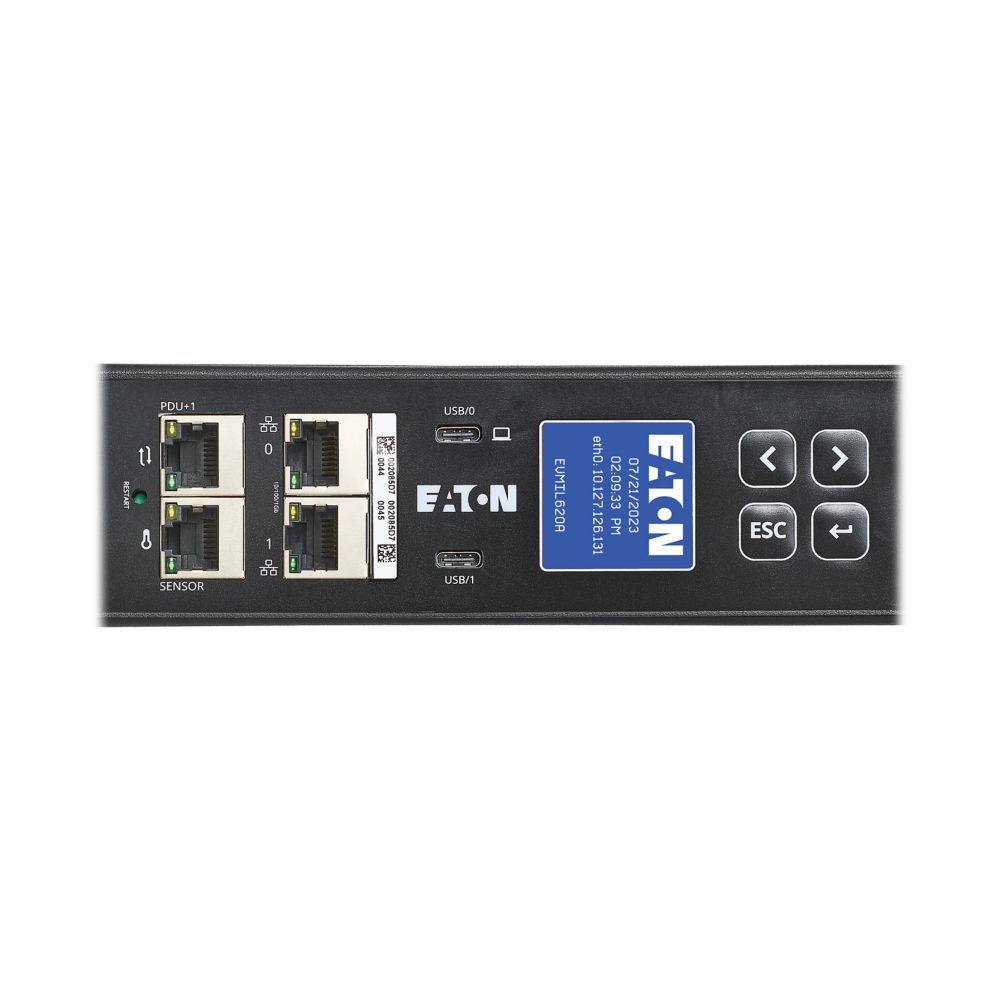

Equipped with an embedded Gigabit Network Module, the EVMIL620A features advanced cybersecurity protections, including secure boot, encryption, and firewall support, helping safeguard critical infrastructure from network-based threats. High-accuracy metering enables precise capacity planning, proactive load management, and alarm-based protection against overloads and downtime.

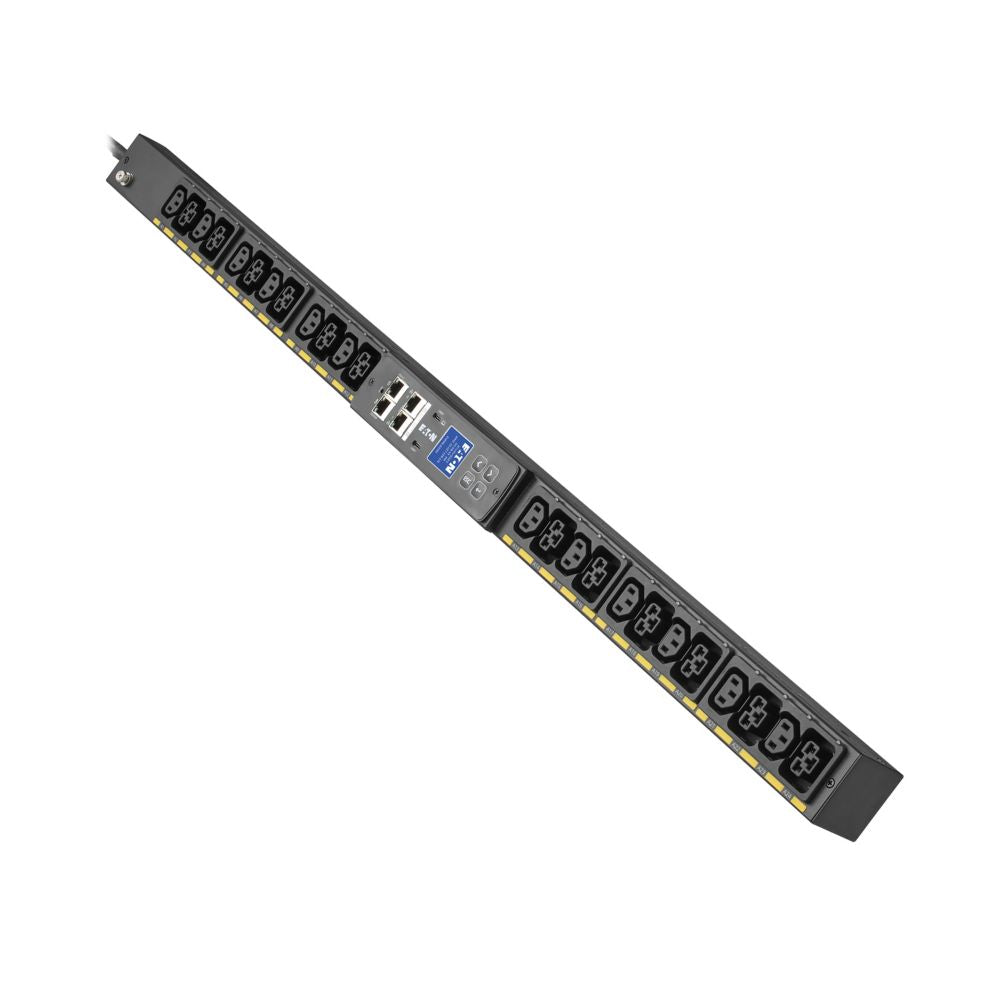

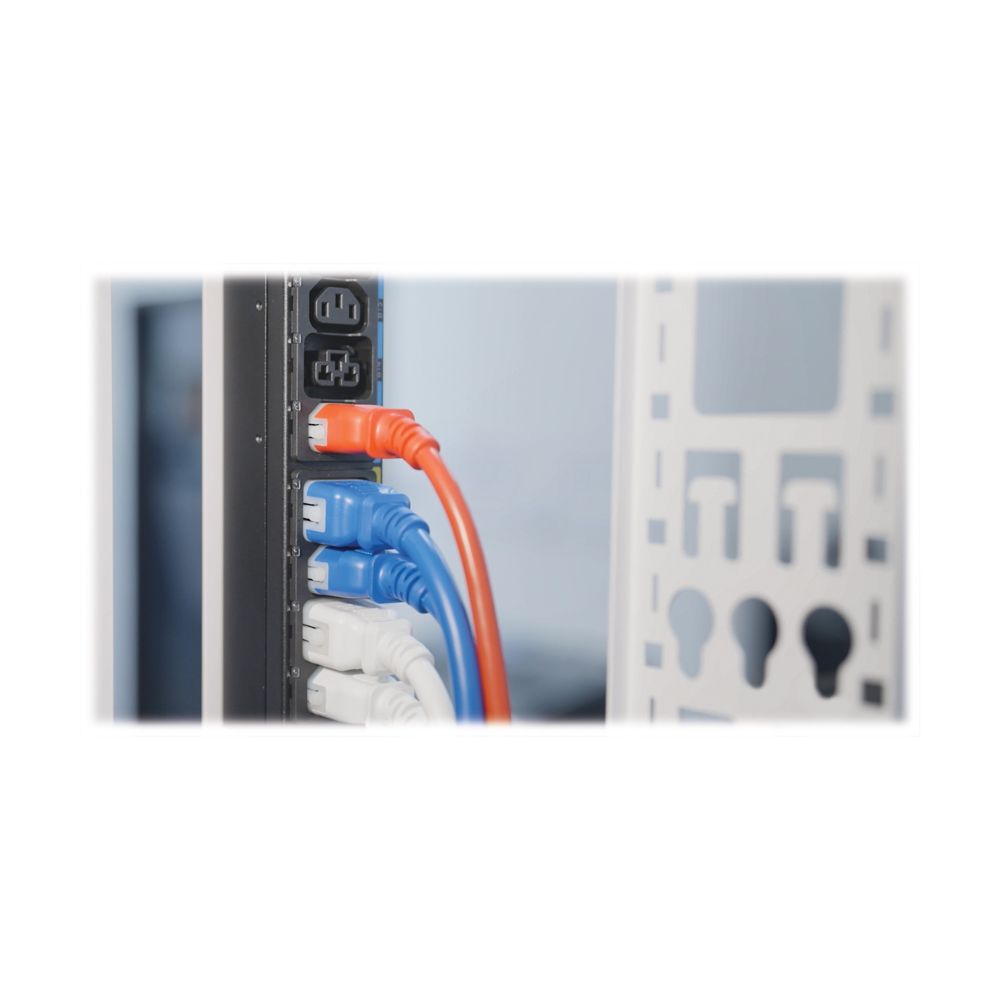

The PDU includes 24 total outlets—12 C13 and 12 high-retention C39 combo outlets that accept both C14 and C20 plugs—allowing flexible equipment connections while reducing the need for multiple PDUs. Toolless mounting buttons enable fast 0U vertical installation, and color-coded load banks with individual breakers simplify cable organization and load balancing within dense racks.
| Specification | Details |
|---|---|
| PDU Type | Metered Input Rack PDU |
| Form Factor | 0U Vertical |
| Input Phase | Single-Phase |
| Input Voltage | 100–240V AC |
| Maximum Input Current | 20A |

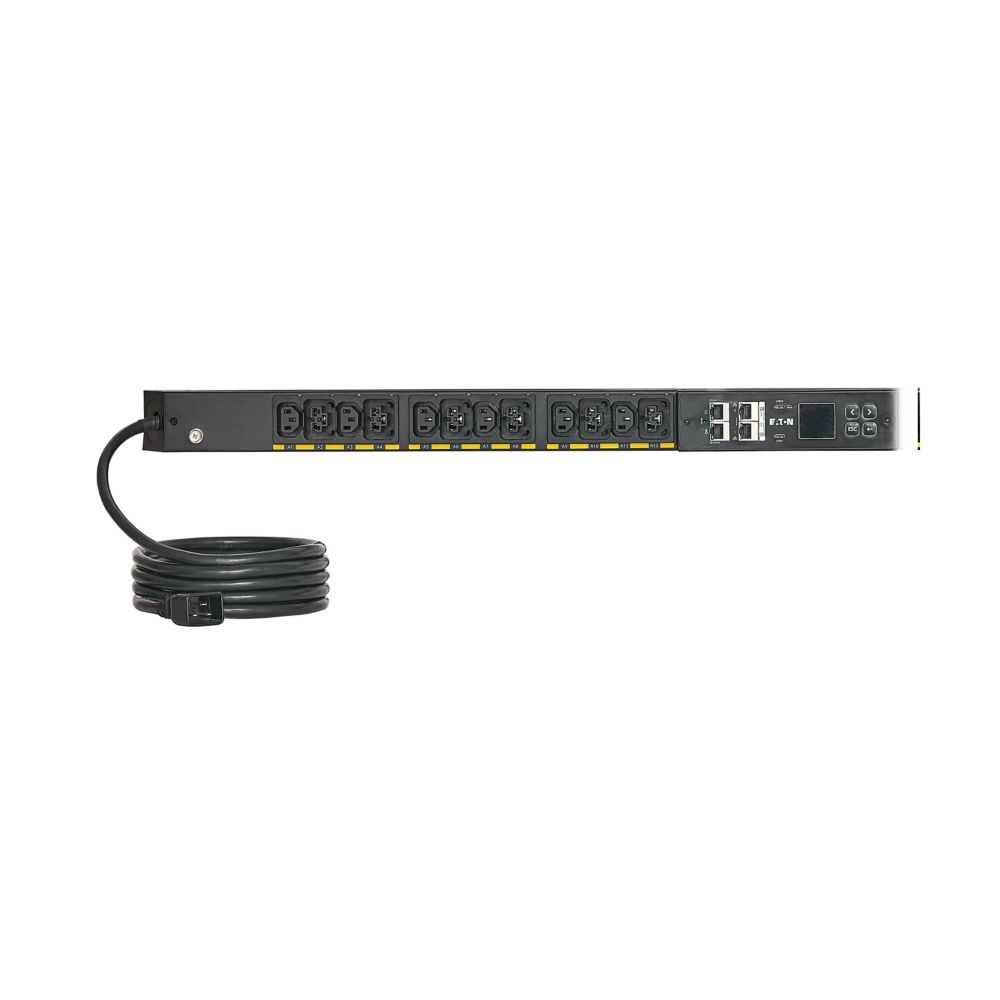

| Input Plug | IEC C20 / NEMA L6-20 |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | 3.8 kW / 3.8 kVA |
| Frequency | 50 / 60 Hz |
| Total Outlets | 24 |
| Outlet Configuration | 12 × C13, 12 × C39 (C14/C20 compatible) |
| Metering | Voltage, current, power, energy |
| Measurement Accuracy | ±1% (V, A, W) |
| Network Interface | Gigabit Ethernet, Serial |
| Management Protocols | Web, SNMP, CLI, REST API |
| Daisy-Chain Support | Yes, up to 40 PDUs |
| Display | Front-panel LCD |
| Mounting | Toolless vertical rack mounting |
| Construction | Aluminum chassis |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, FCC Class A, RoHS |
| Warranty | 3-Year Limited Warranty |
