Description

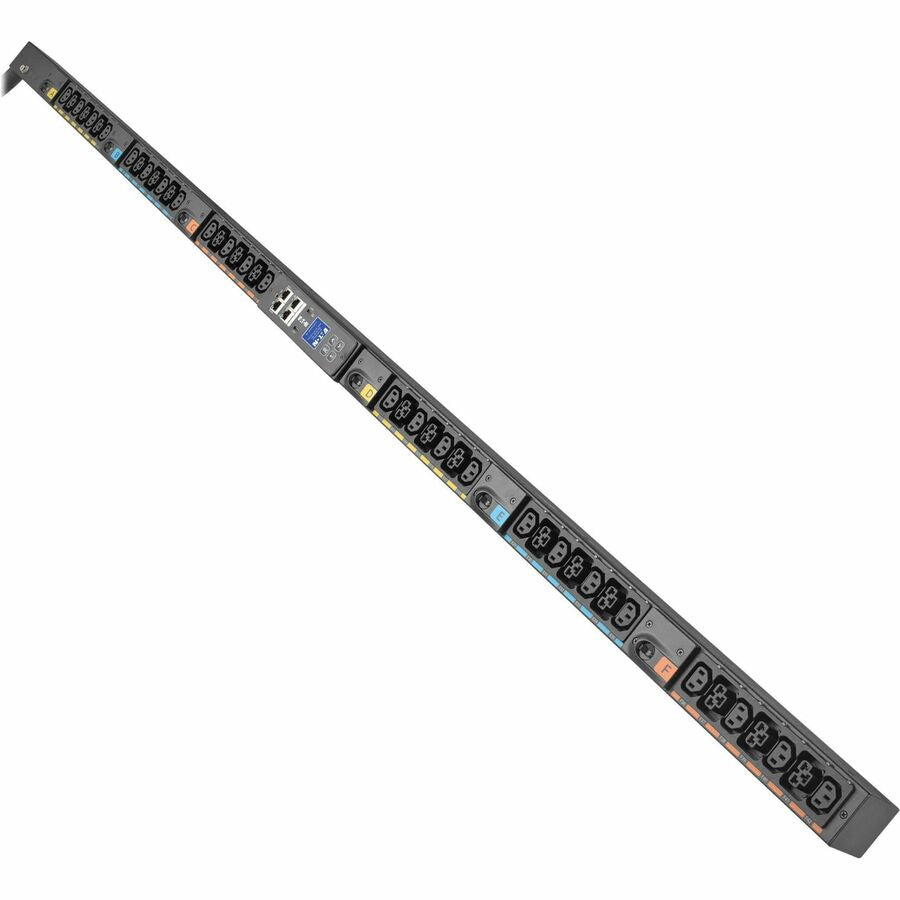

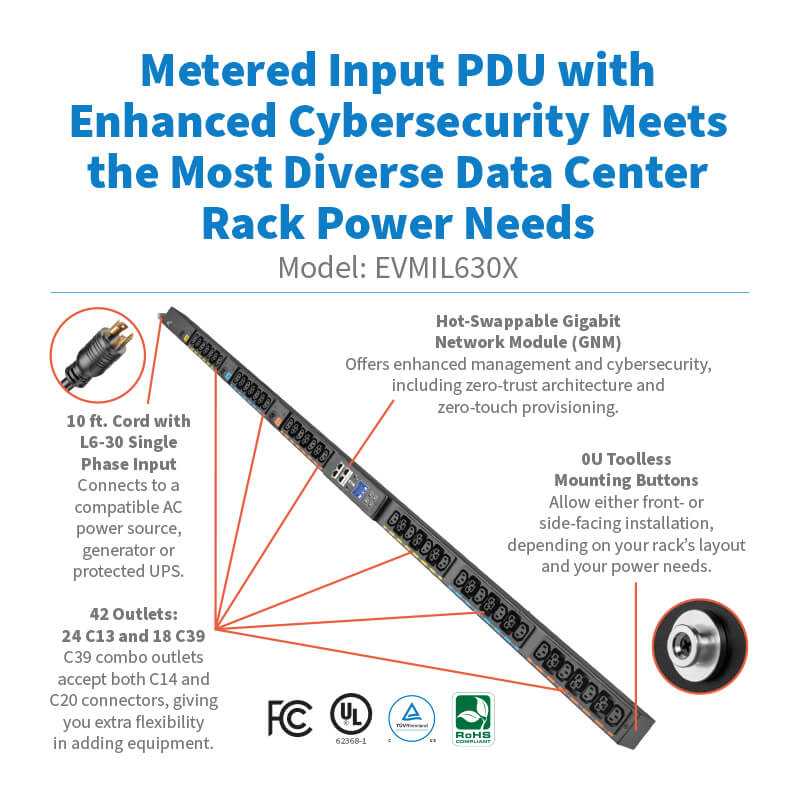

The Eaton EVMIL630X is a Single-Phase Metered Input Rack PDU G4 engineered for data center professionals who demand secure, flexible, and space-saving power distribution. With 42 outlets—24 C13 and 18 universal C39—the unit enables versatile deployments with support for both C14 and C20 plugs. This vertical 0U rack PDU includes enhanced cybersecurity features such as secure firmware boot, zero-trust architecture, and remote management via an embedded gigabit network module (GNM). Designed for easy toolless installation, the EVMIL630X is compatible with global standards and offers accurate energy metering, making it ideal for distributed IT environments and colocation facilities.
| Specification | Details |
|---|---|
| Model Number | EVMIL630X |
| PDU Type | Metered Input |
| Input Voltage | 208V (200–240V supported) |
| Input Phase | Single-Phase |
| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Max Input Current | 30A |
| Output Capacity | 5.8kW / 24A max |
| Outlets | 24 × C13, 18 × C39 (accepts C14 & C20) |
| Output Voltage | 208V |
| Frequency | 50/60 Hz |
| Circuit Breakers | 3 × 20A 2-pole low-profile breakers |
| Form Factor | Vertical 0U |
| Material | Aluminum |
| Mounting | Toolless buttons (factory-installed) |
| Network Module | Embedded GNM (1G Ethernet, SNMP) |
| Environmental Sensors | Optional (sold separately) |
| Dimensions (HxWxD) | 68.1 x 2.0 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 16.54 lbs (7.5 kg) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, cTUVus, ICES (Canada) |
| Compliance | RoHS, FCC Part 15 Class A |
| Warranty | 3-Year Limited Warranty |
