Description

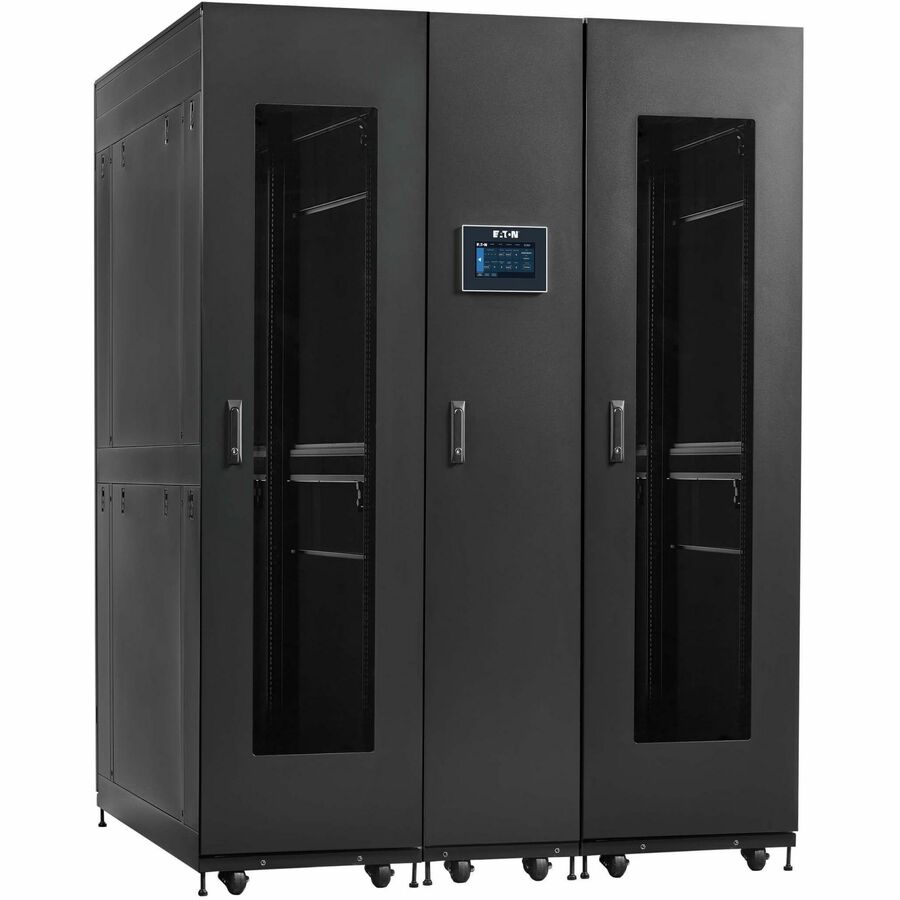

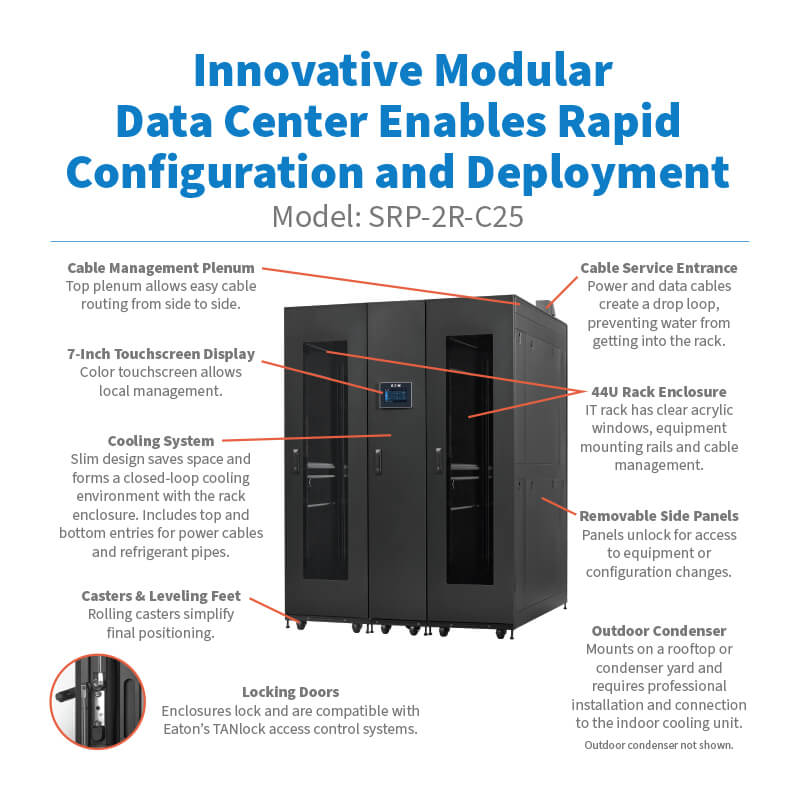

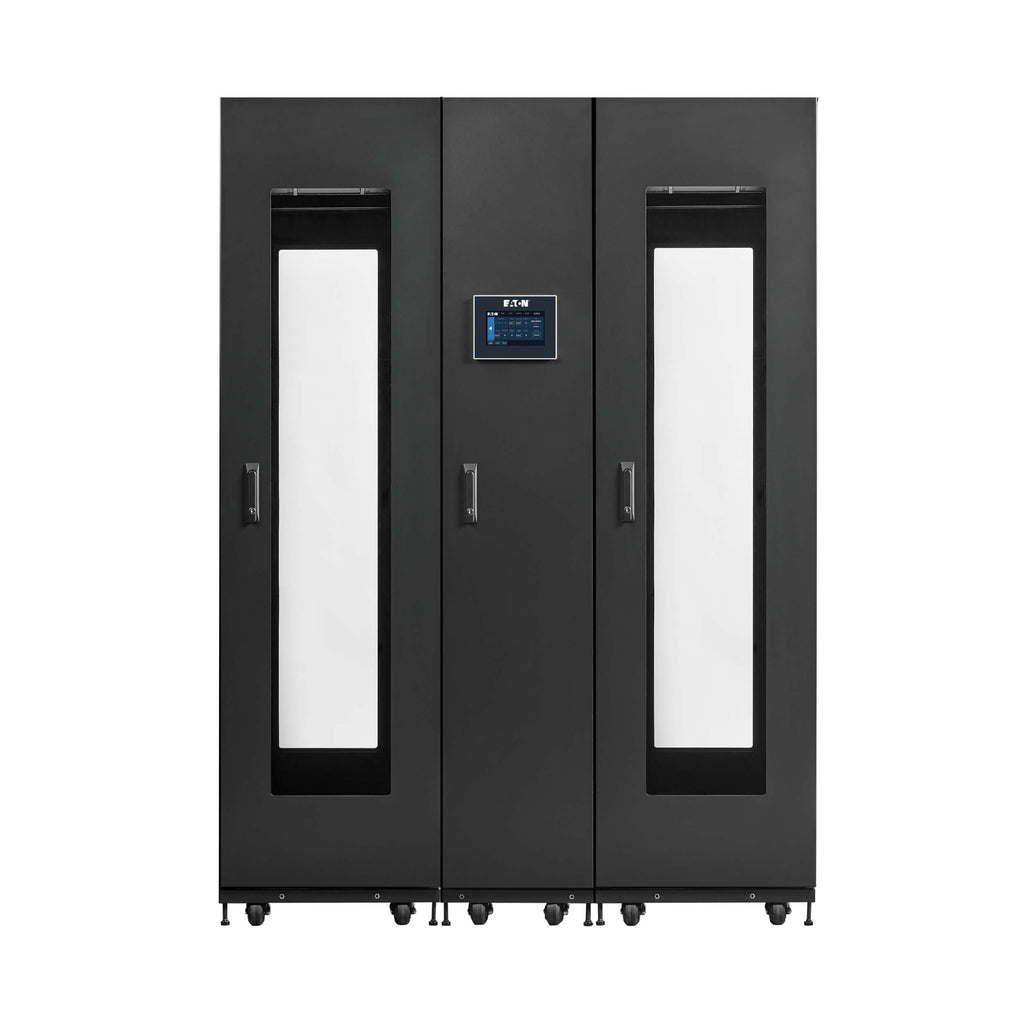

The Eaton SmartRack SRP-2R-C25 is a pre-configured, modular, and self-cooling data center solution designed for rapid deployment and high-efficiency operation in edge computing, AI, and industrial environments. This integrated POD system includes two 44U IT rack enclosures and one 25 kW in-row cooling unit (SRCOOLDXRW25) within a dedicated cooling enclosure, forming a closed-loop cooling system that ensures consistent thermal management and protects sensitive equipment.
With quick deployment, built-in cable management, and a user-friendly 7-inch touchscreen control panel with remote monitoring, the SRP-2R-C25 reduces downtime, energy consumption, and installation costs. Designed to meet IP54 protection standards and FCC Class A compliance, it's ideal for challenging environments like factories, warehouses, and distributed sites.
| Category | Specification |
|---|---|
| Model Number | SRP-2R-C25 |
| Rack Enclosures | 2x 44U IT racks |
| Cooling Enclosure | 1x 25 kW in-row cooling unit (SRCOOLDXRW25) |
| Cooling Capacity | 25.8 kW (88,000 BTU) |
| Cooling Type | Active (Direct Expansion with R410A refrigerant) |
| Airflow | 2,950 CFM |
| Compressor | Inverter-Driven Rotary |
| Fans | 6x EC, 0–3000 RPM |
| User Interface | 7-inch color touchscreen with WEBCARDLXMINI for remote monitoring |
| Ingress Protection | IP54 |
| Input Voltage | 208V AC (3-wire / 4-wire + Ground) |
| Input Frequency | 60 Hz |
| Output Frequency Compatibility | 60 Hz |
| Audible Noise | < 68 dBA |
| Condensate Drain | Yes, 9 L/hr drain pump |
| Operating Temp Range | 64° to 104°F (18° to 40°C) |
| Storage Temp Range | -40° to 140°F (-40° to 60°C) |
| Humidity Range | 5% to 80% RH |
| Max Elevation | 0 to 13,123 ft (0–4000 m) |
| Rack Depth | 48.7 in (123.7 cm) |
| Complete Dimensions (HWD) | 95.07 x 64.25 x 64.88 in (241.48 x 163.20 x 164.80 cm) |
| Unit Weight | 2,017 lbs (914.9 kg) |
| Weight Capacity | 3,000 lbs (1,361 kg) |
| Color | Black |
| Casters | Pre-installed metal casters for easy positioning |
| Locking | Front and rear locking doors with clear acrylic windows |
| Warranty | 1-year limited (cooling unit), 5-year limited (rack enclosures) |
| Compliance | FCC Part 15 Class A (USA), RoHS |
