Description

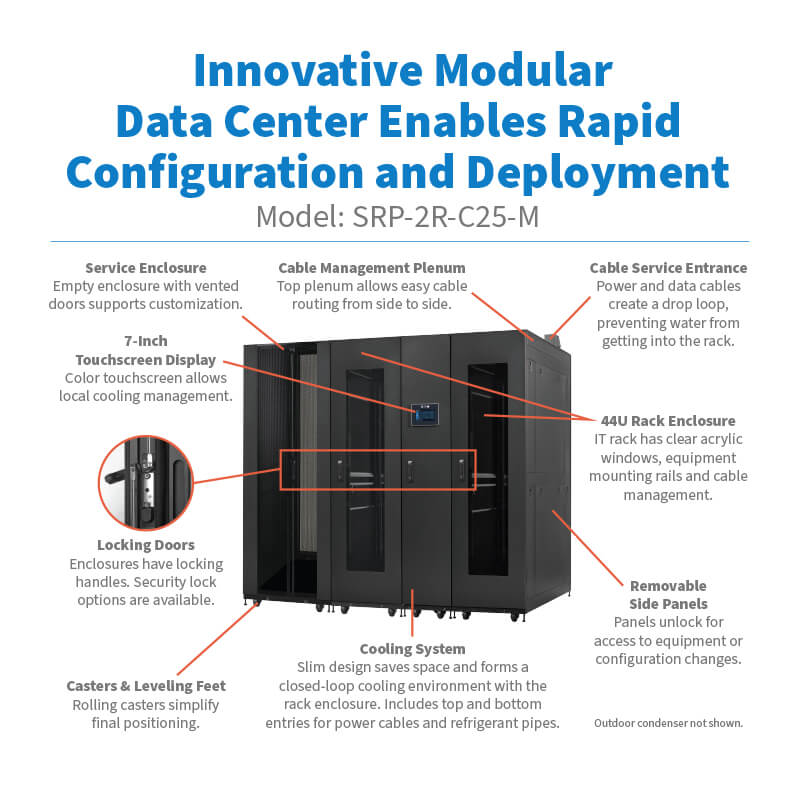

The Eaton SmartRack SRP-2R-C25-M is a pre-configured, self-cooling modular data center solution that integrates two 44U IT rack enclosures, a 25 kW in-row precision cooling unit, and a customizable service enclosure. Designed for fast deployment and edge scalability, it forms a high-efficiency closed-loop POD (performance-optimized data center) ideal for edge computing, AI/ML workloads, and industrial environments.

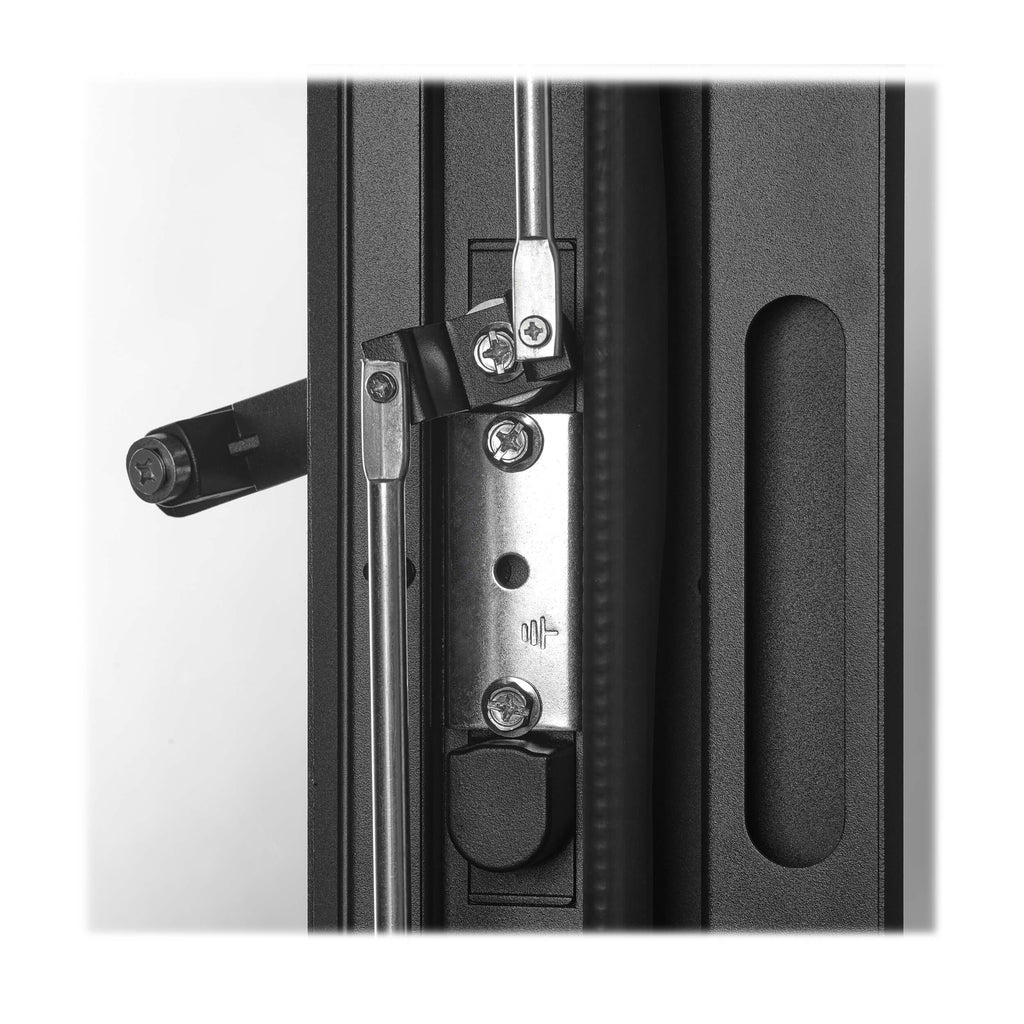

With robust cooling, IP54-rated protection, and customizable service options, this system helps minimize deployment time and maximize uptime. It includes locking doors with clear monitoring windows, in-rack cable and airflow management, and user-friendly controls via a 7” touchscreen and remote monitoring through WEBCARDLXMINI.
| Category | Details |
|---|---|
| Model Number | SRP-2R-C25-M |
| Rack Enclosures | 2 x 44U (with locking doors and clear acrylic windows) |
| Cooling Unit | 25.8 kW (SRCOOLDXRW25), In-row DX, R410A refrigerant |
| Service Enclosure | 800mm wide, vented doors, customizable |
| Cooling Capacity | 88,000 BTU/hr |
| Airflow | 2,950 CFM |
| User Interface | 7-inch color touchscreen, WEBCARDLXMINI remote access |
| Voltage Compatibility | 208V, 3-wire / 4-wire + Ground, 60 Hz |
| Dimensions (H x W x D) | 95.07 x 95.98 x 64.88 in (241.48 x 243.79 x 164.80 cm) |
| Unit Weight | 1,248.74 kg (2,753 lbs) |
| Max Device Depth | 48.7 in (1237 mm) |
| Sound Level | <68 dBA |
| IP Rating | IP54 |
| Compressor Type | Rotary, Inverter-Driven |
| Condensate Drain | 9 L/hr per unit, with integrated drain |
| Operating Temp. Range | 64° to 104°F (18° to 40°C) |
| Storage Temp. Range | -40° to 140°F (-40° to 60°C) |
| Humidity Range | 5% to 80% RH |
| Mounting & Transport | Pre-installed casters; flatbed transport-ready |
| Compliance | FCC Part 15 Class A, RoHS |
| Warranty | 5 years (rack/enclosure), 1 year (cooling unit) |
