Description

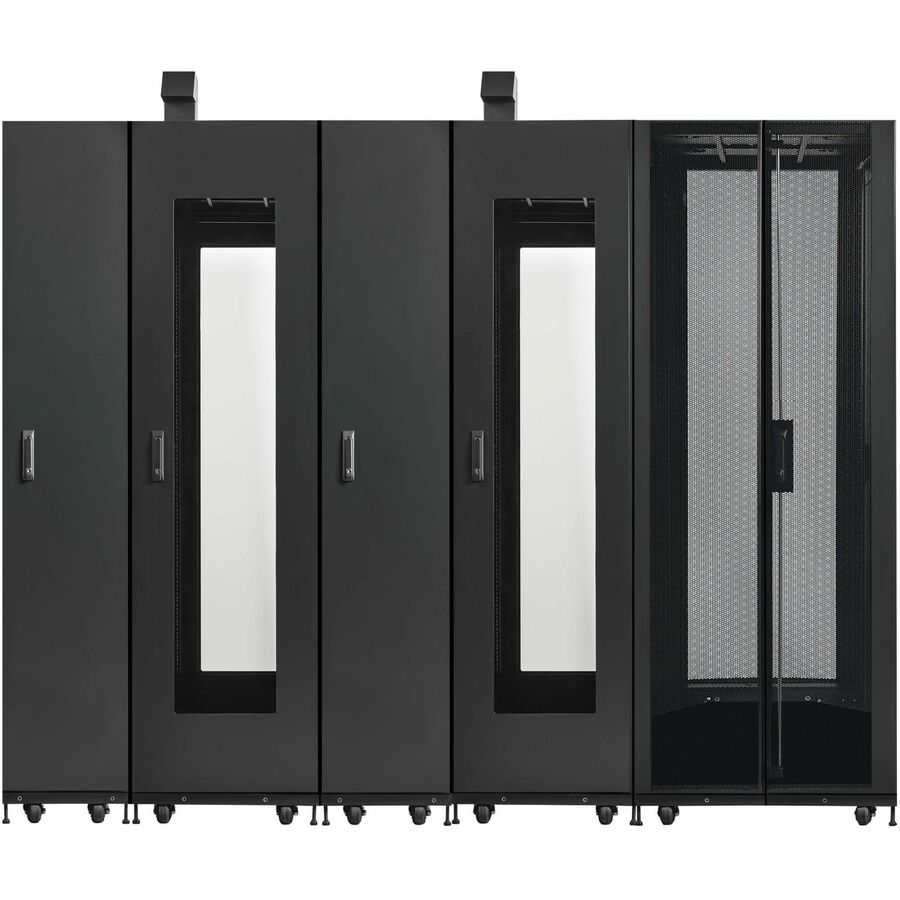

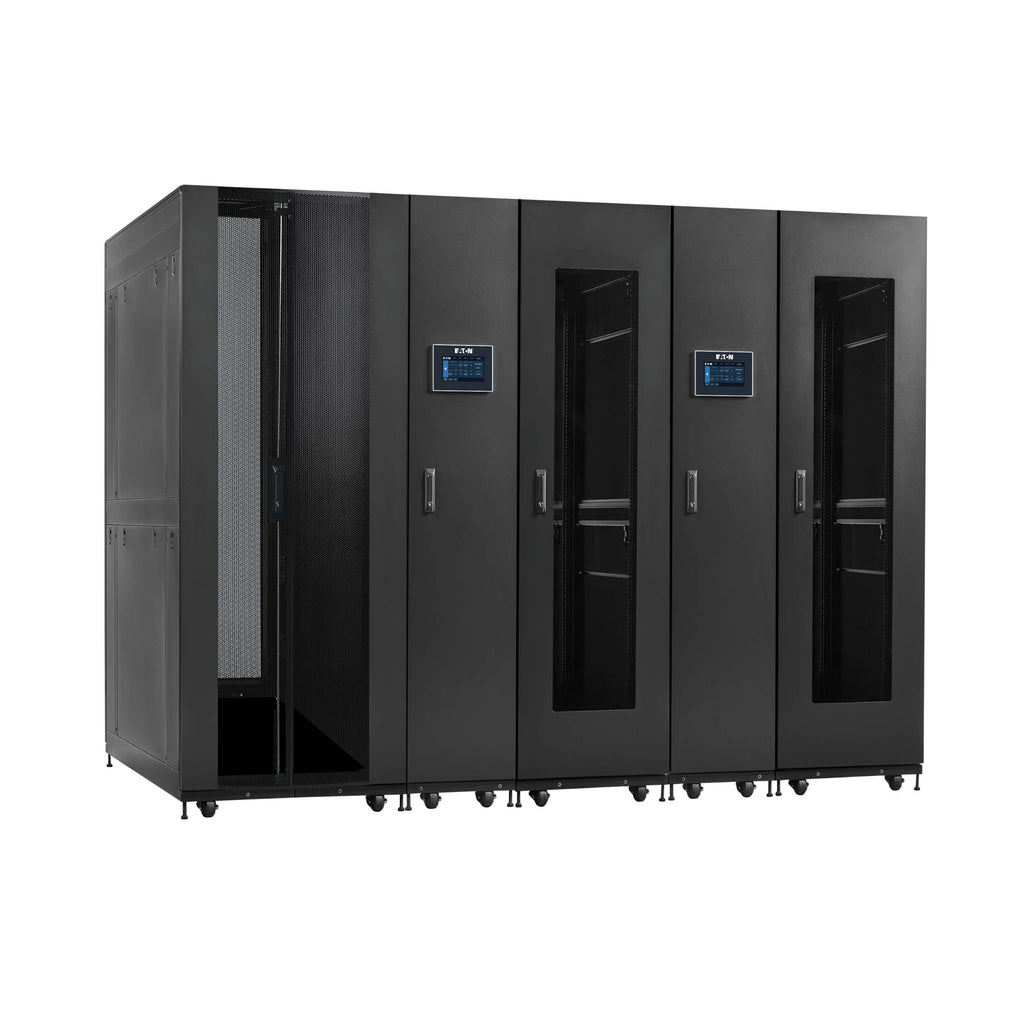

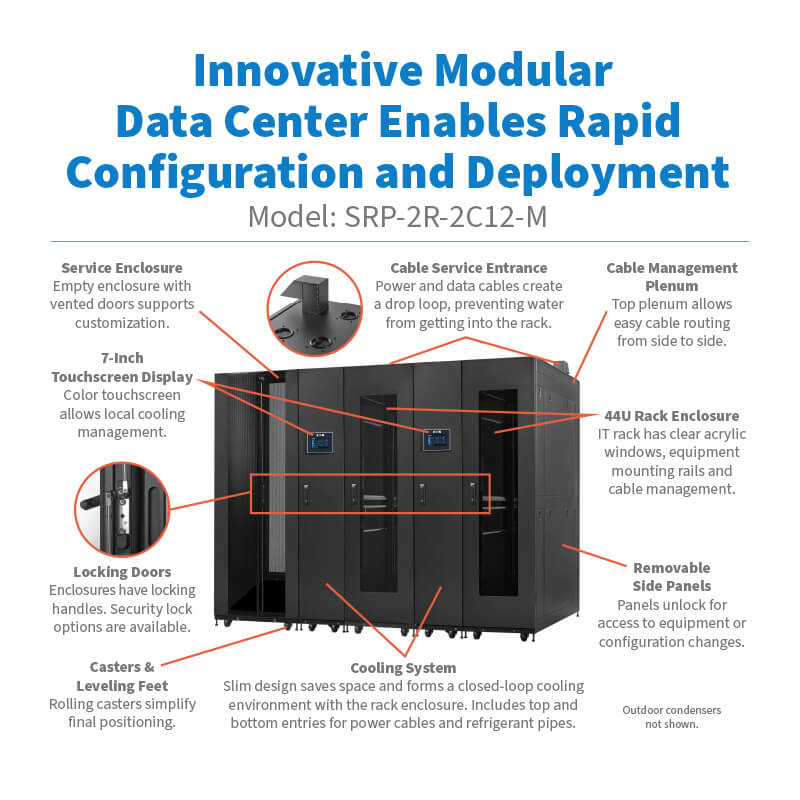

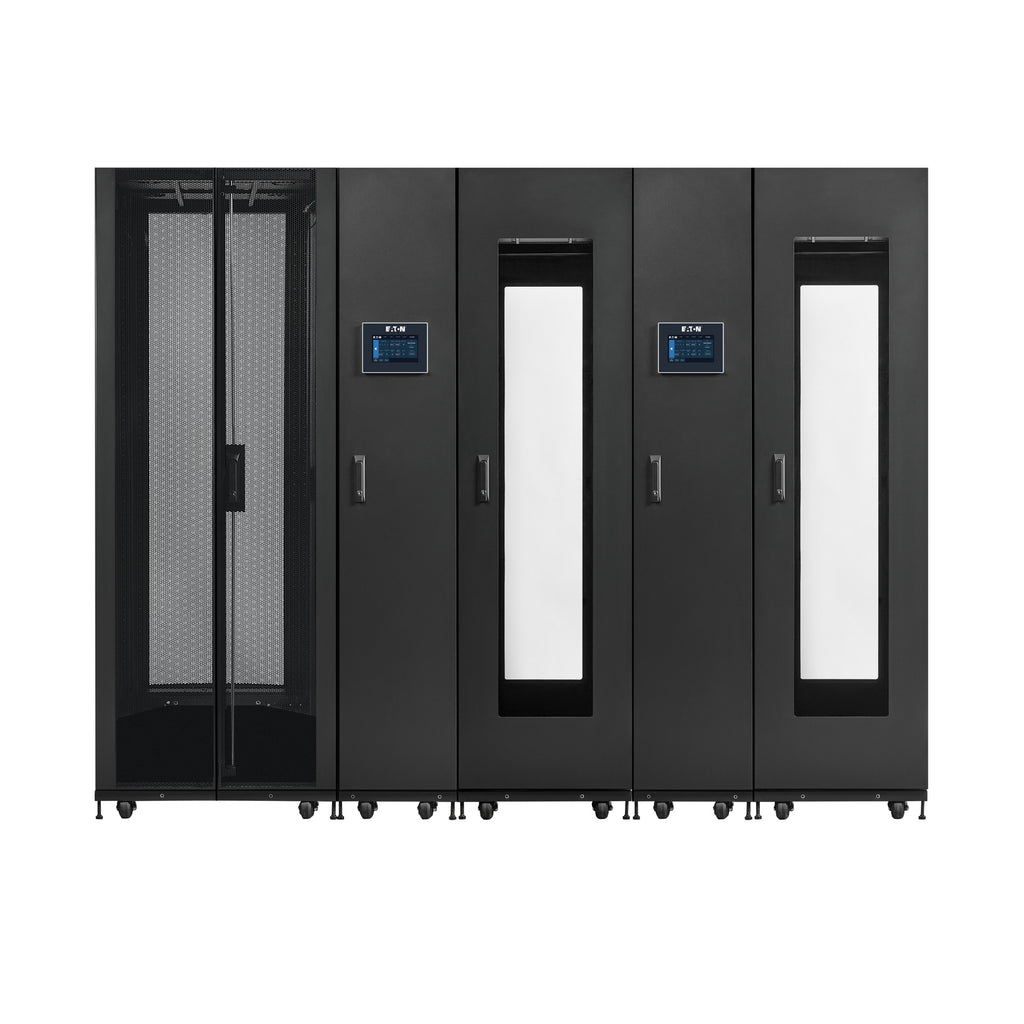

The Eaton SRP-2R-2C12-M SmartRack is a self-contained, scalable modular data center solution engineered for rapid deployment at the edge. This all-in-one system integrates two 44U IT rack enclosures, two 12kW in-row cooling units, and a customizable service enclosure, all housed within a rugged and compact structure.
Ideal for edge computing, AI, and industrial applications, this POD (Performance Optimized Data Center) offers closed-loop cooling with efficient airflow, reducing hot spots and energy waste. The service closet provides flexible space for UPS, power distribution, or fire suppression systems. Designed for reliability in harsh environments, the SRP-2R-2C12-M features IP54 protection, smart cable management, and user-friendly touchscreen controls.
| Category | Specification |
|---|---|
| Model Number | SRP-2R-2C12-M |
| Rack Enclosures | 2x 44U with clear acrylic locking doors |
| Cooling Units | 2x 12 kW (SRCOOLDXRW12), R410A refrigerant |
| Cooling Type | Active Direct Expansion (DX), In-row |
| Cooling Capacity | 25.6 kW / 87,372 BTU, 2,950 CFM airflow |
| Service Enclosure | 1x 800 mm wide, customizable enclosure |
| Input Power | 208V, 3-wire / 4-wire + Ground, 60 Hz |
| User Interface | 7” color touchscreen, WEBCARDLXMINI for remote |
| Dimensions (HWD) | 95.07 x 112.75 x 64.88 in (241.48 x 286.38 x 164.80 cm) |
| Weight | 3,550 lbs (1,610.25 kg) |
| Max Device Depth | 48.7 in (123.7 cm) |
| Weight Capacity | 3,000 lbs (1,361 kg) |
| Environmental | 64–104°F (18–40°C), <68 dBA noise, IP54 rated |
| Humidity Range | 5% to 80% RH |
| Elevation | 0–13,123 ft (0–4,000 m) |
| Compliance | FCC Part 15 Class A, RoHS |
| Warranty | 5 years for rack/service enclosure, 1 year for cooling units |
