Description

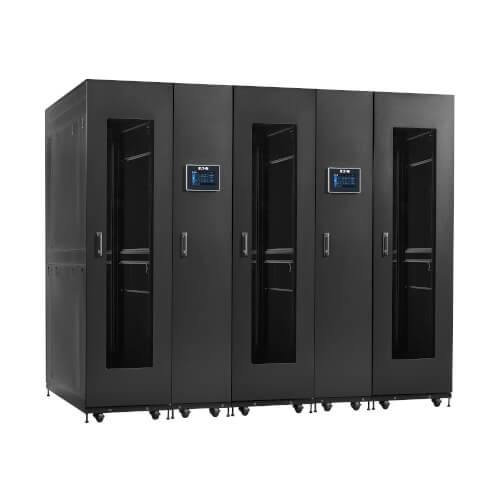

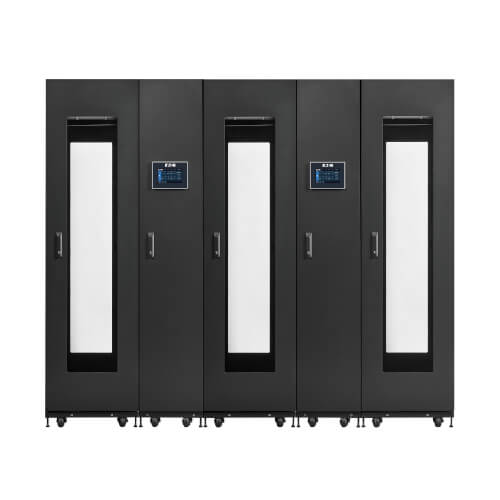

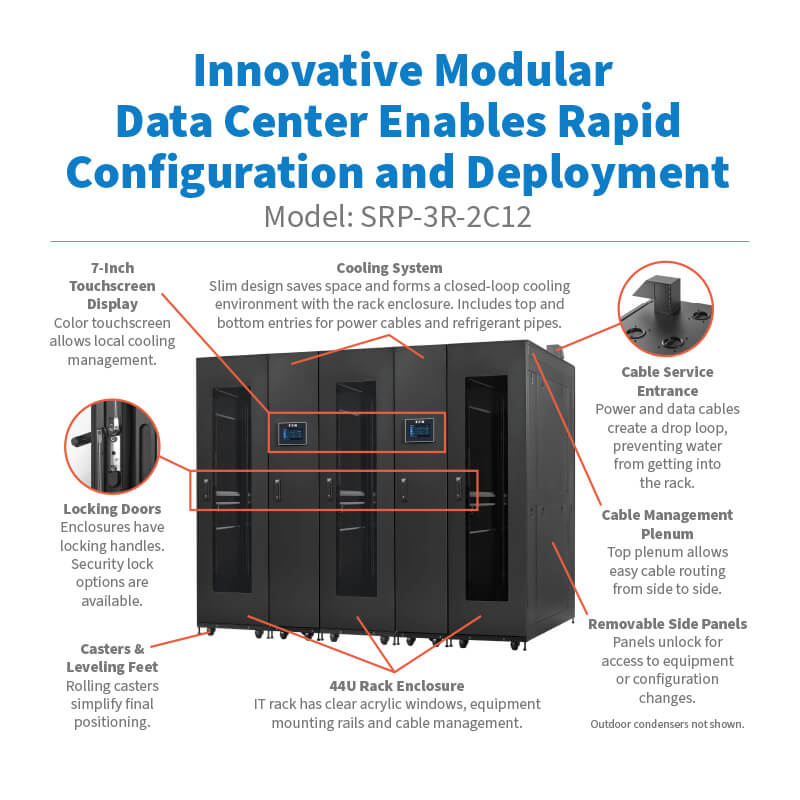

The Eaton SmartRack SRP-3R-2C12 is a pre-configured, self-cooling modular data center solution engineered for fast deployment, reduced cost, and high performance in edge, AI, and industrial environments. This performance-optimized POD (Performance Optimized Data Center) includes three 44U IT rack enclosures and two integrated 12 kW in-row cooling units (SRCOOLDXRW12), forming a closed-loop cooling system for efficient thermal management. Built-in cable management, IP54 protection, removable locking panels, and pre-installed casters ensure ease of installation, equipment access, and mobility.
Ideal for manufacturing floors, warehouses, and edge computing deployments, the SRP-3R-2C12 arrives ready for immediate population and powering up—no lengthy construction or setup required. Integrated local touchscreen and remote access provide real-time thermal monitoring and control.
| Specification | Details |
|---|---|
| Model Number | SRP-3R-2C12 |
| Rack Enclosures | 3x 44U IT rack enclosures with clear acrylic doors |
| Cooling Units | 2x 12 kW SRCOOLDXRW12 in-row precision cooling units |
| Cooling Capacity | 25.6 kW (87,372 BTU/h) total |
| Cooling Type | Active, Direct Expansion (DX), R410A refrigerant |
| Airflow | 2,950 CFM |
| Control Interface | 7-inch color touchscreen with WEBCARDLXMINI remote management |
| Enclosure Dimensions (HWD) | 95.07 x 104.88 x 64.88 in. (241.48 x 266.40 x 164.80 cm) |
| Max Device Depth | 48.7 in. (123.7 cm) |
| Weight (Total) | 3384 lbs. (1,534.96 kg) |
| Weight Capacity (Per Rack) | 3,000 lbs. (1,361 kg) |
| Operating Temp Range | 64° to 104°F (18° to 40°C) |
| Humidity Range | 5% to 80% RH |
| Noise Level | < 68 dBA |
| Ingress Protection Rating | IP54 |
| Power Input | 208V, 60 Hz, 3-wire / 4-wire + Ground |
| Condensate Drain Pumps | 9 L/hr per unit |
| Compliance | FCC Part 15 Class A, RoHS |
| Warranty | 5-year limited on racks; 1-year limited on cooling units |
| Included Components | 3x 44U IT rack enclosures, 2x cooling enclosures, pre-installed casters |
