Description

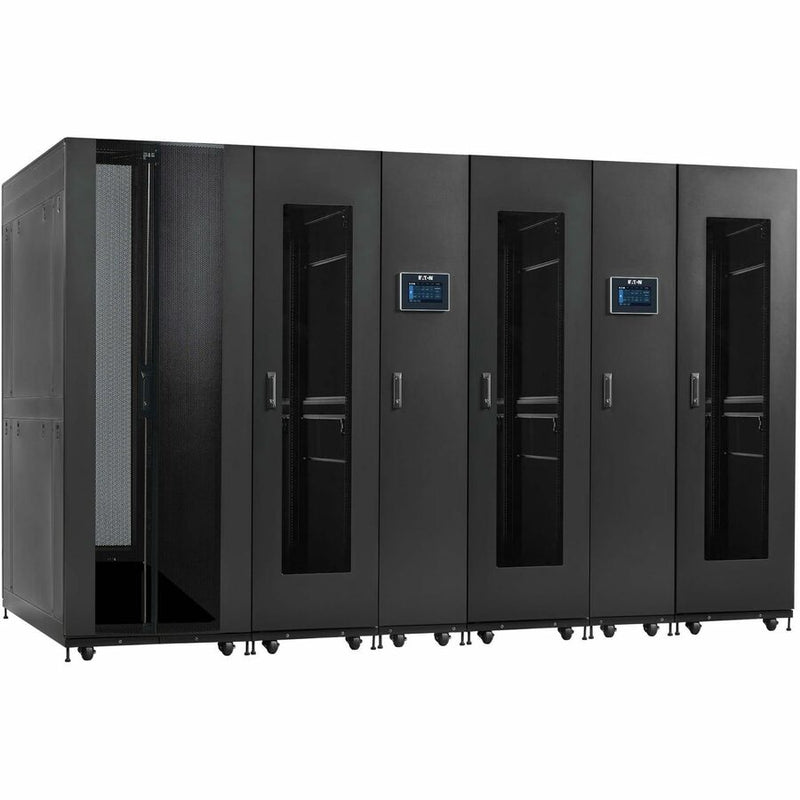

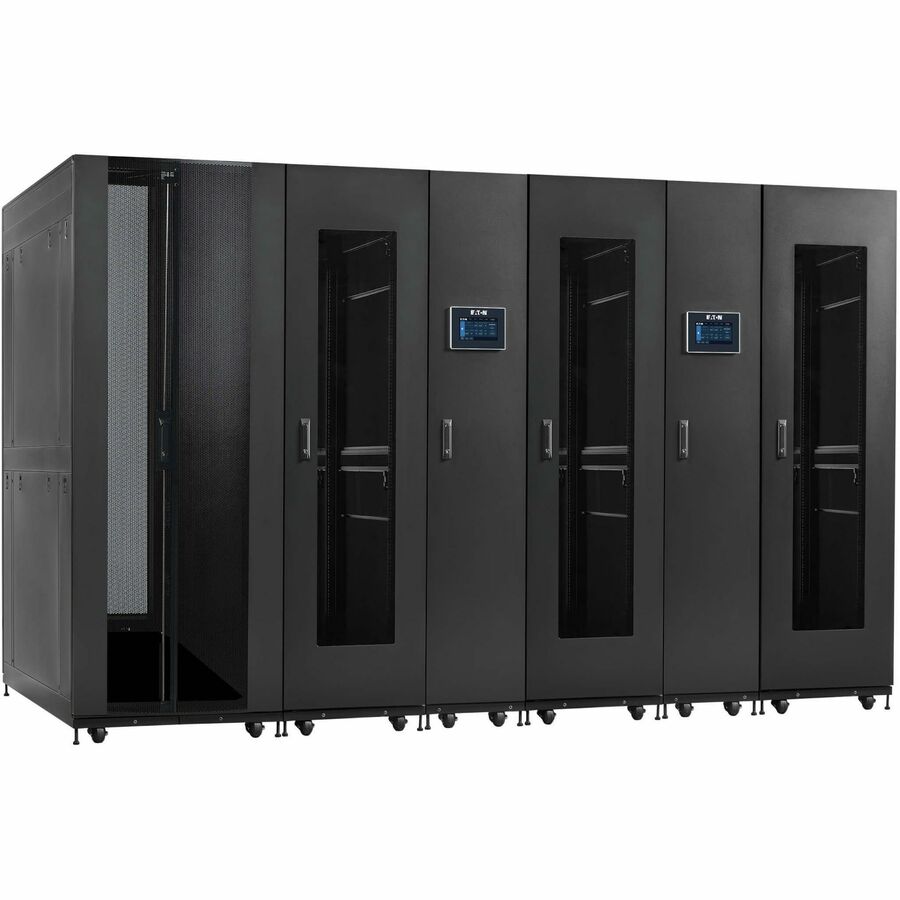

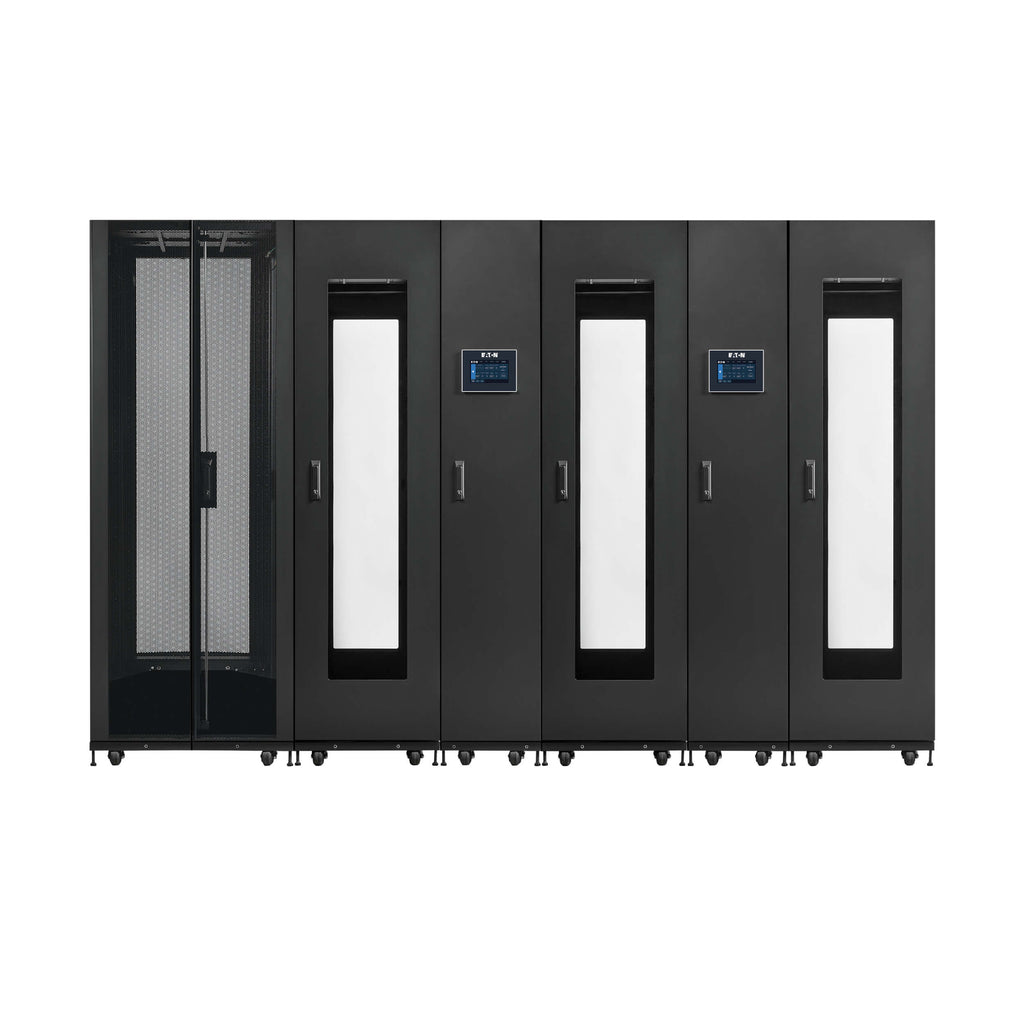

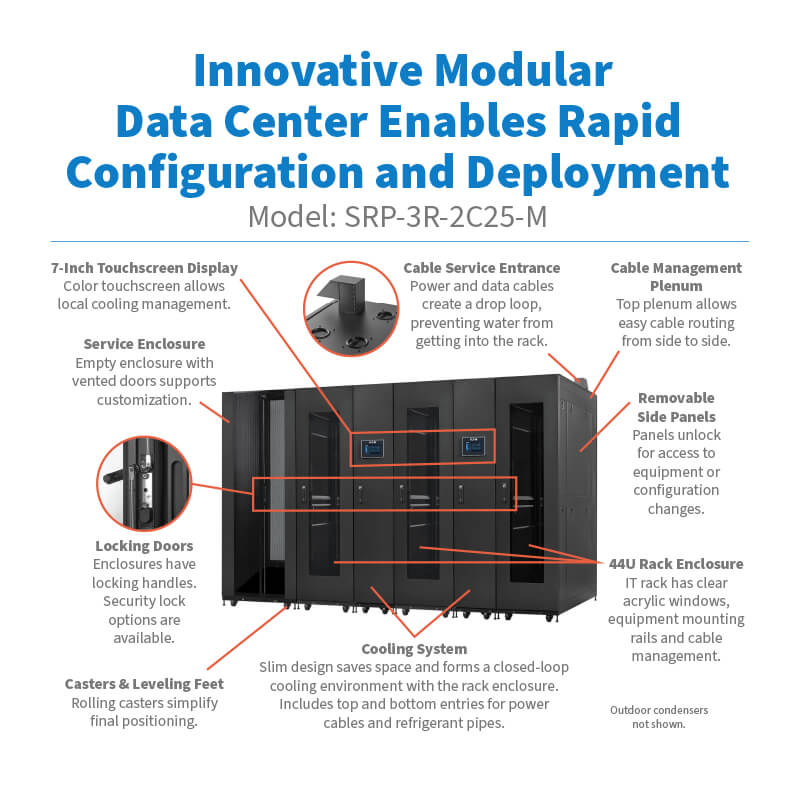

The Eaton SRP-3R-2C25-M SmartRack® Modular Data Center is a self-contained, scalable edge solution that integrates IT rack, cooling, and service enclosures into a performance-optimized POD. Featuring three 44U IT racks and two high-efficiency 25 kW in-row cooling units, this configuration supports 132U of rack-mounted equipment within a closed-loop environment. The additional service enclosure is fully customizable for power distribution, UPS, or fire suppression systems.
Engineered for fast deployment, transportability, and efficient space utilization, this solution offers reliable thermal management, environmental protection, and physical security—ideal for edge computing, AI, manufacturing, or remote infrastructure. Built-in casters, IP54-rated protection, and remote management via WEBCARDLXMINI simplify installation, operation, and monitoring.
| Specification | Details |
|---|---|
| Model Number | SRP-3R-2C25-M |
| Rack Configuration | 3x IT Rack Enclosures (44U each) |
| Cooling Units | 2x 25 kW In-Row Cooling Units (SRCOOLDXRW25) |
| Service Enclosure | 1x 800 mm Wide, Customizable |
| Cooling Type | Direct Expansion (DX), Closed-Loop, Active Cooling |
| Cooling Capacity | 51.6 kW / 176,000 BTU |
| Airflow | 5,900 CFM |
| Refrigerant | R410A |
| Input Voltage / Frequency | 208V, 60 Hz |
| Input Connection Type | 3-wire / 4-wire + Ground |
| Dimensions (H x W x D) | 95.07 x 136.61 x 64.88 in. (241.48 x 346.99 x 164.80 cm) |
| Max Device Depth per Rack | 48.7 in. (123.7 cm) |
| Weight (Total) | 4,200 lbs (1,905.09 kg) |
| Weight Capacity per Rack | 3,000 lbs (1,361 kg) |
| Operating Temp / Humidity | 18°–40°C, 5–80% RH |
| IP Rating | IP54 |
| Noise Level | < 68 dBA |
| Display & Management | 7" Color Touchscreen + WEBCARDLXMINI |
| Compliance | FCC Part 15 Class A, RoHS |
| Warranty | 1-Year Cooling Units, 5-Year Rack/Service Enclosure |
