Description

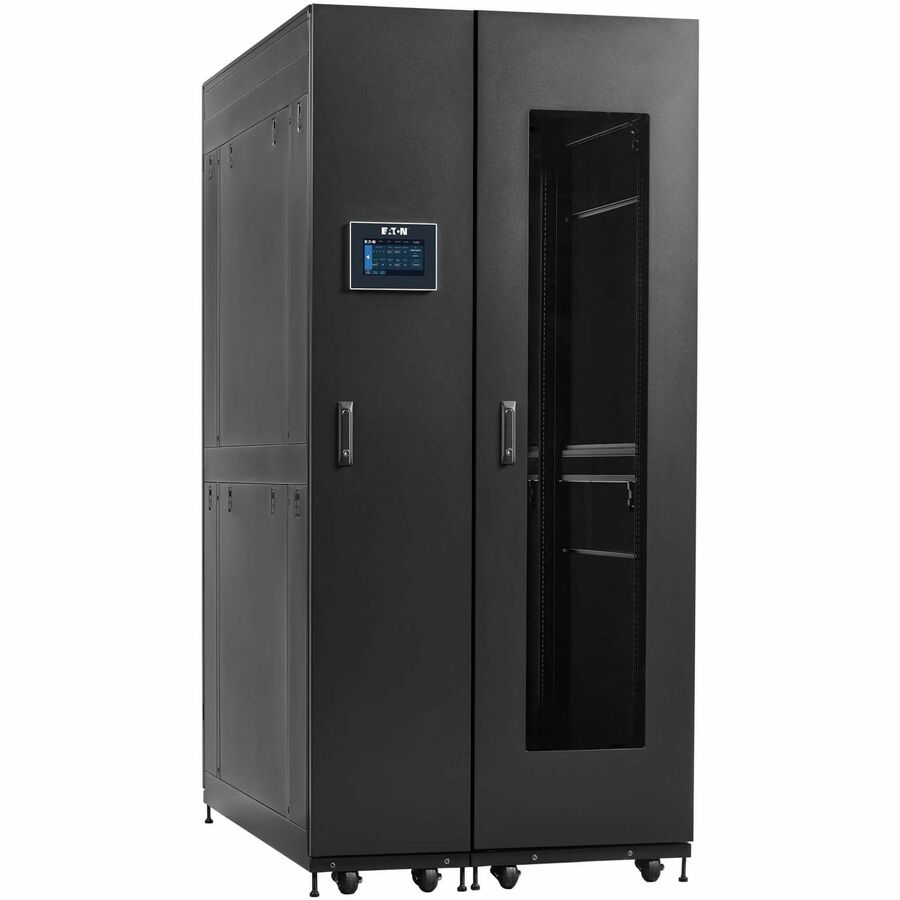

The Eaton SRP-R-C25 SmartRack Modular Data Center is a compact, pre-configured, and scalable solution engineered to support rapid deployment of edge computing, AI, and industrial IT infrastructure. This modular POD (Performance Optimized Data Center) combines a 44U IT rack with a 25 kW precision in-row cooling system, forming a self-contained, closed-loop environment that protects equipment and optimizes energy efficiency.

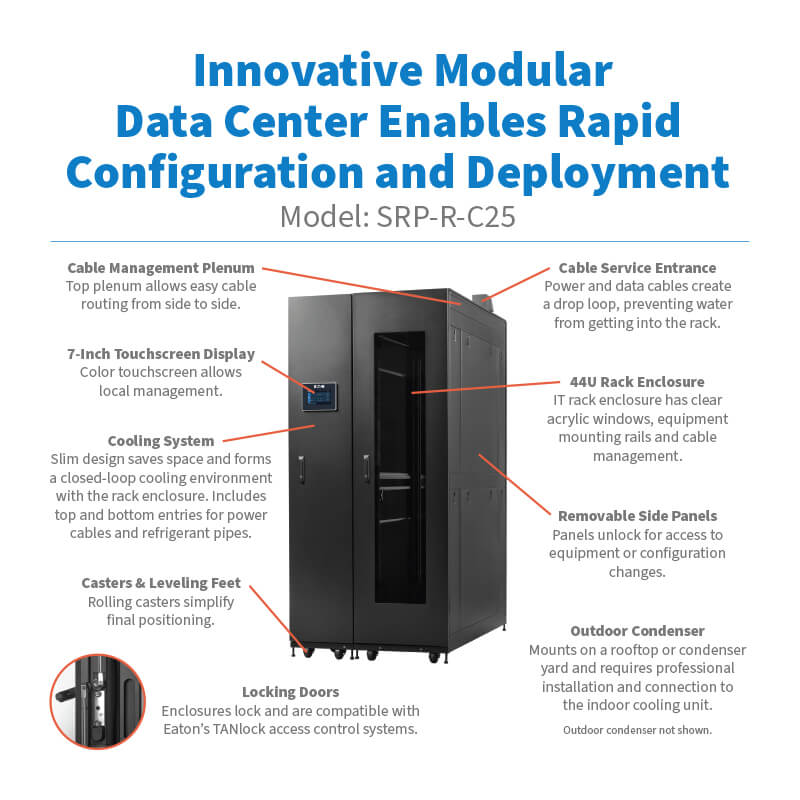

With a locking enclosure, user-friendly touchscreen interface, remote monitoring via network card, and transport-ready casters, the SRP-R-C25 offers hassle-free setup, enhanced cooling performance, and robust protection from environmental factors. Ideal for factory floors, warehouses, and remote installations.
| Category | Details |
|---|---|
| Model Number | SRP-R-C25 |
| Rack Capacity | 44U (IT Rack Enclosure) |
| Cooling Capacity | 25.8 kW (88,000 BTU), In-Row Active DX System (SRCOOLDXRW25) |
| Cooling Type | Direct Expansion (DX), R410A Refrigerant |
| Airflow | 2,950 CFM |
| Display | 7-inch Color Touchscreen (LCD) |
| Network Monitoring | Built-in WEBCARDLXMINI |
| Unit Dimensions | 95.07 x 40.39 x 64.88 in (241.48 x 102.59 x 164.80 cm) |
| Max Device Depth | 48.7 in (123.7 cm) |
| Weight | 1,447 lbs. (656.35 kg) |
| Weight Capacity | 3,000 lbs. (1,361 kg) |
| Power Input | 208V, 3-wire / 4-wire + Ground, 60 Hz |
| Operating Temp | 64°F to 104°F (18°C to 40°C) |
| Storage Temp | -40°F to 140°F (-40°C to 60°C) |
| Operating Humidity | 5% to 80% RH |
| Ingress Protection | IP54 |
| Noise Level | < 68 dBA |
| Compressor Type | Rotary, Inverter Driven |
| Pre-installed Casters | Yes |
| Certifications | FCC Part 15 Class A, RoHS |
| Warranty | 5-Year Rack Enclosure, 1-Year Cooling Unit |
