Description

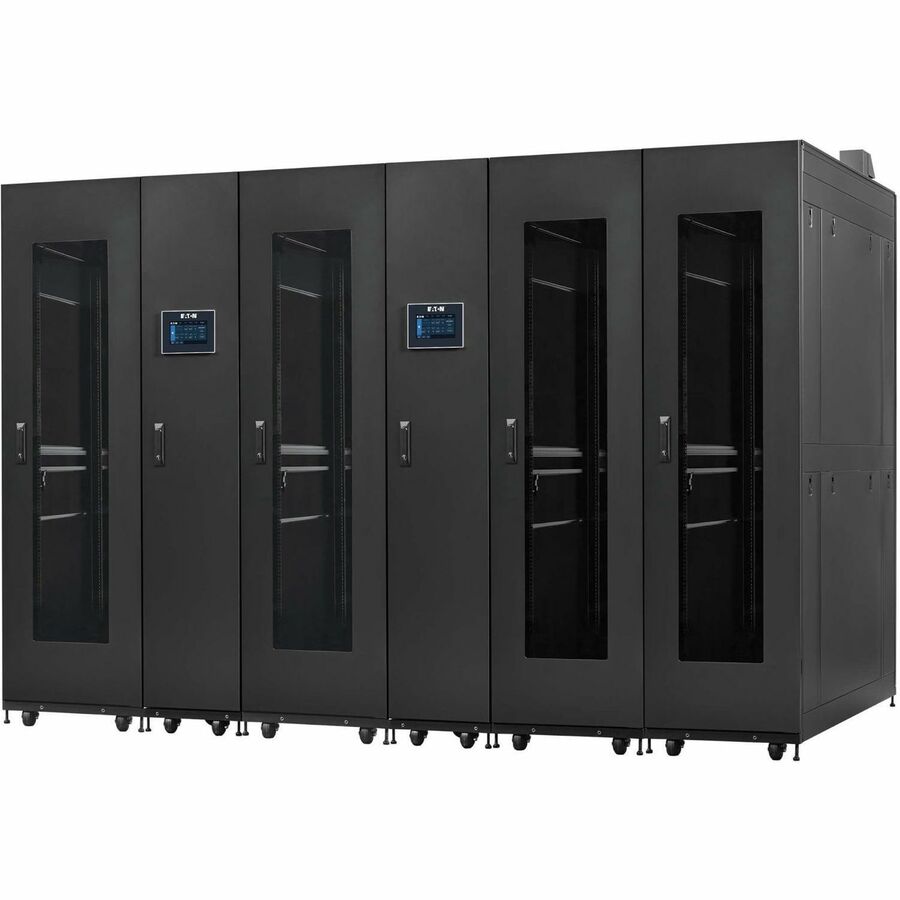

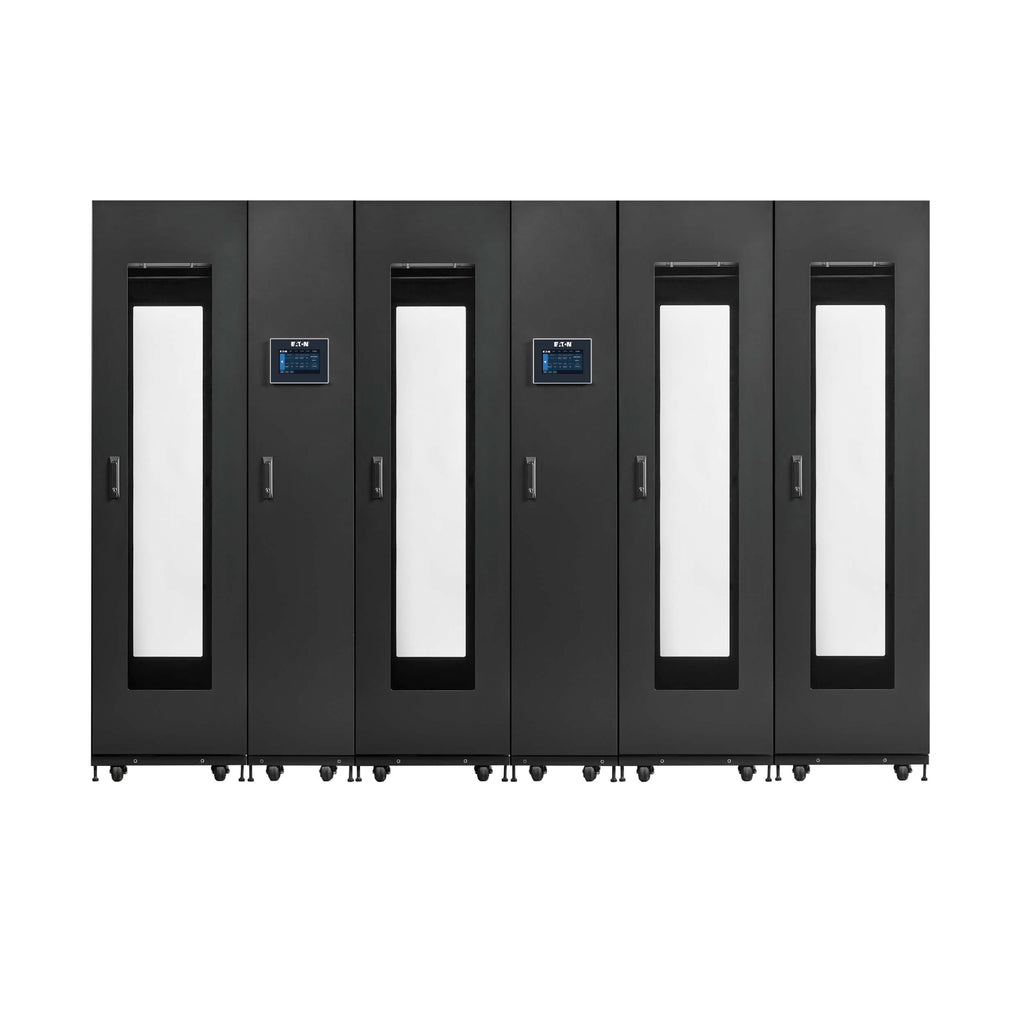

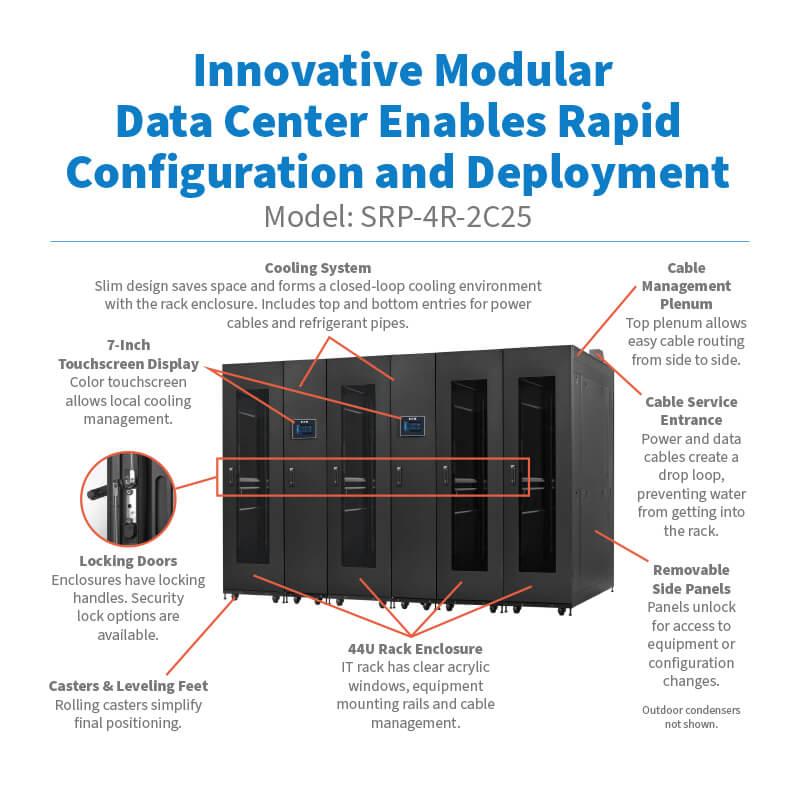

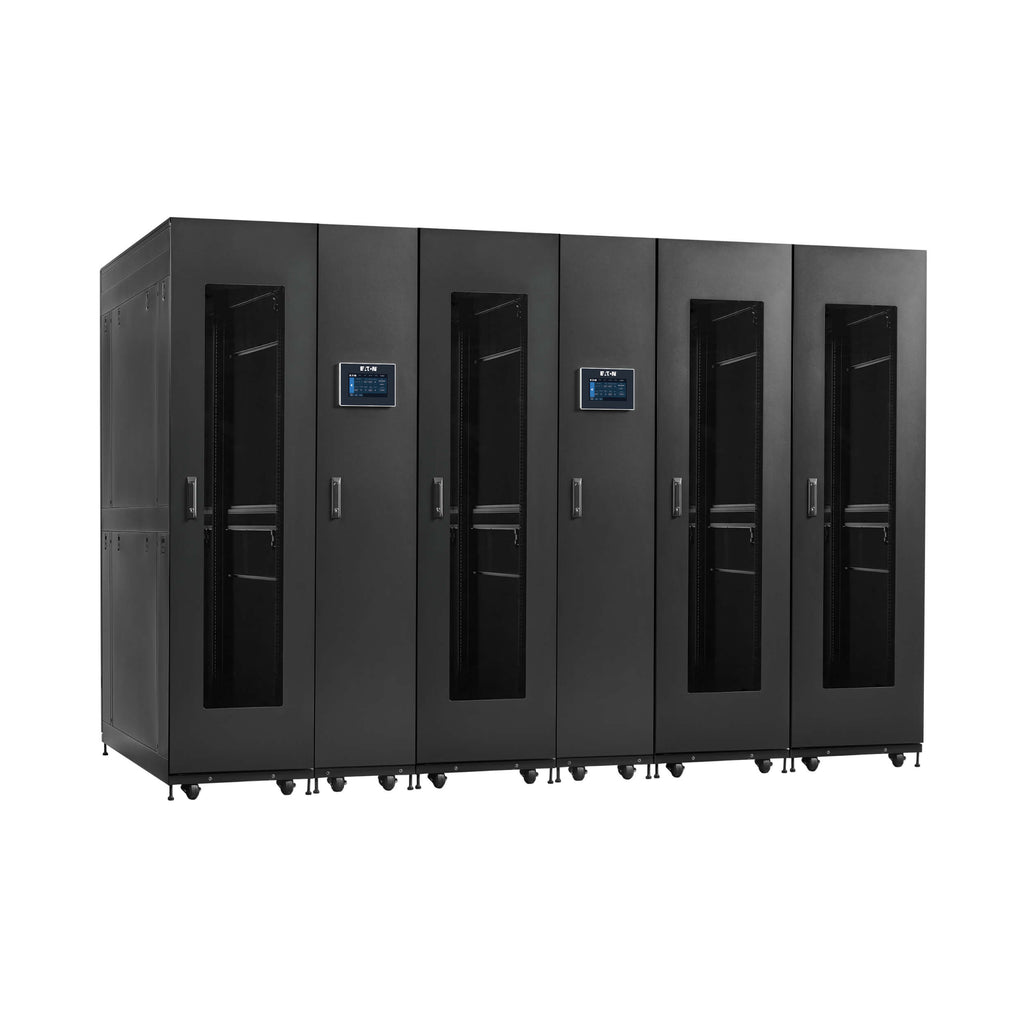

The Eaton SmartRack SRP-4R-2C25 is a scalable, self-cooling modular data center designed to meet the demands of edge computing, AI, and high-performance applications. This pre-configured POD solution includes four 44U IT rack enclosures and two in-row 25 kW cooling units (SRCOOLDXRW25) in a closed-loop cooling design for optimal airflow and thermal management. Built with durability and efficiency in mind, this system arrives preassembled for rapid deployment and reduced installation costs. Its IP54-rated enclosures with locking doors, built-in cable management, removable side panels, and user-friendly touch display make it a powerful and practical solution for harsh environments.
| Category | Specification |
|---|---|
| Model Number | SRP-4R-2C25 |
| Included Enclosures | 4x IT Rack Enclosures (44U each), 2x Cooling Enclosures |
| Cooling Units | 2x SRCOOLDXRW25 (25 kW each, in-row precision cooling) |
| Cooling Capacity | 176,000 BTU/hr (51.6 kW total) |
| Cooling Type | Direct Expansion (DX), Active Cooling |
| Airflow | 5,900 CFM |
| Refrigerant | R410A |
| Input Voltage | 208V, 3-wire / 4-wire + Ground |
| Input Frequency | 60 Hz |
| Enclosure Dimensions | 95.07 x 128.74 x 64.88 in (HWD) |
| Total Rack Capacity | 176U (4 x 44U racks) |
| Max Device Depth | 48.7 in (123.7 cm) |
| Total Unit Weight | 4,034 lbs (1,829.79 kg) |
| Weight Capacity | 3,000 lbs (1,361 kg) |
| User Interface | 7" Color Touchscreen + WEBCARDLXMINI for remote access |
| Operating Temp Range | 64°F to 104°F (18°C to 40°C) |
| Storage Temp Range | -40°F to 140°F (-40°C to 60°C) |
| Operating Humidity | 5% to 80% RH |
| Noise Level | < 68 dBA |
| Ingress Protection | IP54 |
| Compliance | FCC Part 15 Class A (USA), RoHS |
| Warranty | 5-Year Rack Enclosure, 1-Year Cooling Units |

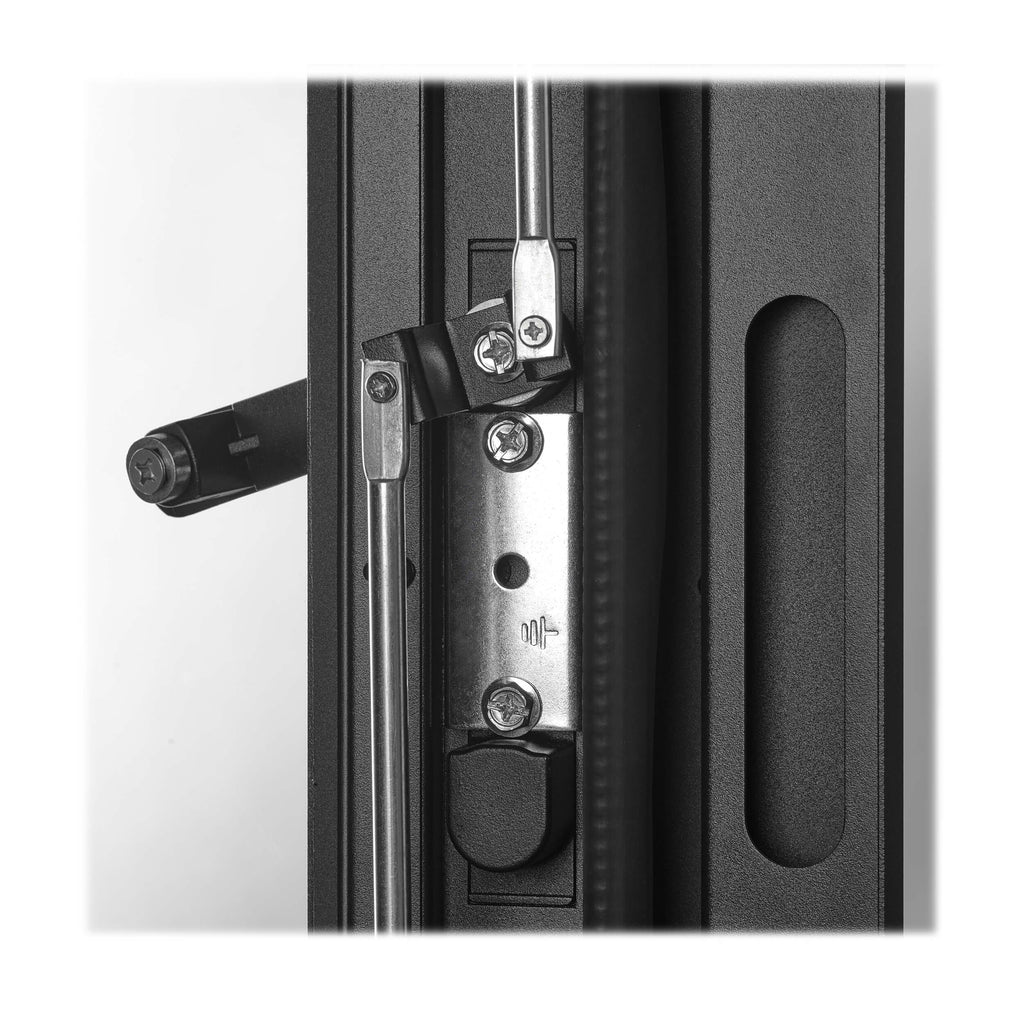

| Special Features | Locking doors with acrylic windows, cable management, pre-installed casters, removable panels |
