Description

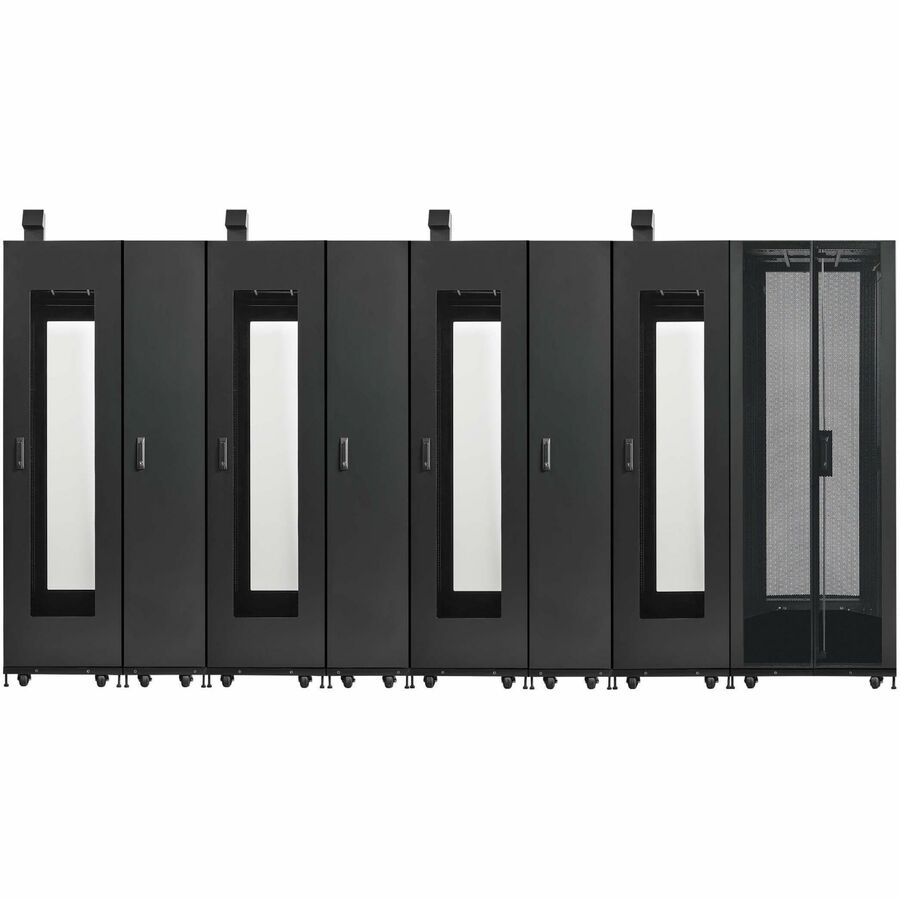

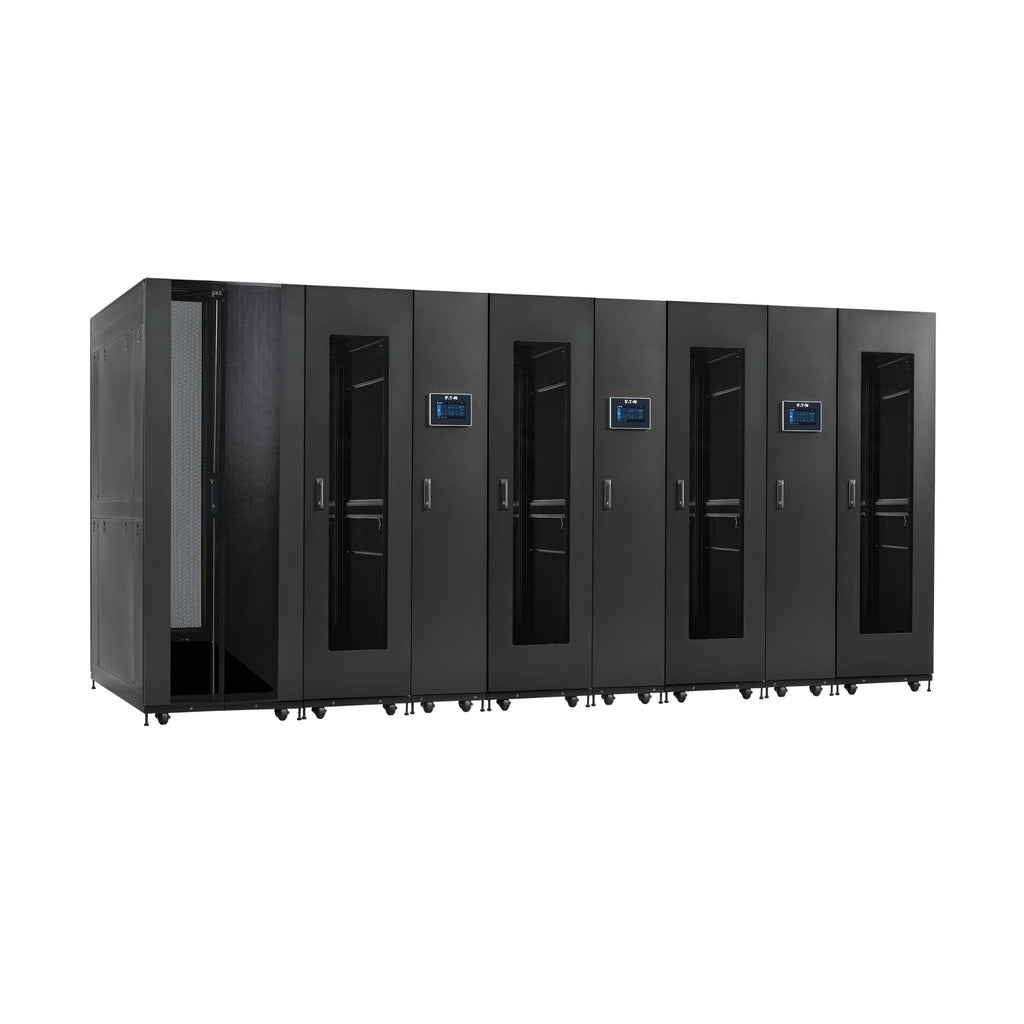

The Eaton SRP-4R-3C12-M SmartRack Pre-Configured Modular Data Center offers a scalable, self-contained solution for edge computing, AI, and high-density IT environments. This integrated POD (Performance Optimized Data Center) includes four 44U IT rack enclosures, three 12kW in-row cooling units, and a customizable service enclosure, providing a rapid-deployment infrastructure with efficient closed-loop cooling and high equipment protection.

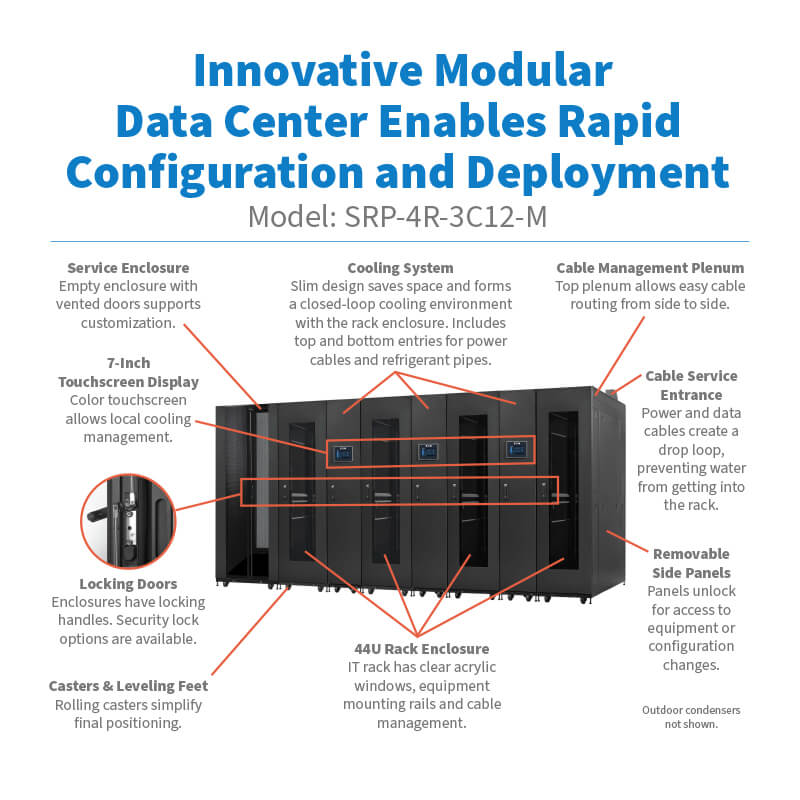

Designed for environments like factories, warehouses, or remote locations, this all-in-one solution minimizes installation time, reduces costs, and allows flexible expansion. Featuring locking doors, IP54 protection, built-in cable management, and remote monitoring via a touchscreen LCD and WEBCARDLXMINI, the SRP-4R-3C12-M is ideal for mission-critical deployments.
| Category | Details |
|---|---|
| Model Number | SRP-4R-3C12-M |
| Rack Units | 4x 44U IT rack enclosures |

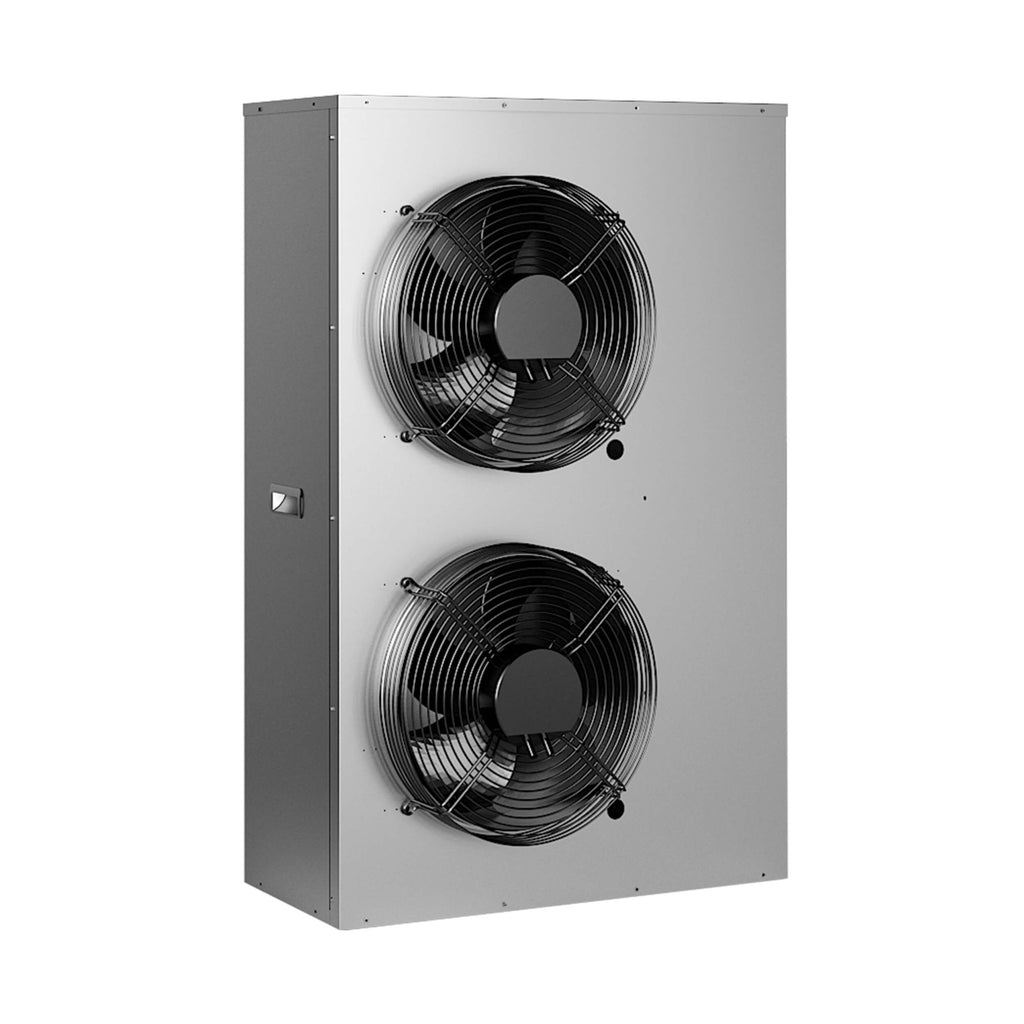

| Cooling Units | 3x 12kW In-Row DX Cooling Units (SRCOOLDXRW12) |
| Service Enclosure | 1x 800mm wide, vented, customizable enclosure |
| Cooling Capacity | 38.4 kW / 131,058 BTU |
| Airflow | 4,425 CFM |
| Cooling Type | Direct Expansion (DX), R410A Refrigerant |
| Input Voltage | 208V, 3-wire / 4-wire + Ground |
| Frequency | 60 Hz (Input & Output) |
| User Interface | 7-inch Color Touchscreen LCD + WEBCARDLXMINI (Remote Access) |
| External Dimensions | 95.07 x 177.24 x 64.88 in (HWD) / 241.48 x 450.19 x 164.80 cm |
| Unit Weight | 5,527 lbs (2,507 kg) |
| Stationary Load Cap. | 3,000 lbs (1,361 kg) |
| Operating Temp. | 64°F to 104°F (18°C to 40°C) |
| Storage Temp. | -40°F to 140°F (-40°C to 60°C) |
| Humidity Range | 5% to 80% RH |
| Ingress Protection | IP54 |
| Noise Level | < 68 dBA |
| Compressor Type | Rotary (Inverter Driven) |
| Casters | Pre-installed for transport positioning |

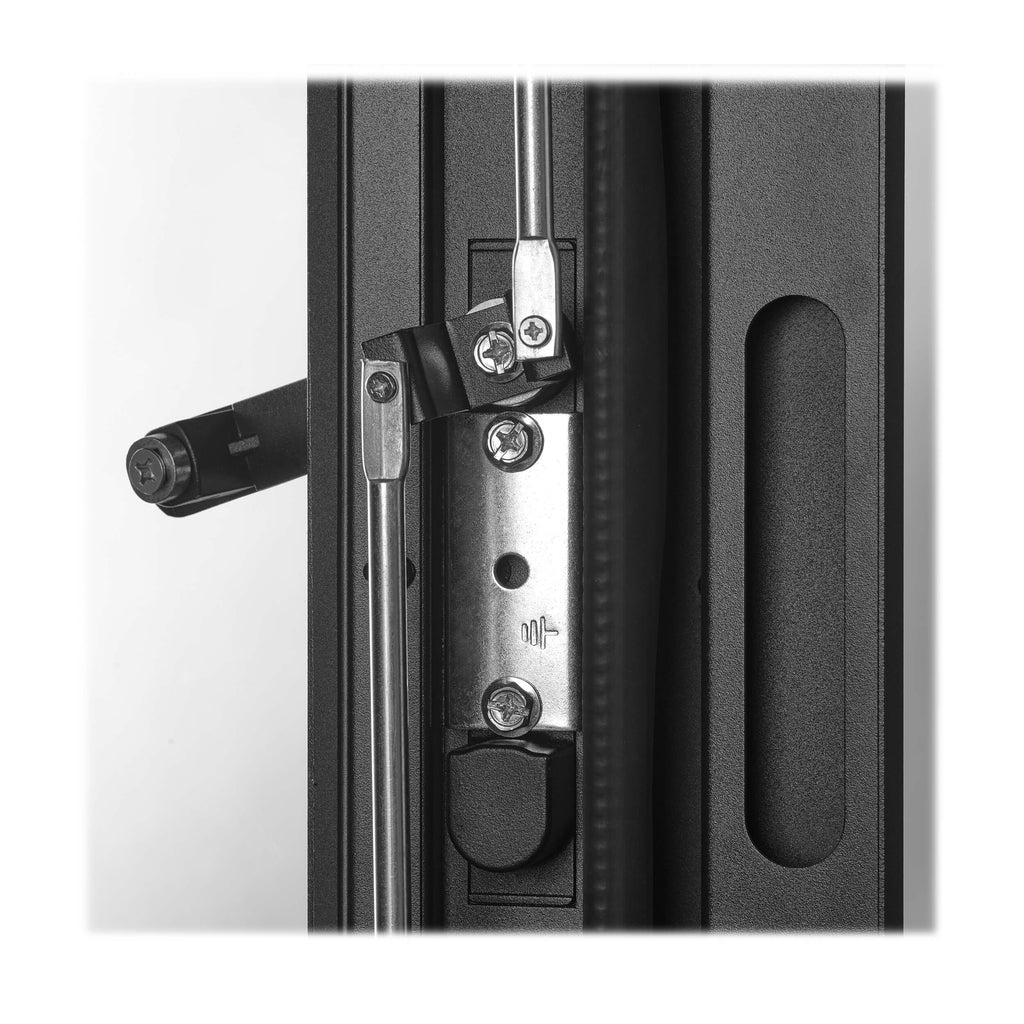

| Rack Door Type | Locking with clear acrylic windows |
| Compliance | FCC Part 15 Class A (USA), RoHS |
| Warranty | 5-Year (Rack & Service Enclosures), 1-Year (Cooling Units) |
