Description

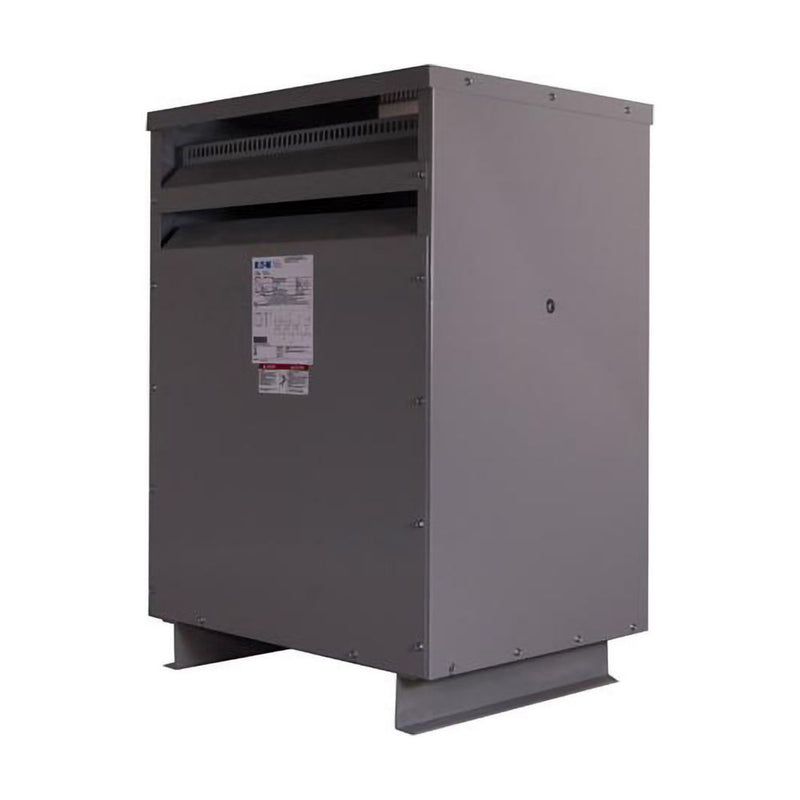

The Eaton V48M22T3016 is a high-efficiency, DOE 2016-compliant general-purpose ventilated transformer designed for industrial and commercial applications. With aluminum windings and a durable NEMA 2 enclosure, this 30 kVA dry-type transformer is built for long-lasting performance in floor or wall-mounted upright installations. The transformer features primary voltage of 480V delta and secondary voltage of 240V delta with a 120V midtap, making it ideal for balanced power distribution in 3-phase systems. It supports precise voltage regulation through dual tap settings and maintains a 150°C temperature rise for dependable operation in demanding environments. Fungus-resistant construction, UL listing, and NEMA ST-20 sound levels ensure superior reliability and safety in any facility.
| Specification | Details |
|---|---|
| Catalog Number | V48M22T3016 |
| Power Rating | 30 kVA |
| Transformer Type | General Purpose, Ventilated, Dry-Type |
| Phase | 3-Phase |
| Primary Voltage | 480V Delta |
| Secondary Voltage | 240V Delta with 120V Midtap |
| Winding Material | Aluminum |
| Efficiency Compliance | DOE 2016 / 10 CFR Part 431 |
| Temperature Rise | 150°C |
| Insulation Class | 220°C |
| Enclosure Rating | NEMA 2 |
| Mounting | Floor or Wall Mount (Upright Only) |
| Tap Configuration | 2 at +2.5%, 4 at -2.5% |
| Frame | FR940 |
| Sound Level | NEMA ST-20 |
| Wiring Connection | 280B |
| Weather Shield | WS58 |
| Certifications | UL Listed |
| Dimensions (L x W x H) | 21.13 in x 24.88 in x 36.88 in |
| Weight | 400 lb |
| Warranty | 1 year from installation / 18 months from shipment |
| UPC | 786680175657 |
