Description

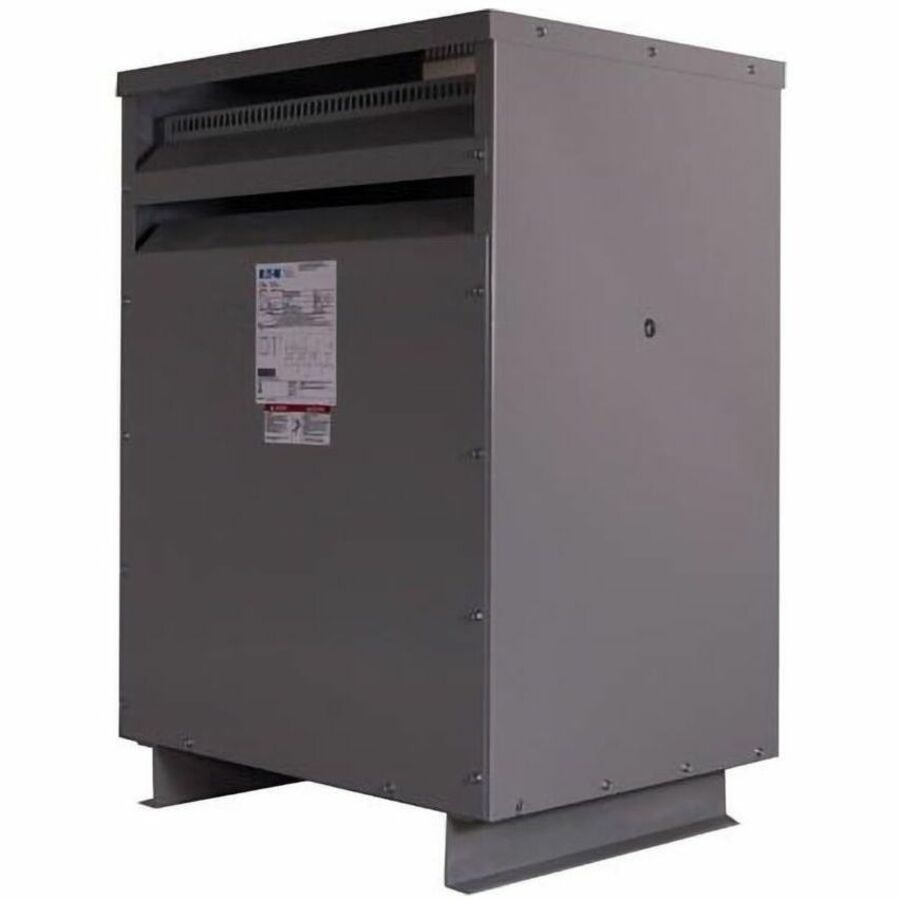

The Eaton V48M34T7516 is a general-purpose, ventilated dry-type transformer designed to meet DOE 2016 efficiency standards. Engineered with aluminum windings and NEMA 2 enclosure, it is ideal for indoor applications in commercial or industrial environments. With primary voltage at 480V delta and secondary voltage at 400Y/231V, this transformer delivers 75 kVA of reliable power. It supports upright mounting on floor or wall and is equipped with 2 taps at +2.5% and 4 at -2.5% for voltage adjustment flexibility. Rated for 150 °C temperature rise and 220 °C insulation, it ensures high performance in demanding conditions. Fungus-proof construction enhances durability, making it suitable for various installation sites.
| Attribute | Details |
|---|---|
| Product Model | V48M34T7516 |
| Brand | Eaton |
| Power Rating | 75 kVA |
| Transformer Type | Energy-efficient dry-type, ventilated |
| Phase | 3-phase |
| Primary Voltage (PV) | 480V delta |
| Secondary Voltage (SV) | 400Y/231V |
| Enclosure | NEMA 2 |
| Coil Material | Aluminum |
| Mounting | Upright only (Floor/Wall) |
| Tap Configuration | 2 at +2.5%, 4 at -2.5% |
| Efficiency Standard | DOE 2016 (10 CFR Part 431) |
| Frequency | 60 Hz |
| Insulation Class | 220 °C |
| Temperature Rise | 150 °C |
| Sound Level | NEMA ST-20 |
| Certifications | UL Listed |
| Compliances | DOE 2016 Efficiency |
| Fungus Proof | Yes |
| Dimensions (L x W x H) | 24 x 30.5 x 43 in |
| Weight | 576 lb |
| Warranty | 1 year from installation / 18 months from shipment |
