Description

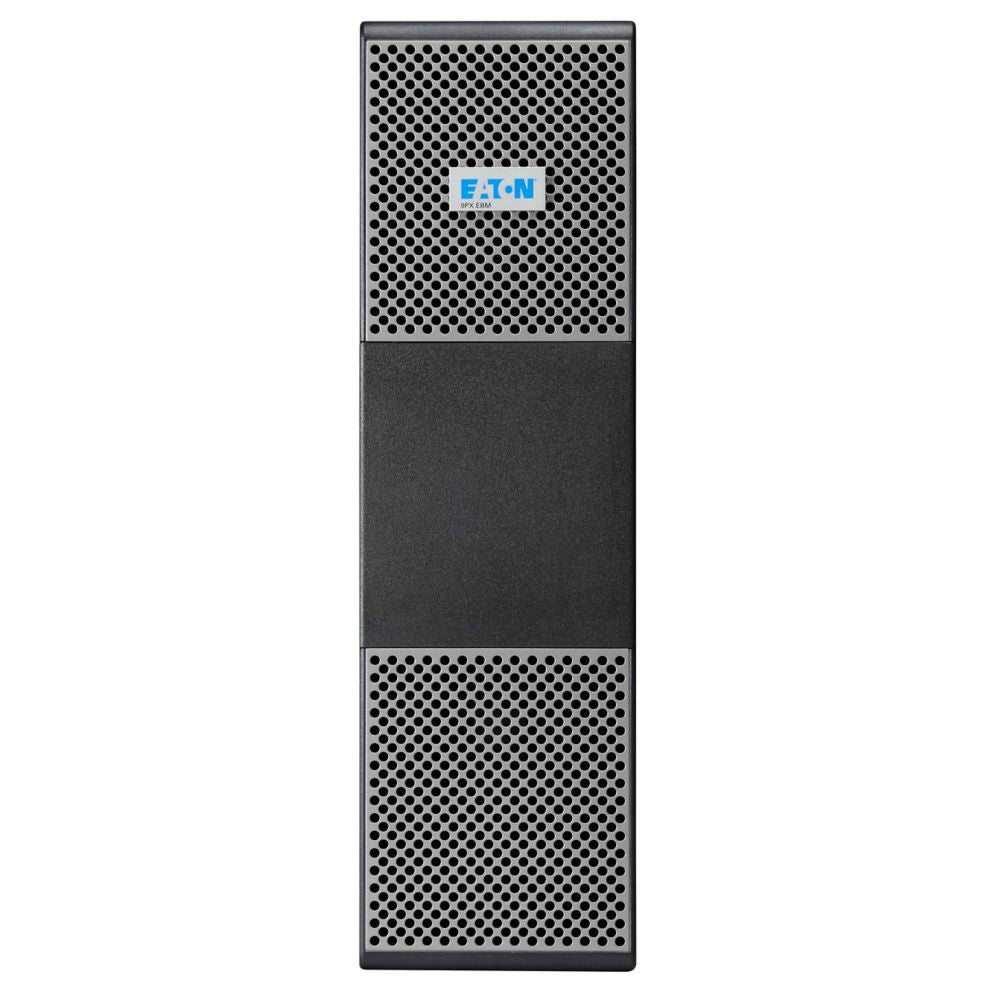

The Eaton SC240RT Supercharger is a high-capacity 240VDC runtime extender designed to significantly increase backup time for Eaton 9PX 8kVA and 11kVA UPS systems. By enabling the connection of up to 12 extended battery modules (EBMs), the SC240RT provides scalable runtime expansion for mission-critical IT, data center, and network infrastructure environments.
Built in a flexible 3U rack/tower form factor, the SC240RT integrates seamlessly into existing installations while maintaining consistent styling with Eaton 9PX UPS systems. It is ideal for organizations that require extended uptime, controlled shutdowns, and enhanced power continuity without replacing their core UPS hardware.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Model Number | SC240RT |
| Accessory Type | UPS Battery Supercharger |
| Function | Extends UPS runtime via additional EBMs |
| Compatible UPS Systems | Eaton 9PX 8kVA & 11kVA models |
| Maximum Supported EBMs | Up to 12 |
| DC Voltage | 240VDC |
| Form Factor | Rackmount / Tower |
| Rack Height | 3U |
| Minimum Rack Depth | 31 in (78.74 cm) |
| Dimensions (H x W x D) | 5.10 x 17.30 x 27.50 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 0–95% non-condensing |
| Certifications | IEC 61000, cUL Listed |
| Compliance | RoHS, FCC |
| Warranty | 3-Year Limited Warranty |
