Description
The Eaton Tripp Lite PDUMH20ATNET is a 1.9kW single-phase switched Automatic Transfer Switch (ATS) rack PDU designed to provide continuous, redundant power for single-corded network and IT equipment. Featuring dual power inputs, the unit automatically switches between primary and secondary sources within milliseconds to maintain uninterrupted operation during power instability or failure.
This intelligent rack PDU includes 16 individually switched NEMA 5-15/20R outlets, allowing remote outlet-level power control, rebooting, and load management. The built-in LX Platform network interface enables secure, Java-free remote monitoring via HTML5 web browser, SNMP, SSH, or Telnet, with real-time alerts and usage data.
Ideal for data centers, network closets, and edge deployments, the PDUMH20ATNET supports redundant UPS configurations, backup generators, and dual utility feeds. Its 1U horizontal rackmount design, digital load display, and TAA compliance make it well-suited for enterprise and government environments requiring high availability and remote power control.
| Category | Specification |
|---|---|
| Product Type | Switched Automatic Transfer Switch (ATS) PDU |
| Brand | Eaton Tripp Lite |
| Model Number | PDUMH20ATNET |
| Power Capacity | 1.9 kW |
| Input Voltage | 120V |
| Input Current | 20A (16A continuous, agency de-rated) |
| Input Phase | Single-Phase |

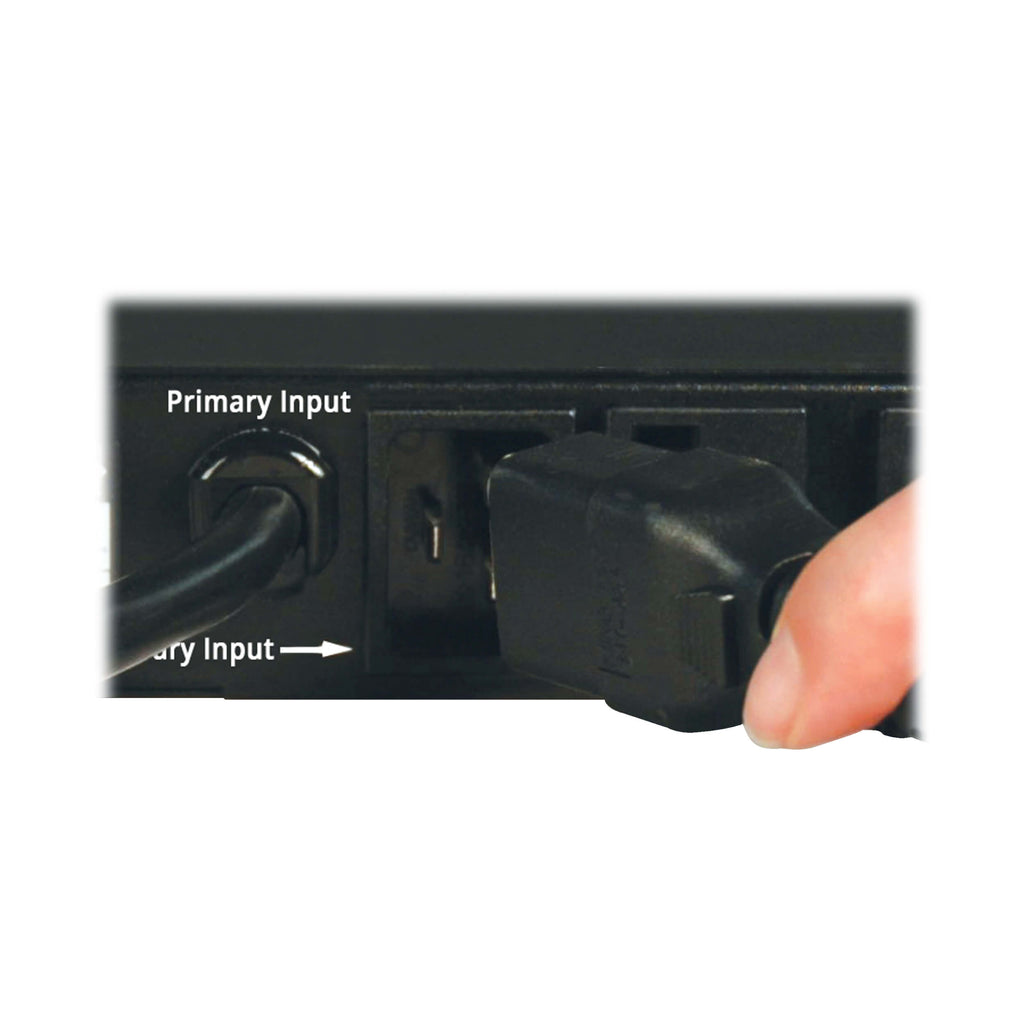

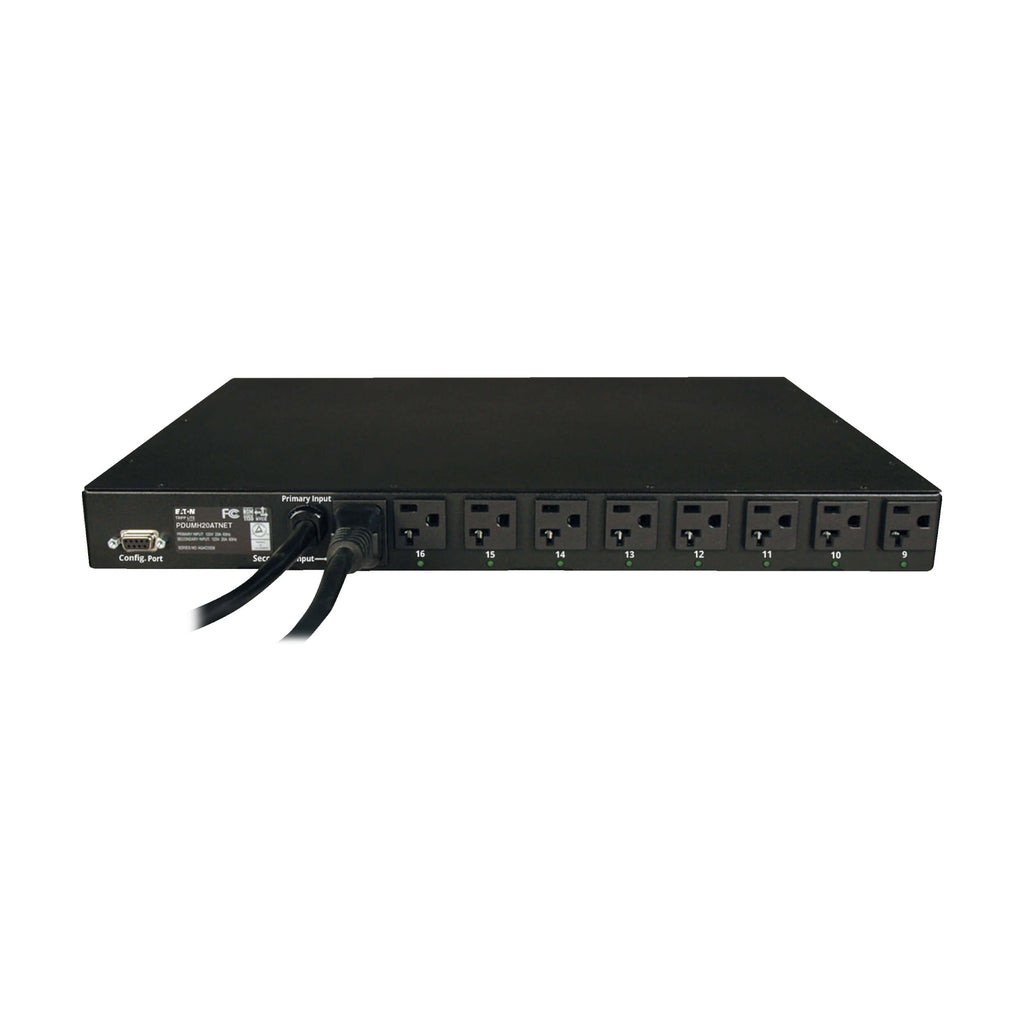

| Input Connections | Dual inputs: L5-20P with 5-20P adapters |
| Input Cord Length | 12 ft (3.6 m) |
| Output Receptacles | 16 × NEMA 5-15/20R |
| Outlet Control | Individually switched |
| Output Voltage | 120V |
| Transfer Time | 2–7 milliseconds |
| Network Interface | LX Platform (HTML5, SNMP, SSH, Telnet) |
| Network Speed | 10/100 Mbps Ethernet |
| Display | Front-panel digital current meter |
| Form Factor | 1U Horizontal Rackmount |
| Rack Depth | 14.5 in (36.8 cm) |
| Material | Metal |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | TAA Compliant |
| Certifications | UL, CSA, FCC Class A, RoHS |
| Warranty | 2-Year Limited Warranty |
